BMX race brake levers: pull ratio, ergonomics and adjustment

This is the only braking component the rider actually touches. A lever that does not match hand size means a finger slipping off at the moment of braking, or a blade that bottoms out against the grip. On a race bike, where you brake late and only once a lap, that detail counts as much as caliper power.

The types of lever

The long-pull lever is the BMX race standard: it pulls roughly twice as much cable for the same blade travel, which is exactly what a V-brake caliper demands. A short-pull lever, inherited from road and cantilever brakes, gives a soft brake and excessive travel on a V-brake. A hydraulic lever, finally, houses a master cylinder and only works with the caliper of its own system. In terms of shape, two-finger blades are the versatile option, while one-finger blades are shorter and leave more room on the grip, a favourite from Expert upwards.

Materials and construction

Body and blade are forged aluminium for durability, or machined from solid to save weight and refine the shape. Higher-end models run the blade on a bearing or a bronze bush rather than a plain pivot, which removes the side play that appears after a few seasons.

Standards and dimensions

• Clamp diameter: 22.2 mm, the standard grip section of a BMX handlebar.
• Cable nipple: barrel type as used on MTB, not to be confused with a pear-shaped road nipple.
• Integrated barrel adjuster, to take up pad wear without touching the pinch bolt.
• Reach adjustment screw, to bring the blade closer to the bar for small hands.

Compatibility to check

A long-pull lever goes with a V-brake caliper or with a cable-actuated disc caliper. For hydraulics, lever and caliper are an inseparable pair: you do not mix brands. Which side you fit it on is free in BMX Race, since only the rear brake is present; choose the hand that feels natural and keep that habit from one bike to the next. Remember the assembly order on the bar, too: the lever goes on before the grips, unless you run lock-on grips.

Choosing by rider category

In Micro, Mini and Junior, favour a light, low-effort lever with a reach screw so the blade stays within reach of two fingers without letting go of the bar. In Expert and Expert XL, hands grow: a one-finger lever frees up space on the grip. In Pro, Pro XL and Cruiser, riders look for blade stiffness and a well-calibrated pull ratio to modulate strong braking without locking the rear wheel.

The brands available

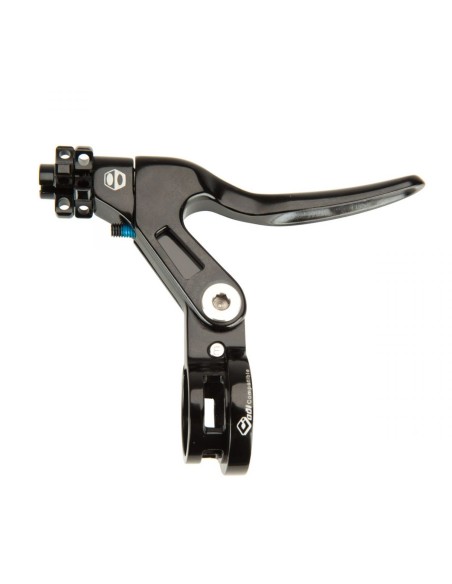

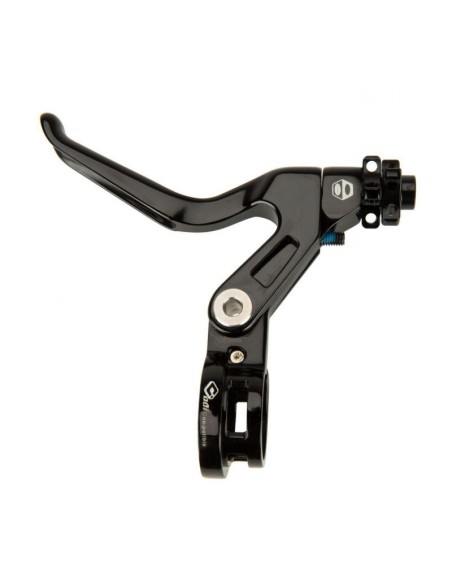

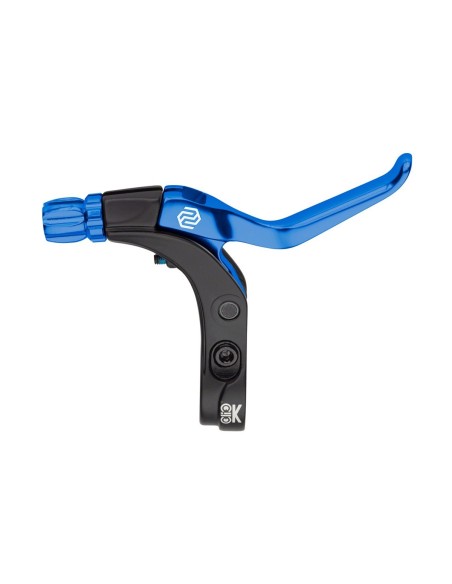

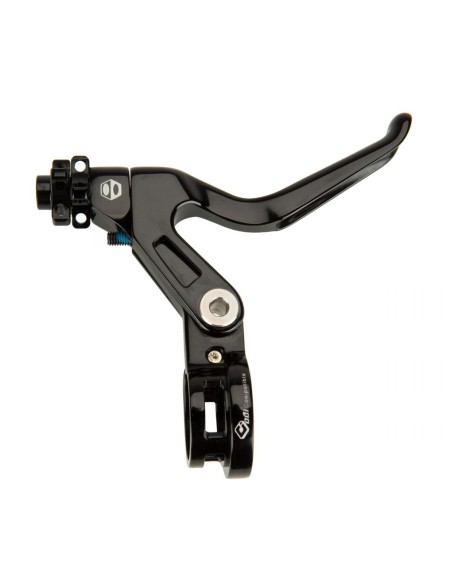

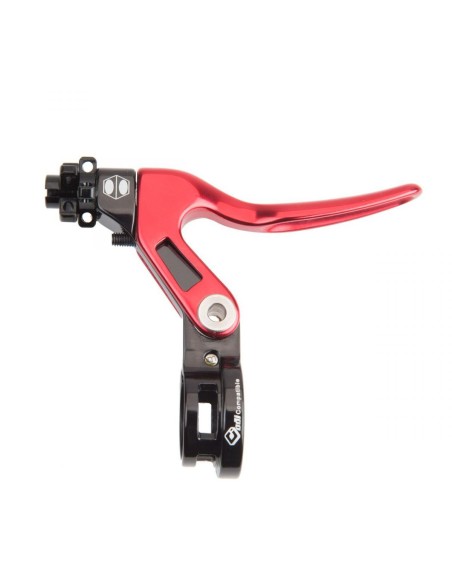

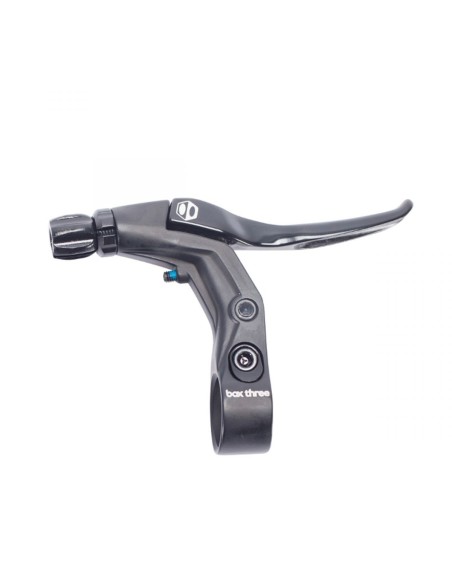

Promax covers every hand size with an excellent price-to-reliability ratio. Box Components stands out on machining and pivot precision. Insight is strong on compact versions for the smaller categories. Tangent and Elevn offer light, competition-focused levers.

Maintenance and replacement

A lever should be stripped, cleaned and regreased at the pivot once a season. After a crash, check that the blade is still straight and that there is no crack around the clamp: a bent blade is replaced, not straightened. While you are there, fit a new brake cable, which is often already damaged at the nipple.

The BMX RACING advice

Give us the rider's age and category along with your brake type, and we will point you to the right reach and the right pull ratio. As a multi-brand shop, we compare ranges rather than defend a single one. Dispatched within 24 to 72 hours.
