BMX race forks: steerer, axle and offset are the deciding dimensions

The fork takes the landing loads off every jump, the side load through the berms and the full weight transfer as you leave the gate. Three dimensions decide the choice: steerer type, front axle standard and offset. Mismatched to your frame or your front hub, a fork simply will not fit.

Aluminium or carbon: what the material changes

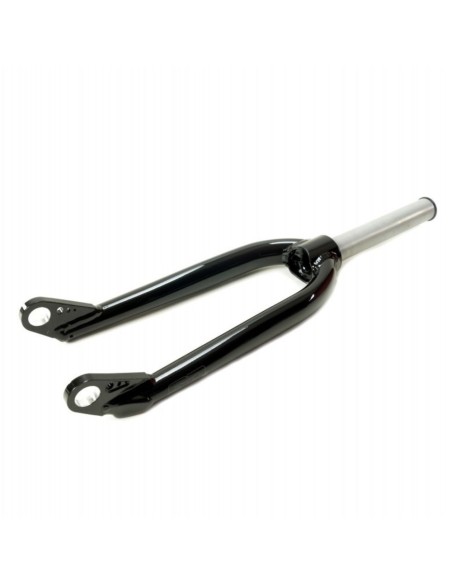

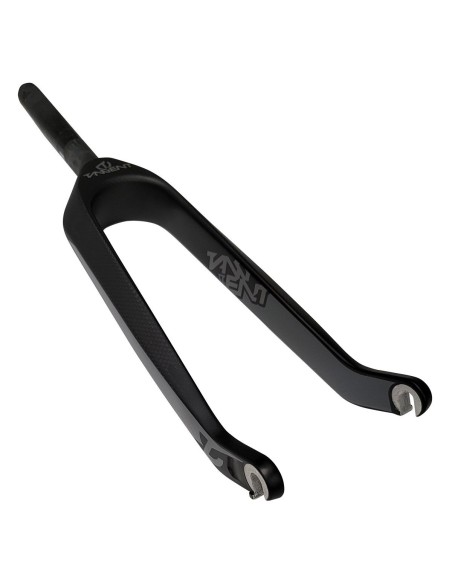

Forged aluminium forks (6061, 7005) remain the reference for training and the younger classes: tough, forgiving in a crash and cheap to replace. Monocoque carbon takes weight off the front of the bike and filters part of the track vibration, but its steerer demands a precise method: an expander plug instead of a star nut, a stem with no sharp edge in the clamping zone, and strict respect for the manufacturer's torque figures.

Straight 1"1/8 or tapered steerer

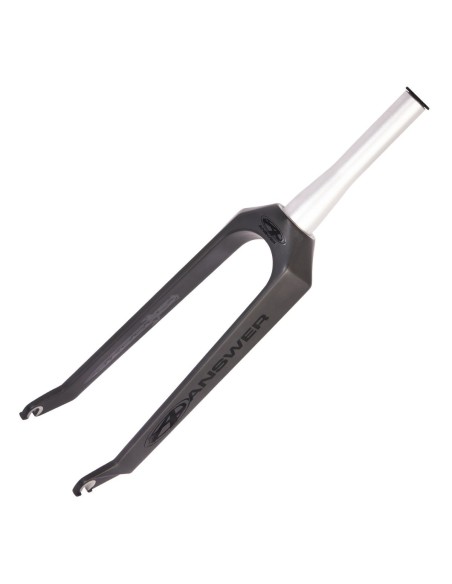

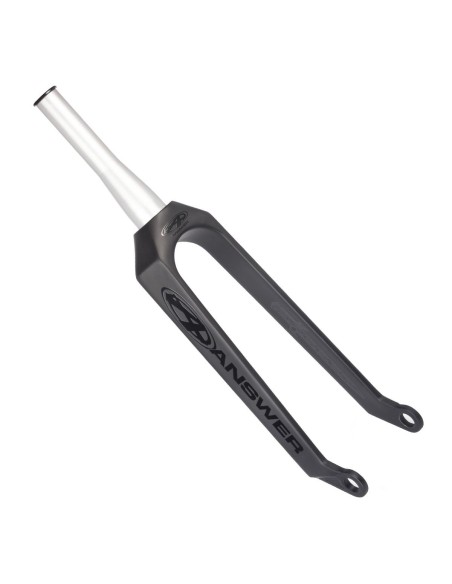

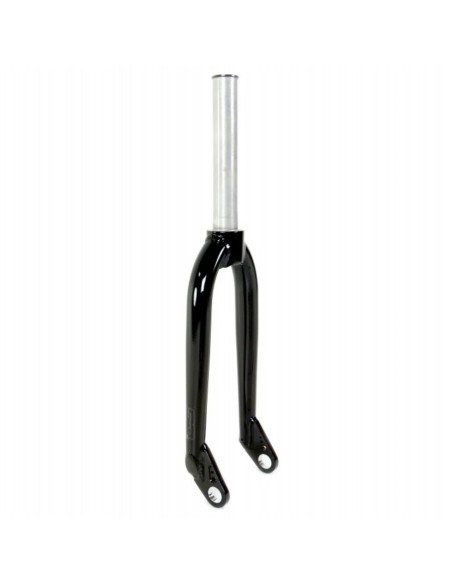

Two standards coexist in BMX race. The straight 1"1/8 steerer (28.6 mm) fits the majority of frames. A tapered steerer runs from 1"1/8 at the top to 1.5" at the bottom and needs a head tube built for it, with a 51.8 mm lower bearing. Steerers ship over-length: cut to size once you have settled your spacer stack. Check the match with your BMX headset before you start the build.

10, 15 or 20 mm axle: hub compatibility

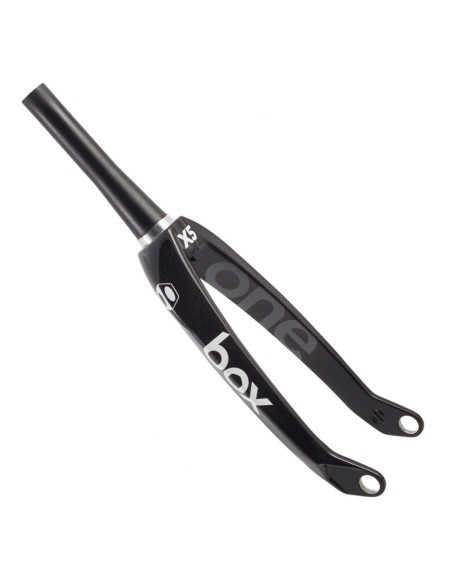

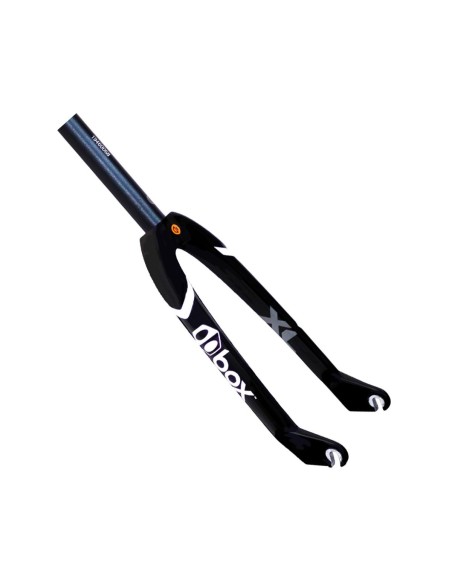

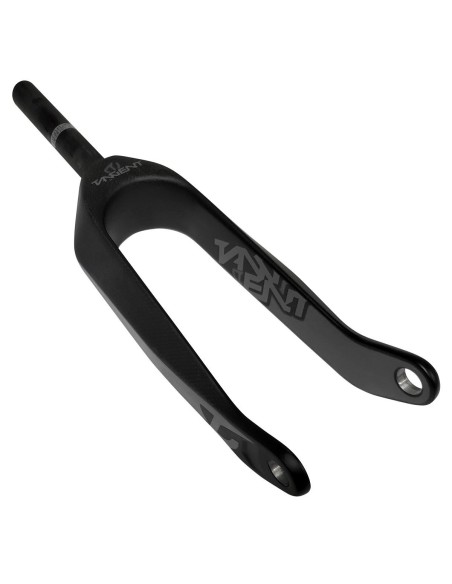

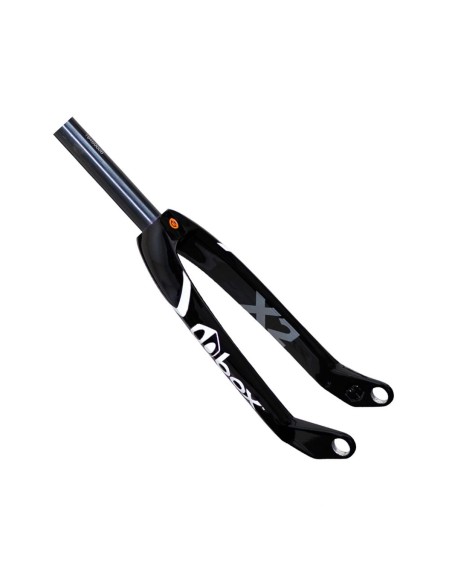

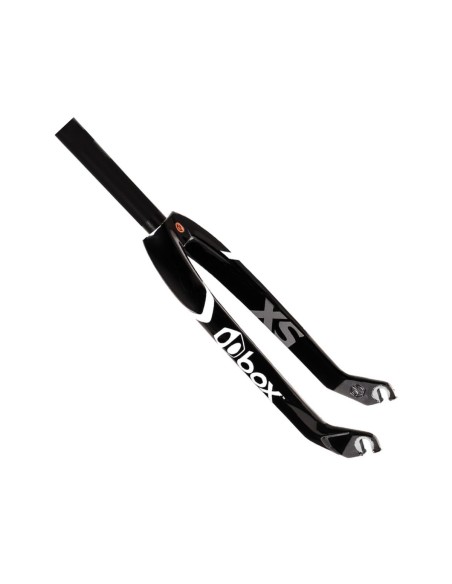

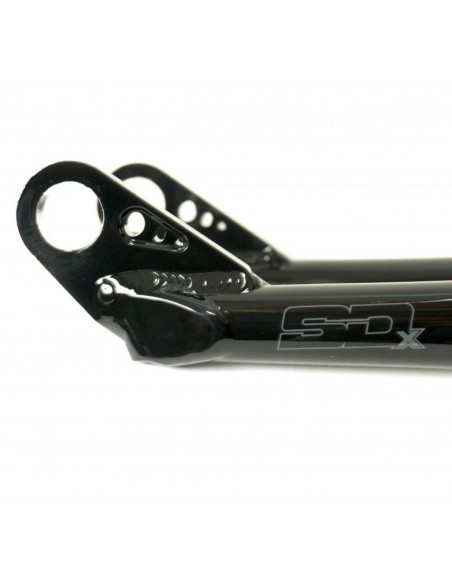

Open 10 mm (3/8") dropouts are the most widespread standard, at 100 mm front spacing. Forks aimed at the Pro classes take a 15 or 20 mm through-axle, noticeably stiffer under gate loads. That choice commits your hub: a 10 mm hub will not go into a 20 mm fork without the adaptor kit supplied by the brand. Note your wheel axle before ordering.

Offset, length and wheel size

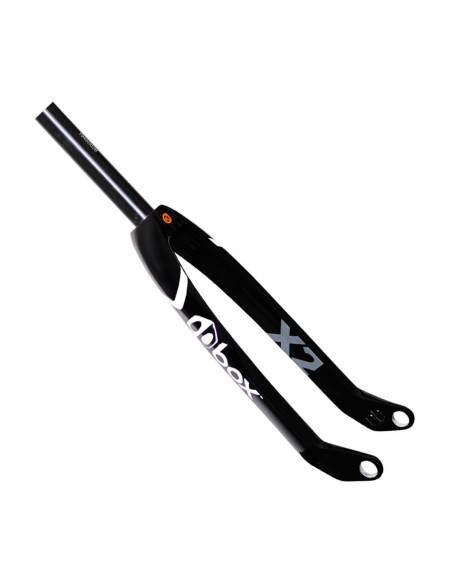

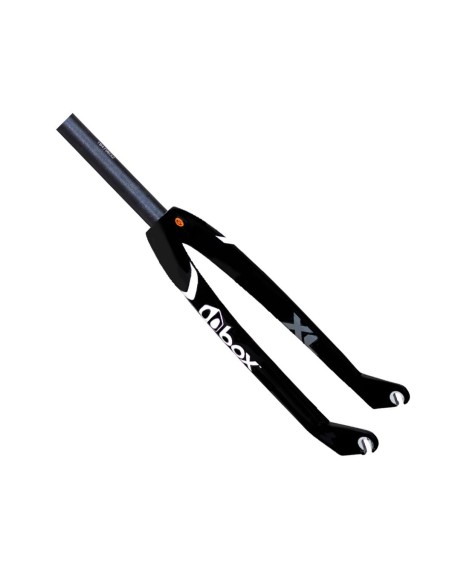

Offset (rake) on a 20-inch fork usually sits between 25 and 32 mm. A generous offset makes the steering quick through the berms; a reduced offset settles the bike in a straight line at speed. Fork length follows wheel size: 18" for Micro, 406 or 451 rims in 20", 507 rims for the 24" Cruiser. A Cruiser fork is longer and is not a substitute for a 20" fork.

Front braking and tyre clearance

Most BMX race forks have no brake bosses: the front brake is not used in racing. Some references keep V-brake mounts or a disc tab for leisure or Cruiser use. Check tyre clearance too: a fork cut for 20 x 1-1/8" will not take a 20x1.75 without rubbing.

Which fork for which class?

In Micro, Mini and Junior, an aluminium fork with 10 mm dropouts is enough: the bike stays light, breakages cost little and the rider grows fast. In Expert, moving to carbon makes sense once training volume and the number of motos go up. In Pro, Pro XL and Cruiser, a 15 or 20 mm through-axle combined with a carbon structure delivers the stiffness riders look for when pedalling out of the saddle.

The fork brands available

Inspyre develops carbon forks built for competition. Chase covers Mini through to Pro XL. Box Components holds the ground on affordable aluminium. Supercross puts real care into its through-axle versions. Answer and Pride fill in the intermediate sizes. Being multi-brand lets you compare offset, weight and axle standard across manufacturers.

The BMX RACING advice

Tell us your frame, your front hub and the rider's class: we confirm steerer, axle and offset before shipping. Round the build out with our headset spacers and BMX stems, or browse the whole cockpit in the BMX steering section. Dispatched within 24 to 72 hours and you can spread the cost over 2 or 3 payments.
