Seat Clamps

BMX race seat clamps: the right diameter, the right clamping

A seat clamp has one job: stopping the post from rotating or dropping under load and on landings. On a race bike, an undersized or tired clamp shows up as a saddle that twists on the first jump, and a seat tube marked by repeated over-tightening. It is a part weighing a few dozen grams that is far better chosen correctly the first time.

Finding your diameter

The diameter quoted for a clamp is that of the frame's seat tube, not the post. The usual correspondence in BMX race is as follows:

• 25.4 mm post → 28.6 mm clamp
• 27.2 mm post → 31.8 mm clamp
• 31.6 mm post → 34.9 mm clamp

If in doubt, measure the seat tube with a vernier caliper rather than trusting the post diameter: some frames run a reduced post inside a thicker tube. A shim, available in our BMX adaptors section, takes up the gap between a slim post and a wide tube.

Bolt or quick-release

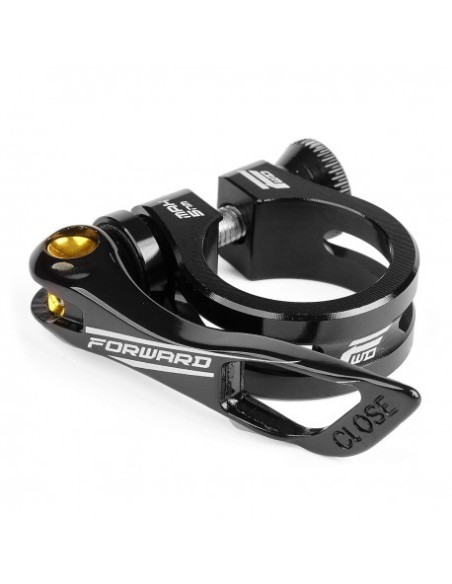

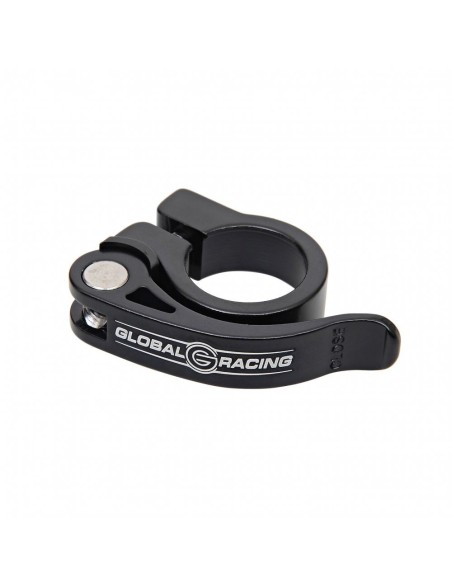

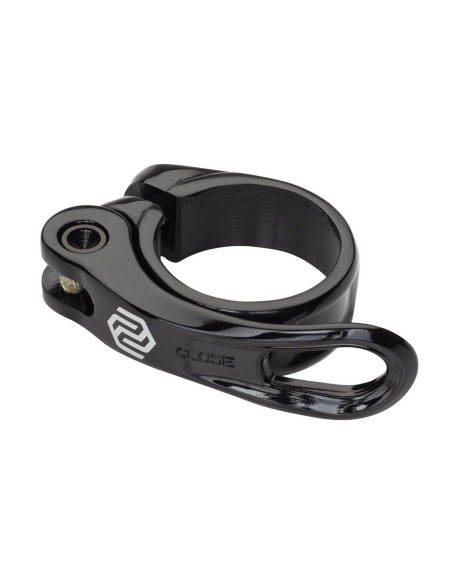

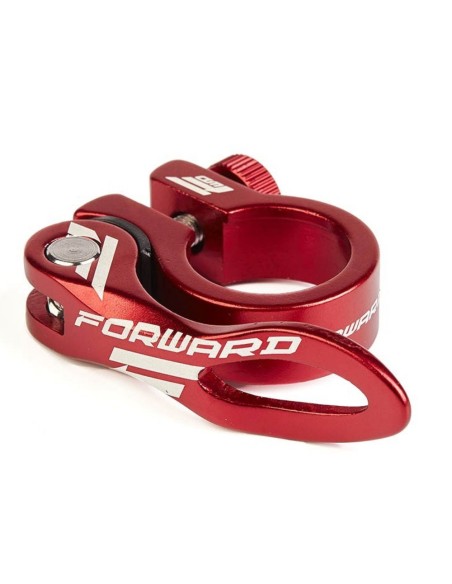

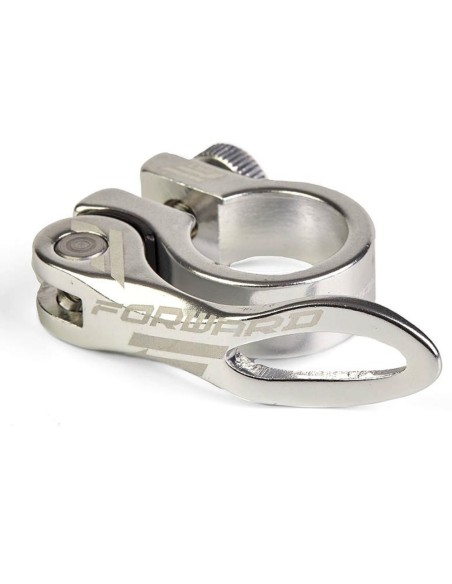

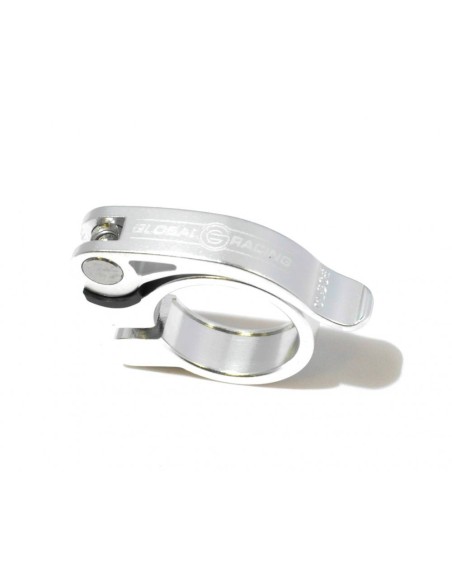

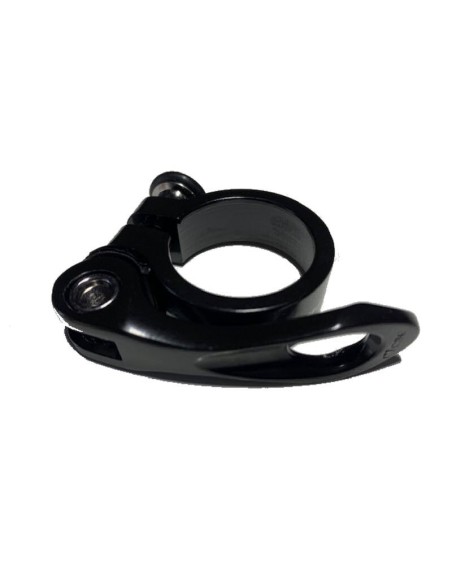

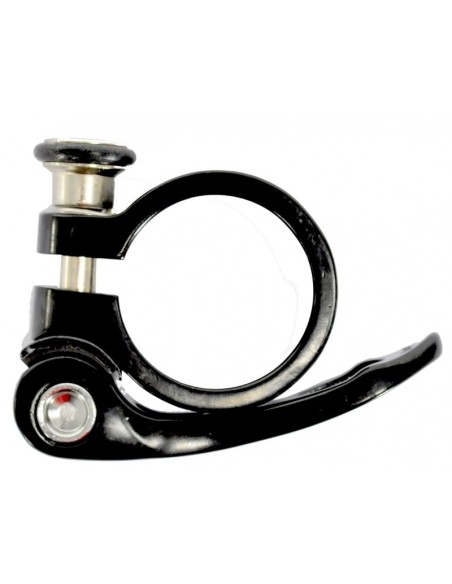

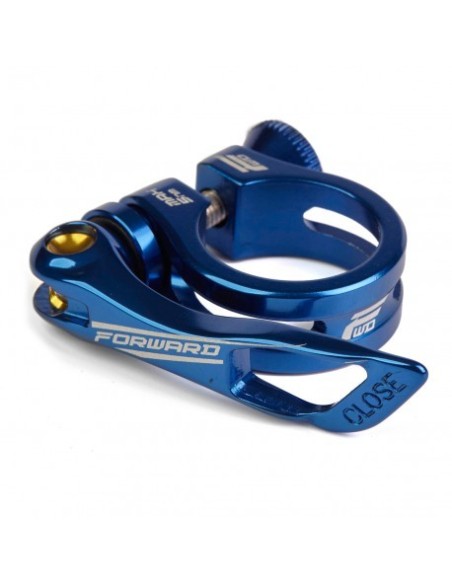

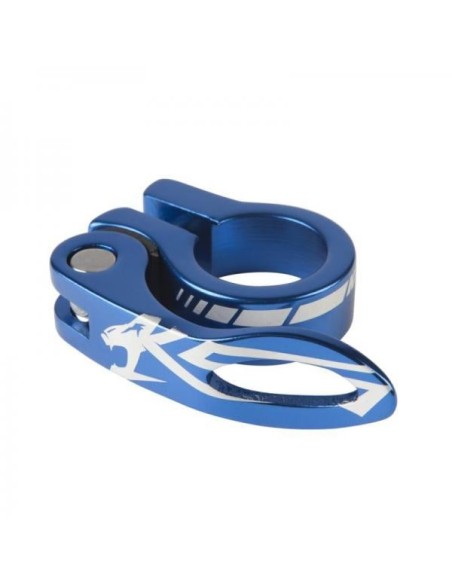

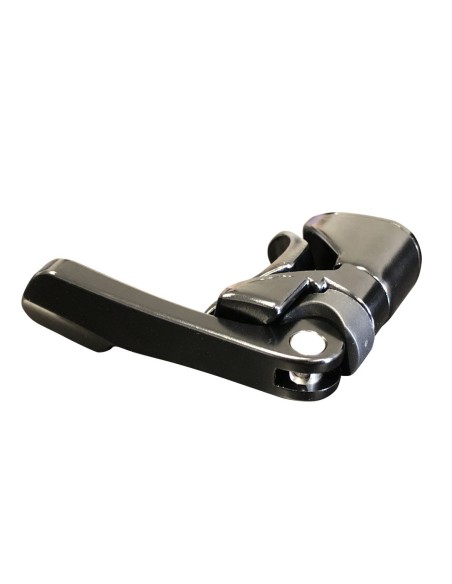

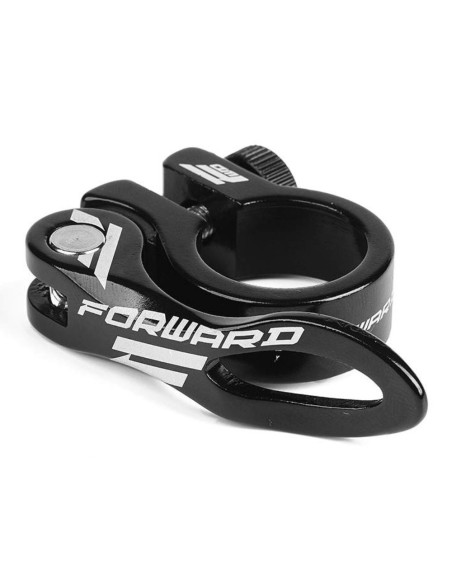

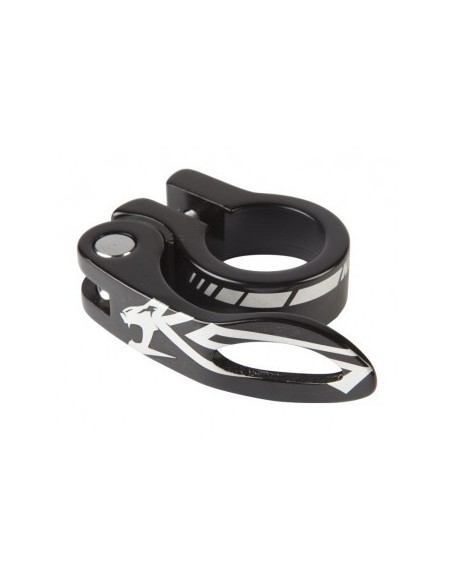

The bolt clamp, with an Allen fastener, is the racing choice: it holds a precise torque, catches on nothing at the gate and stays put when the bike is handled. A quick-release lever earns its place in training, at a BMX school, or when several riders share the same bike and change saddle height repeatedly in a session. Some high-end frames integrate the clamping into the seat tube and need no separate clamp at all.

Materials, weight and finish

The vast majority of BMX race clamps are machined from 6061 or 7075 aluminium, colour anodised to match the rest of the build. The hardware is steel as standard; lightweight versions move to titanium for a handful of grams. Above all, look at the width of the band: a wide clamp spreads pressure more evenly over the tube, which matters on thin-walled frames.

Compatibility and fitting

Check that the slot in the frame's seat tube is clear and lined up with the opening in the clamp. Fit the clamp flush with the top of the tube, without letting it overhang, and turn the bolt away from the direction mud is thrown. A little grease on the thread, a clean cloth on the post and progressive tightening: the target is around 5 to 6 N·m depending on the manufacturer's figure, not the maximum the key allows. A torque wrench can be found in our BMX tools section.

Use: training, racing, Cruiser

On a Micro or Mini bike, a quick-release makes life easier for the club, which adjusts saddle height as the rider grows. On an Expert or Pro bike, the bolt clamp remains the reference. On a 24" Cruiser, where the saddle is used far more, favour a wide clamp and steel hardware over the lightest option.

Brands available

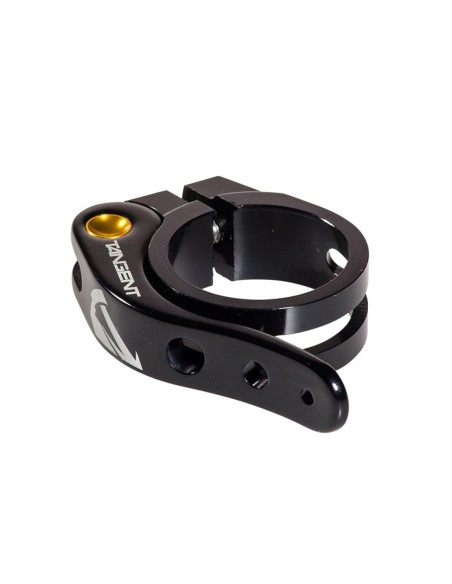

• Tangent: widely used CNC clamps, extensive colour range

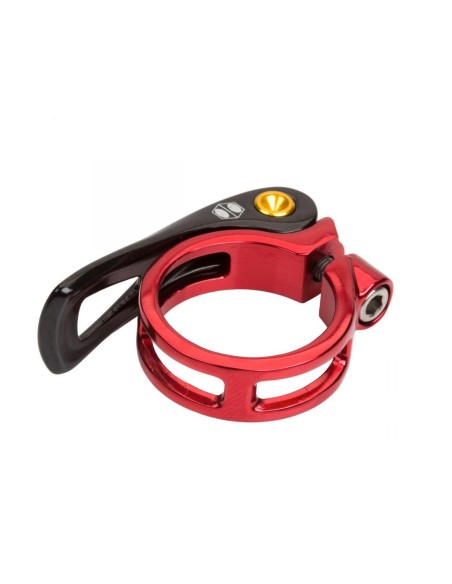

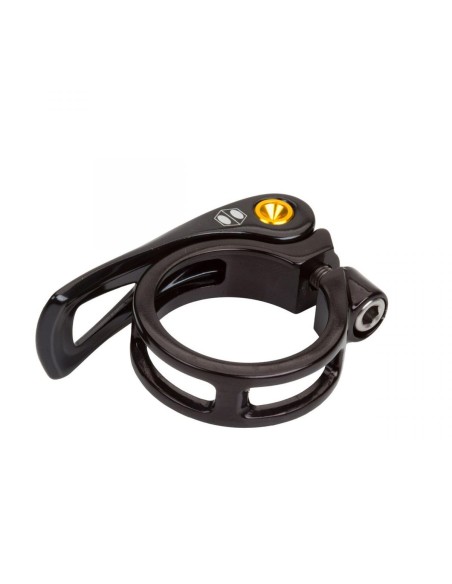

• Box Components: good weight to price balance on the common sizes

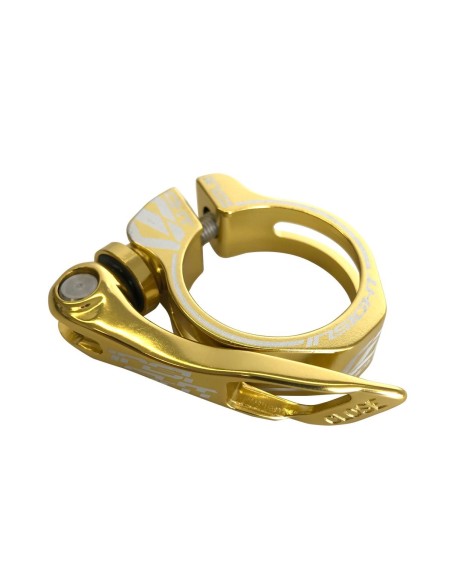

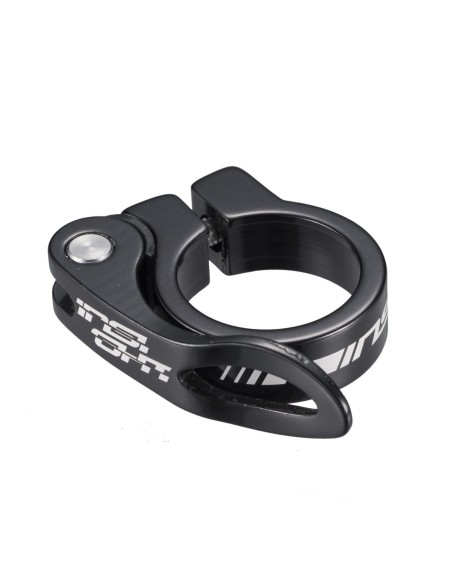

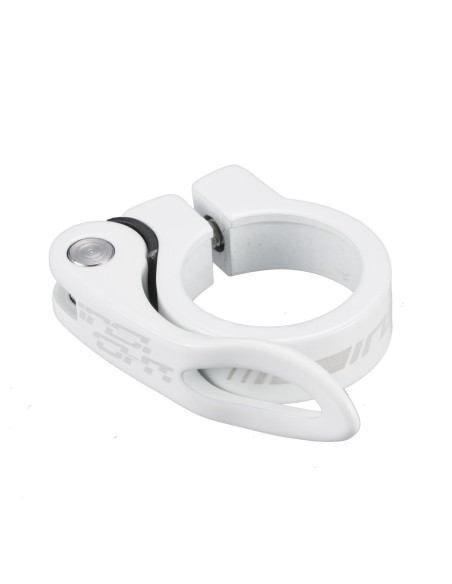

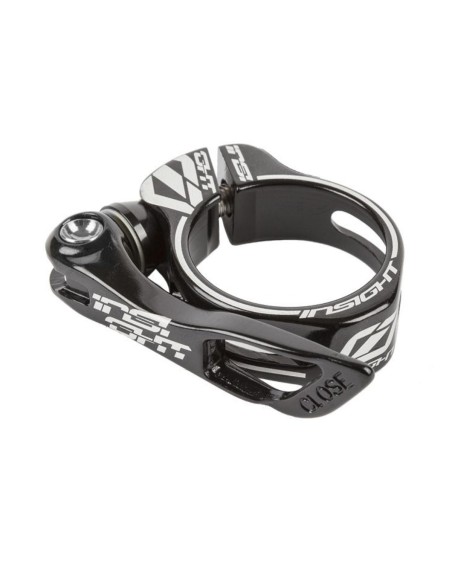

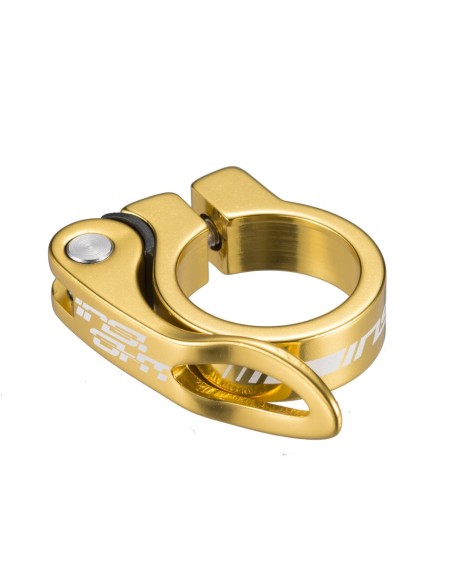

• Insight: accessible range, well suited to Mini and Junior builds

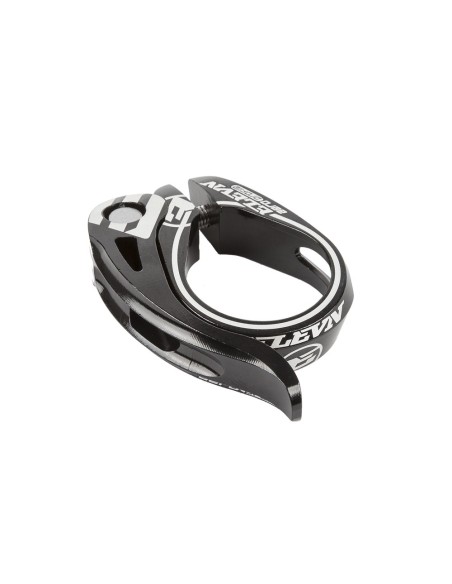

• Elevn: careful finishes for colour-matched builds
• Pride: understated clamps, dependable hardware

The BMX RACING advice

Give us the make and model of your frame, or the measured seat tube diameter, and we will confirm the compatible clamp and, if needed, the post and shim that go with it. Being multi-brand, we have no reason to push one reference over another. Dispatched within 24 to 72 hours, you can spread the cost over 2 or 3 payments available. The rest of the range sits in our BMX accessories.
