Complete BMX wheelset: where performance gains are felt most
Taking weight out of a wheel means taking weight out of a rotating mass: the effect is felt on every acceleration, far more than a gram saved anywhere else on the bike. A complete wheel is chosen on four objective criteria — diameter, rim material, brake type and axle diameter — before any question of brand or colour.
Carbon rim or aluminium rim

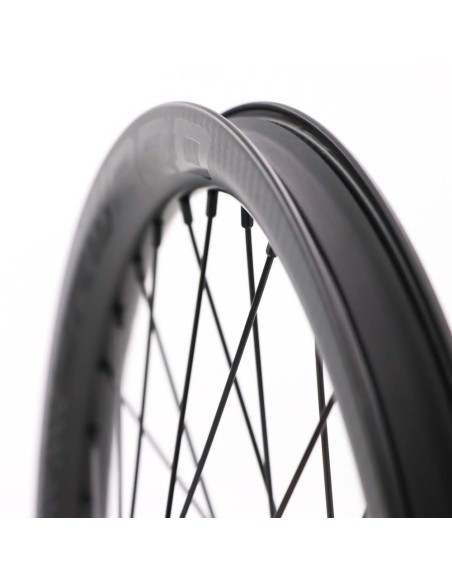

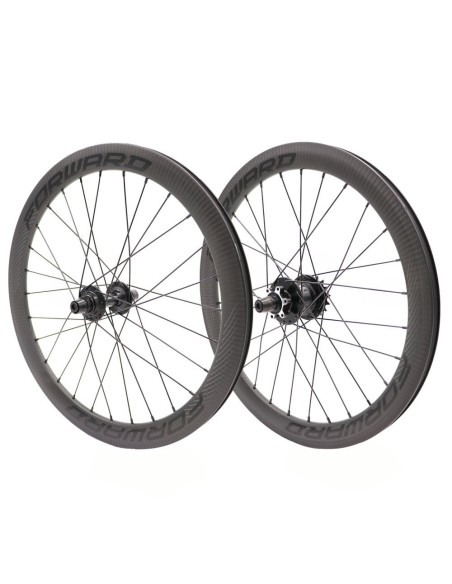

Carbon gives the best stiffness-to-weight ratio and a very direct feel out of the gate: it is the race choice, with one caveat, a heavy impact repairs badly. Aluminium takes knocks better, trues and retensions easily, and costs considerably less. Many riders keep an alloy pair for training and a carbon pair for motos, which remains the most rational solution across a season.
Diameters: 20" (406 and 451) and 24" Cruiser

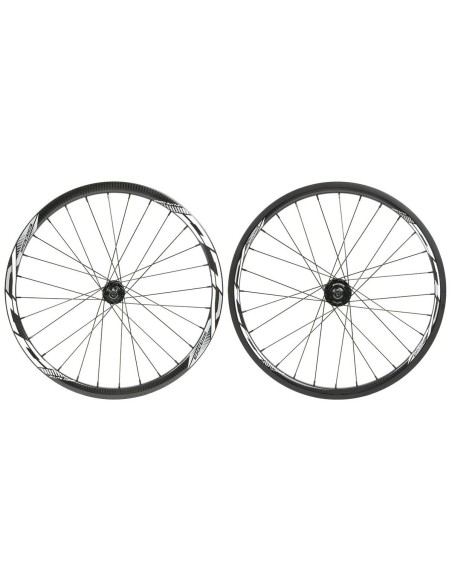

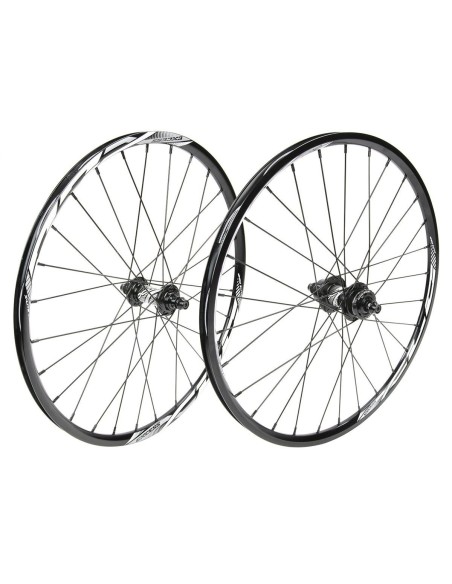

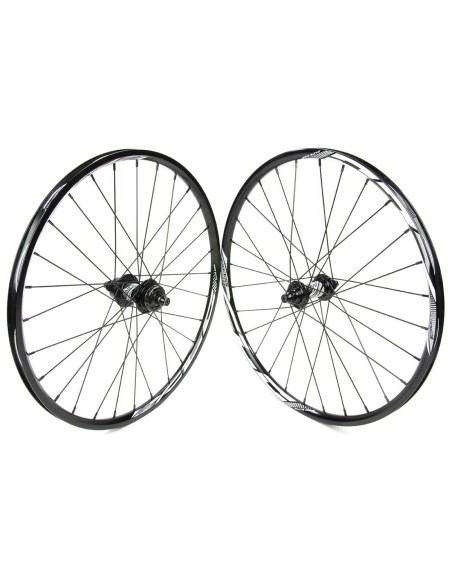

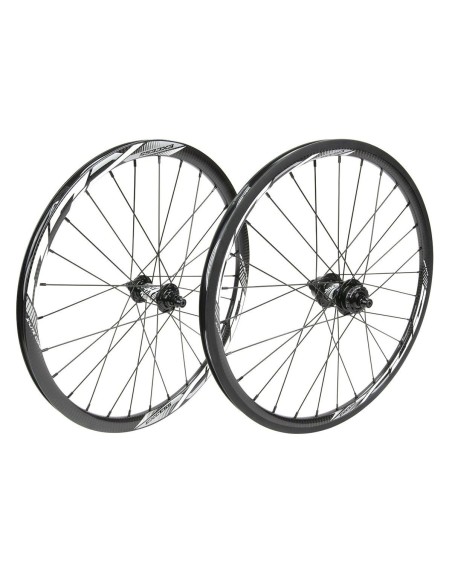

- 451 rim: the largest diameter in 20", paired with the narrow 1"1/8 and 1"3/8 sections, common in Mini, Junior and Expert.

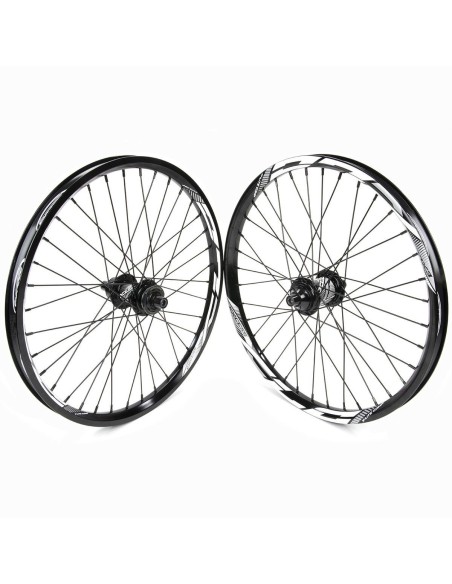

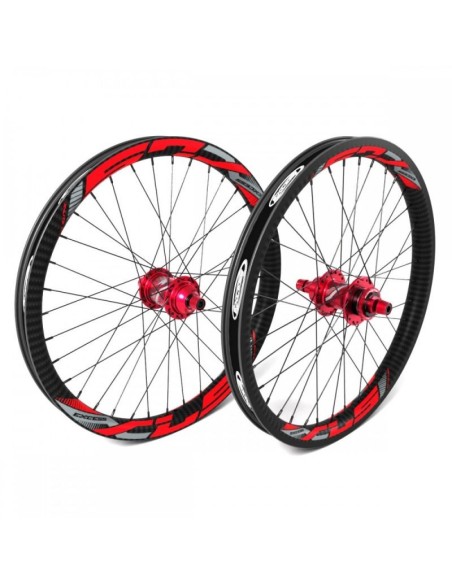

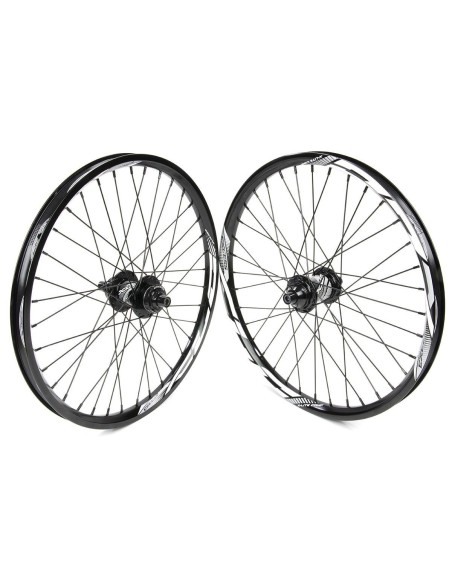

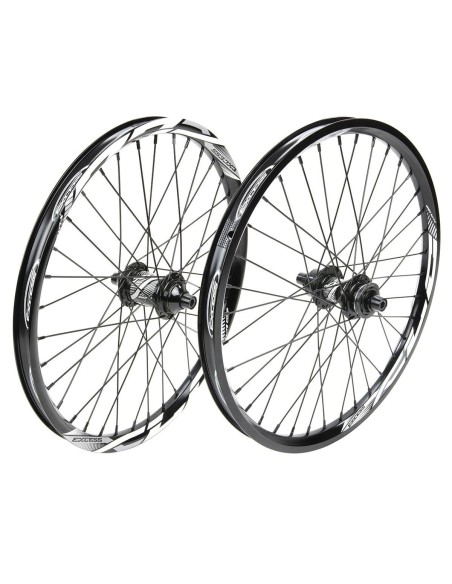

- 406 rim: the standard for 1.50 to 1.75 sections, from Expert up to Pro XXL.

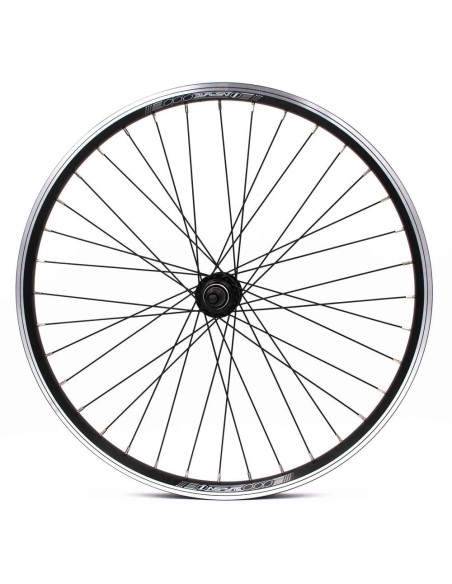

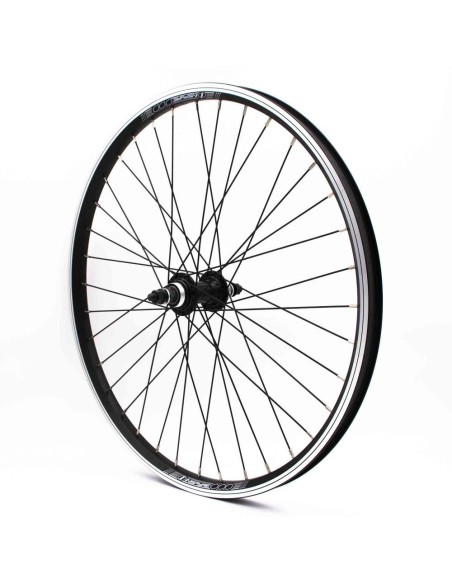

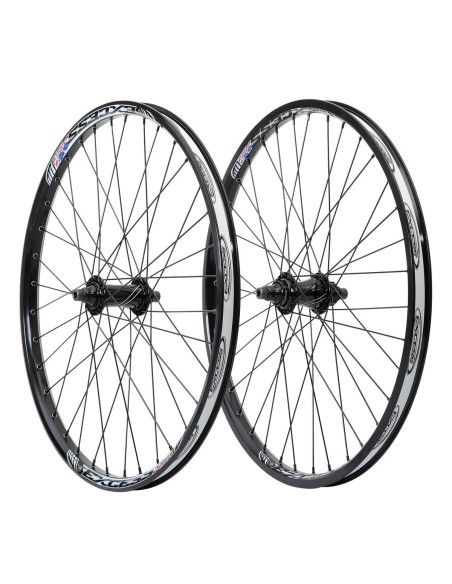

- 507 rim: the 24" wheels of the Cruiser.
Rim diameter dictates the choice of BMX tyre: a 406 and a 451 are never interchangeable, even though both are called "20 inch".
Disc or rim brake: two different wheels

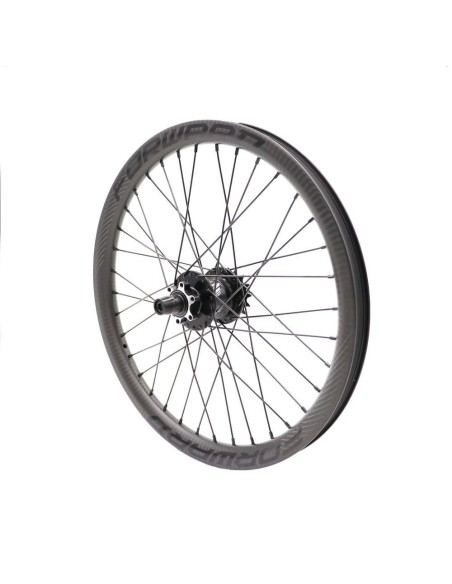

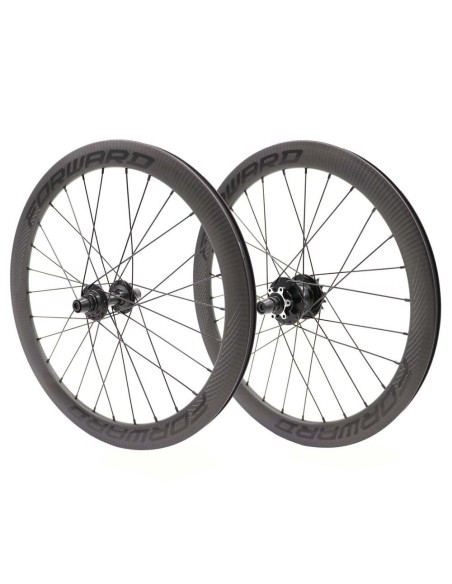

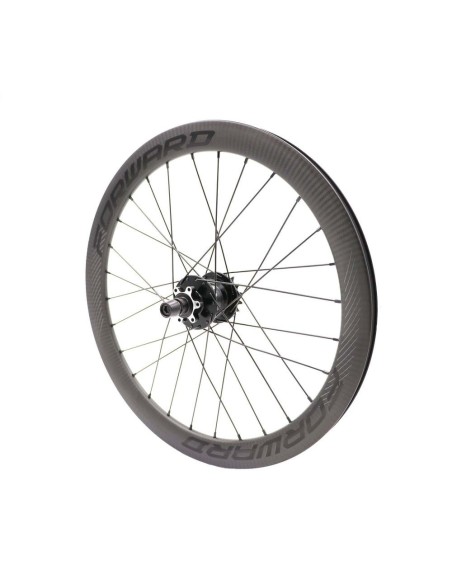

A wheel built for V-brake has a machined braking surface on the rim sidewalls. A disc wheel does without it and carries an IS 6-bolt or Centerlock mount on the hub. The two are not interchangeable: moving to disc requires a compatible wheel, a frame or a disc tab to suit, and a rotor of the right diameter. Some wheels accept both systems, which has to be checked model by model.
10, 15 and 20 mm axles: compatibility first

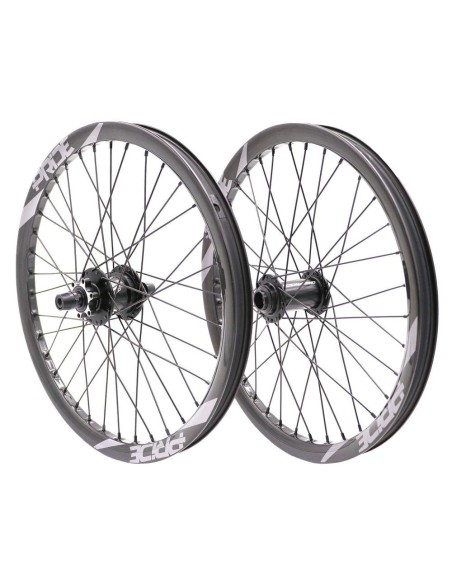

Axle diameter is dictated by the fork and the frame dropouts, not by preference. 10 mm remains the most widespread standard, 20 mm brings maximum front-end stiffness on forks built for it, and 15 mm sits in between. Wheel axles and reducers can sometimes bridge a difference, but never allow an oversized axle into a narrower fork.
Complete pair or single wheel
A matched pair guarantees consistent looks and consistent handling, and works out cheaper than two separate purchases. A single wheel answers two very concrete needs: replacing a damaged wheel without changing the other, or upgrading the bike step by step — plenty of riders change the rear wheel first, as it is the harder worked of the two.
The wheelset brands we stock

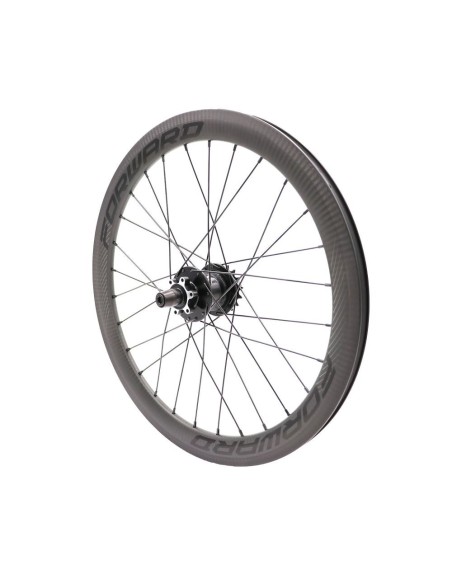

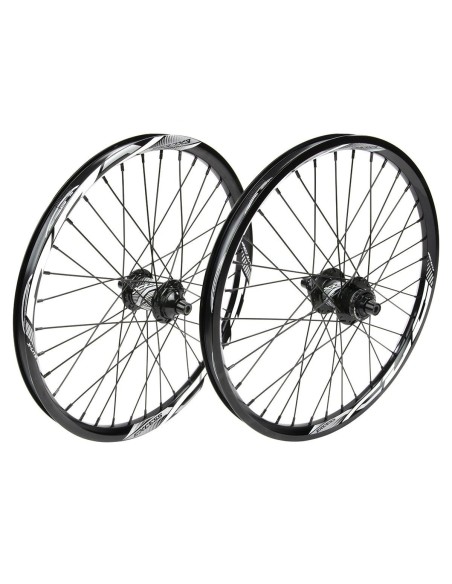

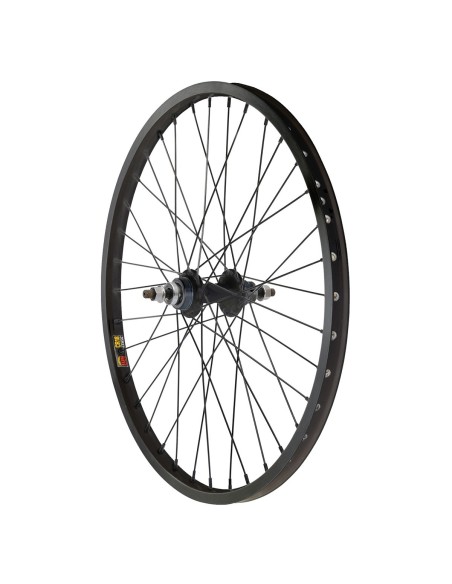

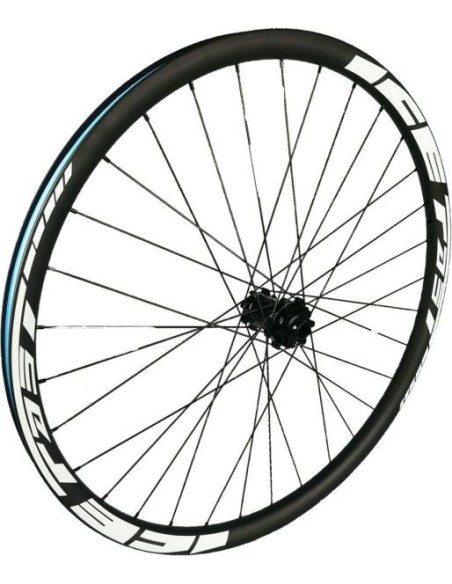

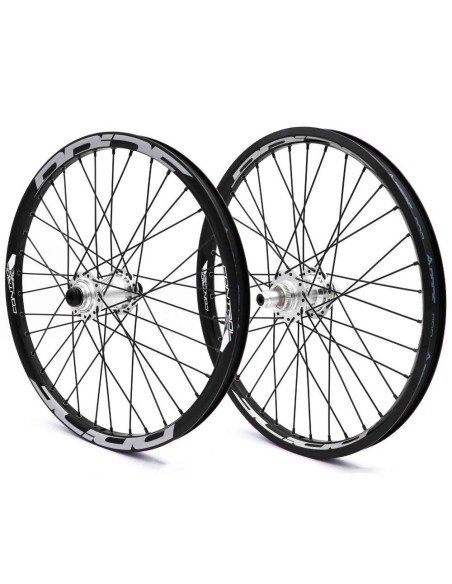

Pride covers the entire spectrum, from the aluminium training wheel to the carbon race rim. Forward has a reputation built on hub reliability. Excess structures its range into clearly separated levels, which is useful when arbitrating a budget. ICE, a French manufacturer, is well placed on disc builds. Onyx brings its instant-engagement hubs. Crupi, Inspyre, Answer and Box Components round out the aluminium offer, Sun Ringle on replacement rear wheels and Redline on 18" wheels for the youngest riders. Avian supplies the Venatic carbon rims. Distributing all these brands means comparing real weights and real over-locknut widths rather than marketing claims.
Care and service life
Check trueness and tension several times a season, and always after a crash. On an alloy rim used with pads, the braking surface wears: a hollowed sidewall, or a rim that flexes visibly under pressure, means replacement. Bearings should be changed well before they seize, and a carbon wheel should be inspected visually after any impact, even with no obvious buckle.
The BMX RACING advice
Tell us your frame, your fork, your braking system and your class: we confirm diameter, axle and drilling before you buy, and we will say plainly when aluminium is all you need. Dispatched within 24 to 72 hours, you can spread the cost over 2 or 3 payments.
