BMX race stem: length and height define your position

The stem joins the handlebar to the fork steerer and fixes two parameters: the distance between saddle and hands, and bar height. A few millimetres are enough to change the balance of the bike at the gate and your ease through a berm. The choice depends on your handlebar, your fork and the rider's build.

Front load or top load: what is the difference?

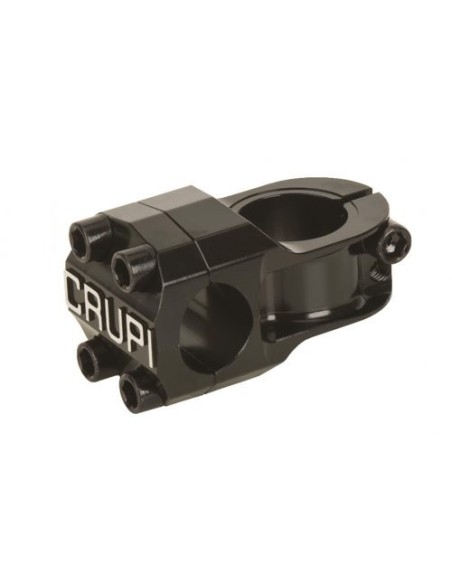

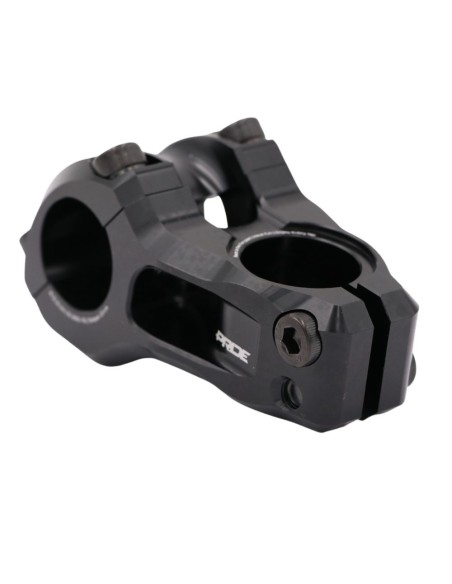

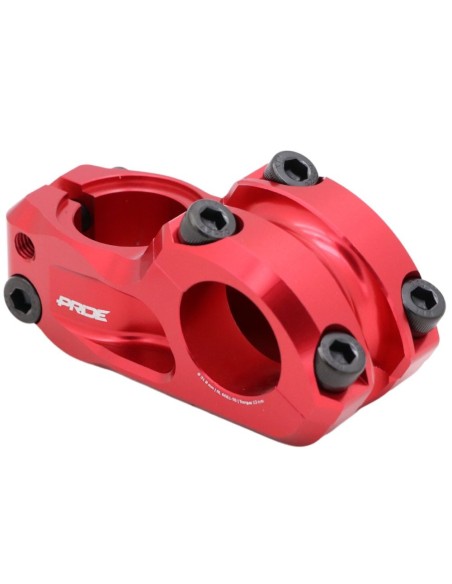

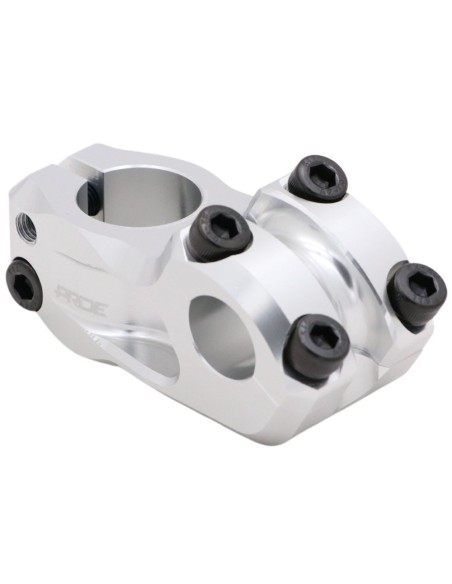

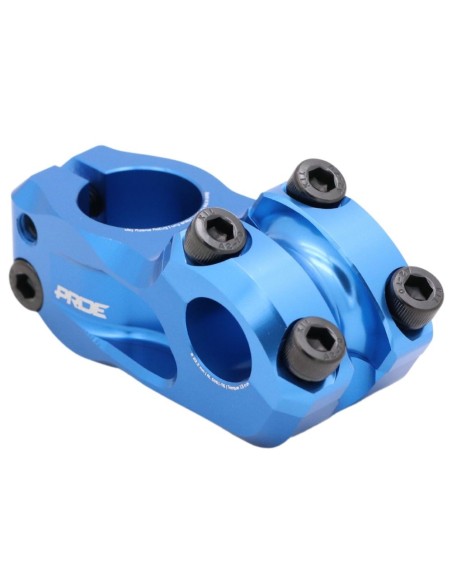

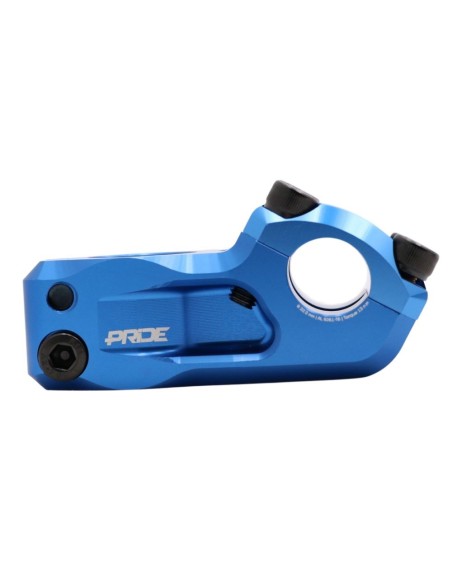

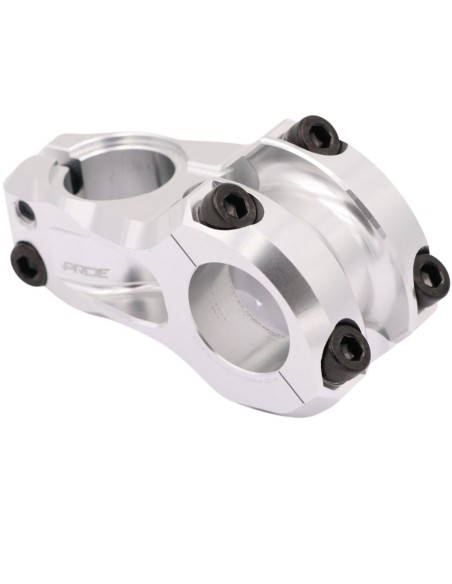

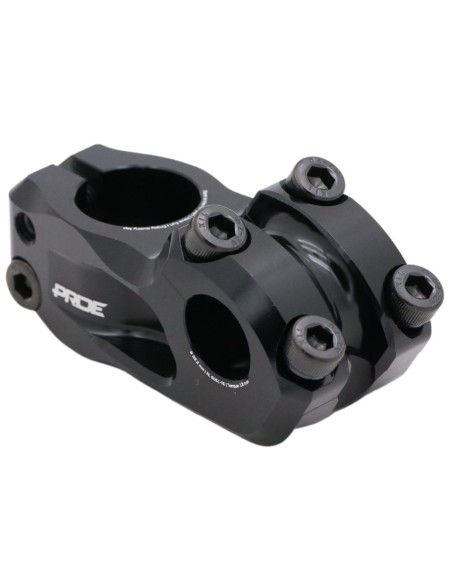

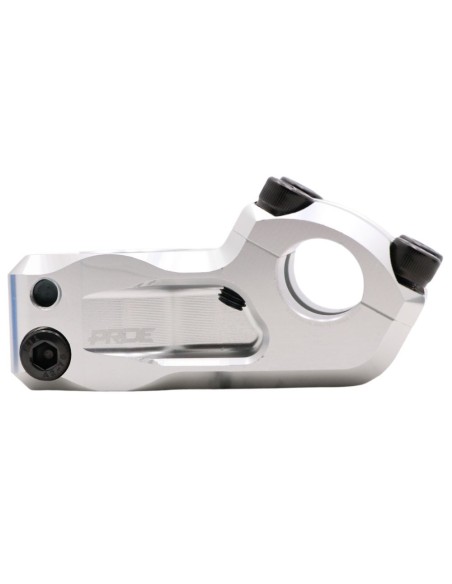

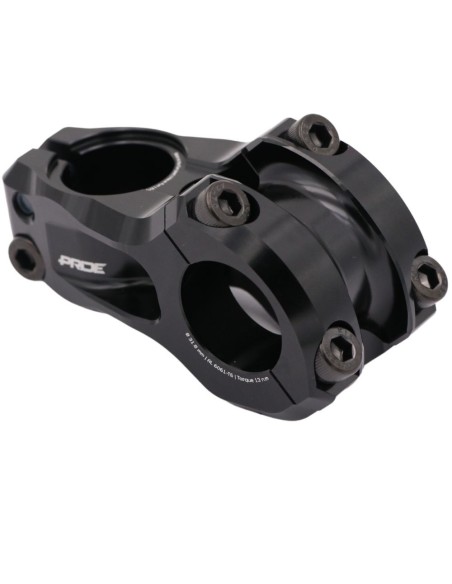

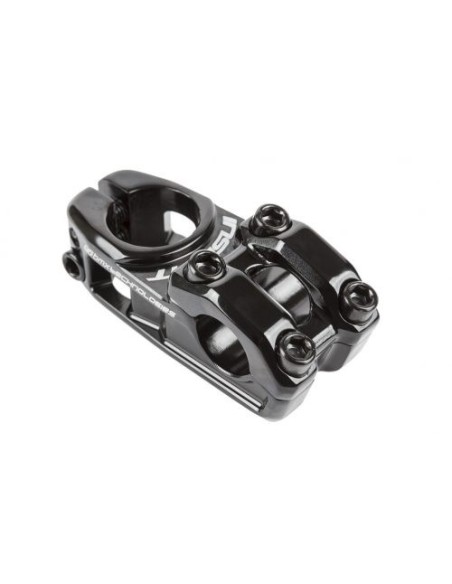

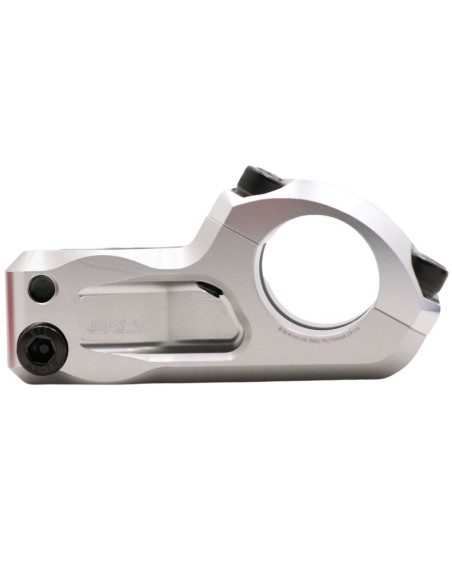

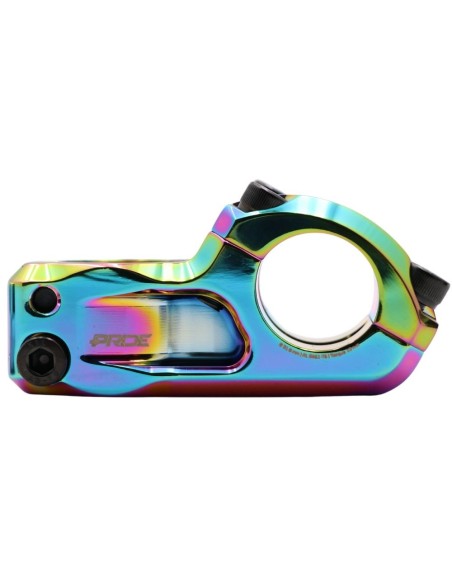

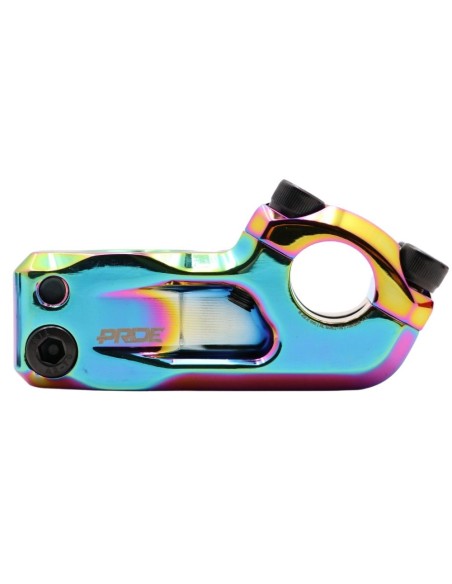

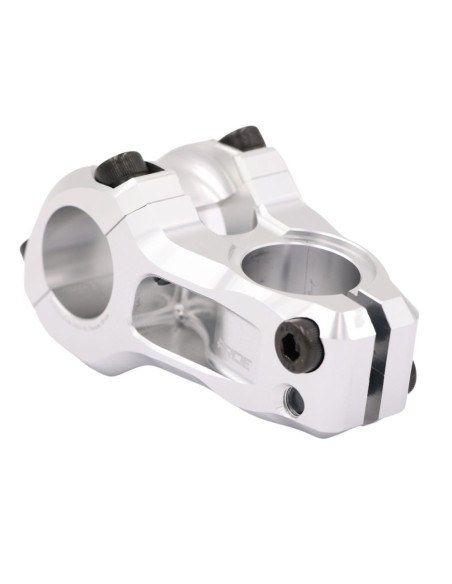

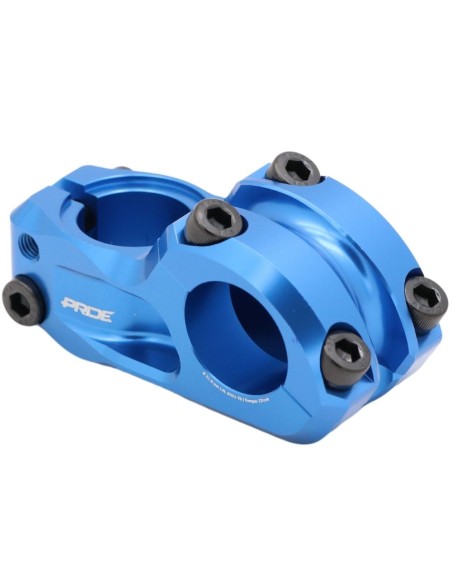

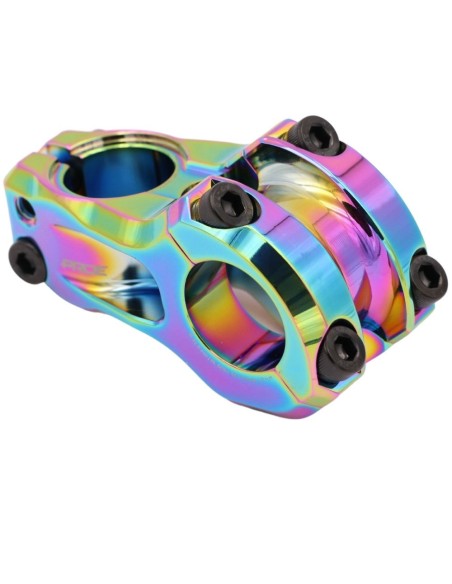

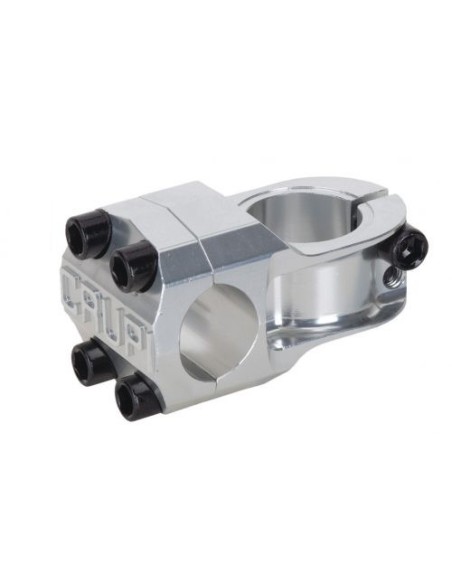

A front load stem clamps the bar at the front, through a four-bolt faceplate set ahead of the steerer: the bar comes off without touching the rest of the build, and the position sits lower and slightly further forward. A top load takes the bar above the stem body, under a bolted cap, so the bar gains height. In BMX race, front load dominates for ease of adjustment; top load appeals to riders chasing a few millimetres of rise without changing bars.

Length (reach) and height (stack)

Length is measured between the steerer axis and the bar axis. In BMX race it most often runs from 40 to 60 mm. A short stem folds the rider over the front wheel and makes steering very quick; a long stem stretches the position and settles the bike at speed. Clamp height (stack) then plays into final bar height, to be combined with headset spacers and the rise of the bar.

Diameters: 22.2 mm, 31.8 mm and 1"1/8 steerer

• Bar clamp: 22.2 mm (7/8"), the historic BMX standard, or 31.8 mm oversize at the top of the range. The two are not interchangeable.
• Steerer clamp: 1"1/8, or 28.6 mm, a figure common to every BMX race steerer, including tapered forks where only the lower section widens.

Which length for which class?

In Micro and Mini, a 40 to 45 mm stem keeps the rider centred on a short bike. In Junior and Expert, expect 45 to 53 mm. In Pro, Pro XL and Cruiser, 50 to 60 mm suits long frames and powerful pedalling. Treat these as starting points: a rider with a long torso, or one who slides the saddle back, may prefer a shorter stem than the average for their class.

Materials, bolts and torque figures

Almost every race stem is 6061 or 7075 aluminium, forged then CNC-machined. Steel bolts remain the safest choice; titanium bolts save weight but call for a torque wrench. Follow the manufacturer's torque figure, tightening in a cross pattern in small increments: this is decisive with a carbon bar or steerer, where over-tightening crushes the fibre.

Compatibility to check before ordering

Three points are enough: the centre diameter of your BMX handlebar, the steerer diameter of your BMX fork and the steerer height left above the head tube. If the steerer protrudes, add spacers or cut it down; if it is too short, a low-stack stem saves the build. The top cap and preload bolt set the play before final clamping.

BMX race stem brands

Inspyre works on light, competition-focused stems. Chase offers coherent lengths across the whole size range. Box Components covers training on a controlled budget. Tangent puts care into machining. Promax equips many original builds, and Elevn fills in on the short versions. Multi-brand, we compare real length, stack and weight before deciding.

The BMX RACING advice

Tell us the rider's height, their current handlebar and the stem length in place: we recommend the useful change, generally 5 mm at a time, rather than a radical swap. Dispatched within 24 to 72 hours, you can spread the cost over 2 or 3 payments.
