CHASE EDGE EXPERT XL SLATE 2026
Last items in stock
€789.00
VAT included
This purchase earns you €47.34 in rewards, which you can convert into a voucher to use on your next order.
Shipping in 24/72hFrance & Europe
Pay in 2× / 3×secured with Alma
Expert adviceat your service
Satisfied or refunded14-day returns

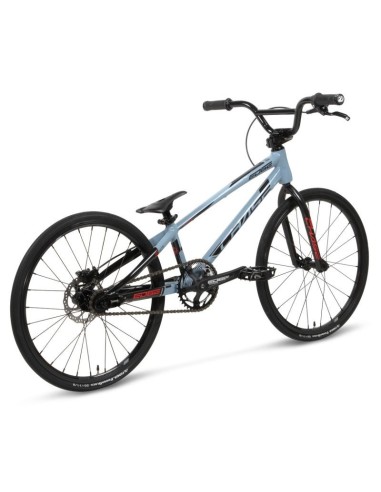

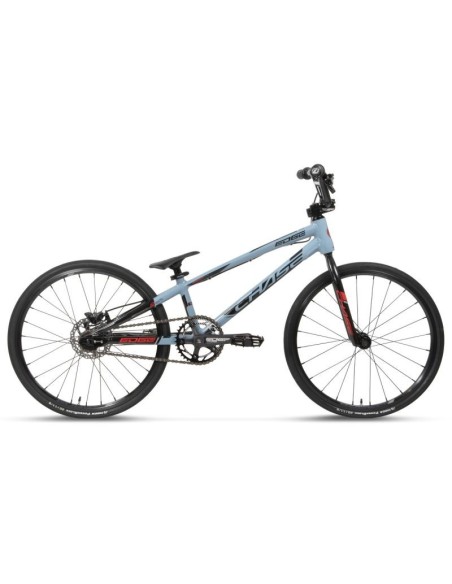

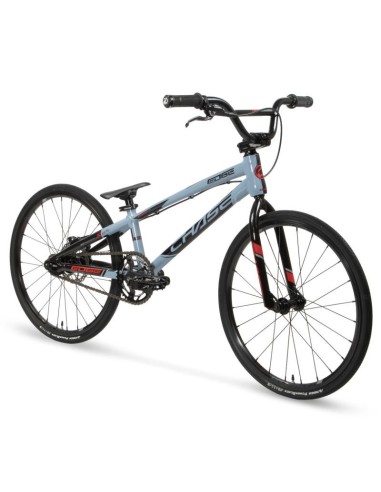

CHASE EDGE EXPERT XL 2026
The brand new CHASE Edge is a competition-ready BMX machine, ideal for riders ready to get serious about BMX racing and take their riding to the next level.
While you didn't think it was possible, the new Edge has been improved, as it now comes equipped with Shimano hydraulic disc brakes (Junior size and up), all-new 2-piece Chase 24mm alloy cranks (Expert XL and up), updated bottom bracket and chainring sizes, two-tone paint and graphics, and a closed rear dropout system with integrated chain tensioner system.
The combination of all these components undoubtedly makes for CHASE Edge is one of the most advanced BMX racing bikes available today.
FEATURES :
- Frame Aluminum 6061-T6 Triple butted Top Tube 20"
- Integrated 1-1/8" steering and closed lugs
- 100% Chromoly fork and handlebars

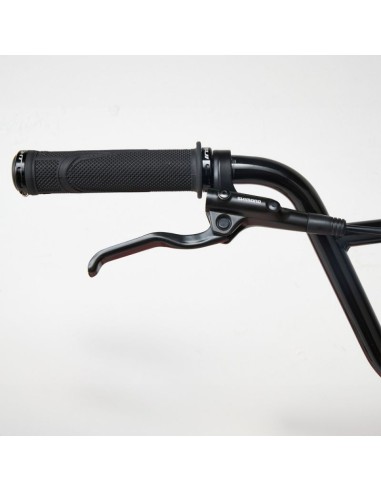

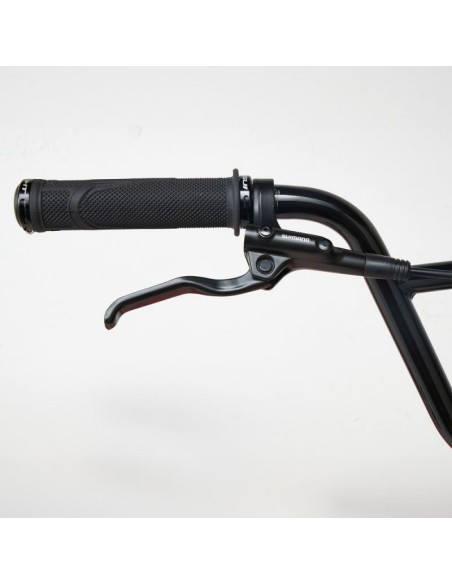

- Shimano BL-MT200(R) / BR-MT200(R) ISO 140mm Hydraulic Disc Brake
- Chase Edge 50mm Top Load Aluminum Stem

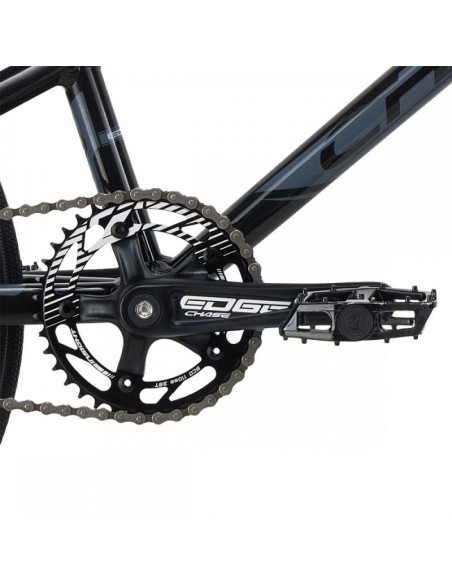

- Chase Edge 2-piece aluminum crankset, 170mm, chromoly chainring bolts
- Euro External BSA 24mm Bottom Bracket Shell with Sealed Bearings
- Insight Aluminum 41-tooth 4-point BCD 104mm sprocket
- 32-hole aluminum hubs with sealed bearings
- Rear hub with ISO cassette support, 16-tooth sprocket
- Chase double-walled aluminum rims 20x1.50"
- Tioga Powerblock Rigid Bead Tires
- Chain KMC Z1
RECOMMENDED SIZE : 1.44m – 1.55m
WEIGHT 8.85 kg without pedals
SPECIFICATIONS:
|
FRAME
|
Chase Edge Expert XL Top Tube 20" 6061 T6 Hydroformed Triple Butted Aluminum, Closed Rear Dropouts, Integrated 1-1/8" Headset, Stickers Under Clear Coat |
|
FORK
|
Chase Edge 100% Cr-mo, 1-1/8" Pivot with Tapered Arms |
|
DIRECTION
|
Integrated IS 42/42 1-1/8" Annular Bearings |
|
HANDLEBAR
|
Chase Edge Cr-mo Height 6.5", Width 26", 8° Back Sweep & 2° Up Sweep |
|
HANDLES
|
InsightC.O.G.S 130mm Lock on |
|
Gallows
|
Chase Edge 50mm 6061 T6 Aluminum |
|
HOUSING
|
Euro External BSA 24mm Annular Bearings |
|
CROWN
|
Insight Alu 41 Teeth 4 Points 104mm 1/2"x3/32" 5mm |
|
CRANKSET
|
Chase Edge 2 Pieces Axle 24mm 170mm Aluminum Laser Logo Engraving, Cr-mo Bottom Bracket Screws |
|
PEDALS
|
Aluminum platform with molded studs, 9/16" steel axle, ball bearings |
|
CHAIN
|
KMC Z1 narrow 1/2"x3/32" |
|
PINION
|
16 steel teeth |
|
FRONT HUB
|
Mini 32H, 10mm axle, M6 screw, sealed bearings |
|
REAR HUB
|
Mini ISO 32H, 10mm shaft, M6 screw, sealed bearings, steel cassette, 3 triple-engagement pawls on 24 internal teeth |
|
RAYS
|
Front 181mm, Rear 173/174mm, 14 Gauge, Steel |
|
HEADS
|
16mm, 14 Gauge, Steel |
|
FRONT RIM
|
Chase Edge 150 double wall 32H 20’’x1.50’’ Schrader valve |
|
REAR RIM
|
Chase Edge 150 double wall 32H 20’’x1.50’’ Schrader valve |
|
FRONT TIRE
|
Tioga PowerBlock 20" x 1.60" Rigid Rod |
|
REAR TIRE
|
Tioga PowerBlock 20" x 1.40" Rigid Rod |
|
ROOMS
|
20’’x1.50/1.75’’ Schrader Valve |

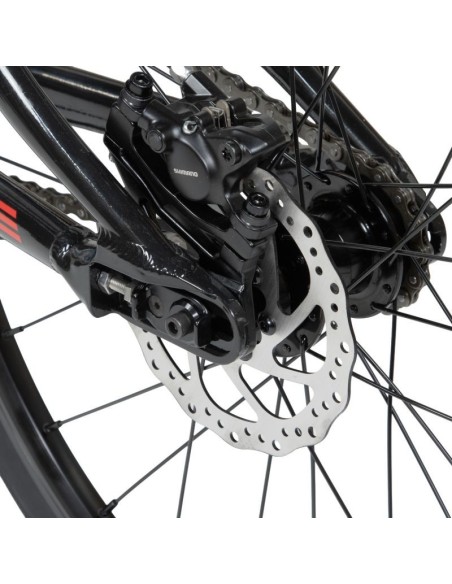

| BRAKING | 140mm adapter, with Shimano BR-MT200(R) hydraulic disc caliper, resin pads, and 140mm disc. Shimano BL-MT200(R) hydraulic disc lever. |

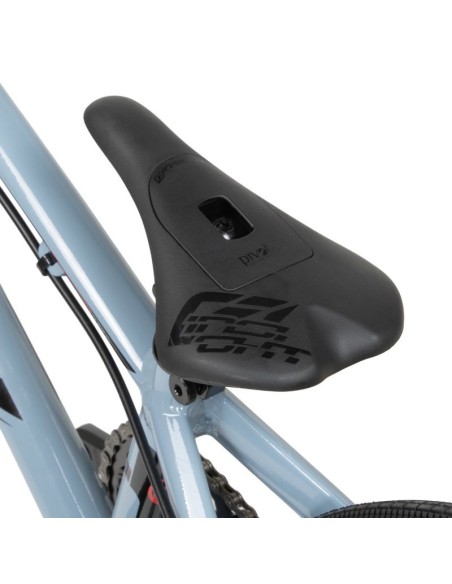

| SADDLE | Chase Pro Pivotal PC |
| STEM | Pivotal 27.2x250mm Aluminum |
| NECKLACE | Chase Edge QR Aluminum 31.8mm |
| TENSIONER | Integrated Construction with New Disc Lock Adapter |
GEOMETRIES:
| Sizes | TT | CS min | LR | HA | ITS | HT | SPL | BBH | WB | Wheels |
| Micro | 16.25" 412.75 mm |
10.85" 275.6 mm |
1.8" 46 mm |
71° | 69° | 4" 100 mm |
8" 203.5 mm |
10.25" 254 mm |
732 mm | 18x1" |
| Mini | 17.25" 438.15 mm |
12.25" 312 mm |
1.8" 46 mm |
72° | 70° | 4.33" 110 mm |
8.8" 225 mm |
10.6" 269.2 mm |
800 mm | 20x1-1/8" |
| Junior | 18.75" 476.25 mm |
12.5" 317.5 mm |
1.8" 46 mm |
73rd | 72° | 4.33" 110 mm |
8.8" 225 mm |
10.6" 269.2 mm |
859.9 mm | 20x1-1/8" |
| Expert | 19.75" 501.65 mm |
13" 330.2 mm |
1.8" 46 mm |
73rd | 72° | 4.33" 110 mm |
8.8" 225 mm |
11" 279.4 mm |
883.8 mm | 20x1-3/8" |
| Expert XL | 20" 508 mm |
13.5" 353 mm |
1.8" 46 mm |
73rd | 72° | 4.7" 120 mm |
8.8" 225 mm |
11.5" 292.1 mm |
903 mm | 20x1.50" |
| Pro | 20.5" 520.7 mm |
14" 355.6 mm |
1.8" 46 mm |
74° | 72° | 4.7" 120 mm |
9.4" 238 mm |
11" 279.4 mm |
938 mm | 20x1.75" |
| Pro XL | 21" 533.4 mm |
14.15" 359.4 mm |
1.8" 46 mm |
74° | 72° | 4.7" 120 mm |
9.3" 238 mm |
11.5" 292.1 mm |
945.2 mm | 20x1.75" |
| Pro XXL | 21.5" 546.1 mm |
14.15" 359.4 mm |
1.8" 46 mm |
74° | 72° | 4.7" 120 mm |
9.3" 238 mm |
11.5" 292.1 mm |
969.5 mm | 20x1.75" |
| Cruiser | 21.5" 546.1 mm |
14.5" 368.3 mm |
1.8" 46 mm |
74° | 71° | 4.7" 120 mm |
10.6" 270 mm |
12" 304.8 mm |
964.5 mm | 24x1.75" |
The specifications of complete bikes are subject to change throughout the year due to parts upgrades or shortages, and modifications made throughout our production cycle to improve the quality of the bikes. The specifications shown in the photo and the list may therefore differ slightly.
Type
BMX Race
Genre
Disc brakes
CHACOB554
