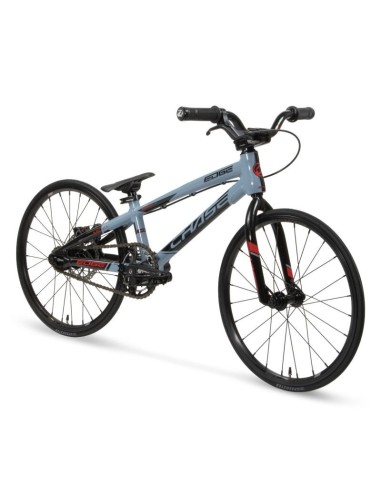

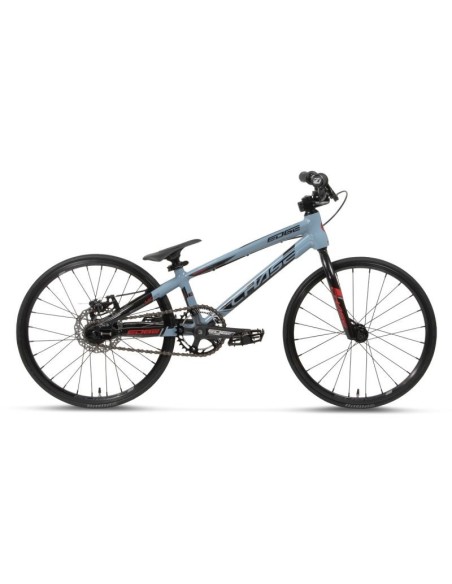

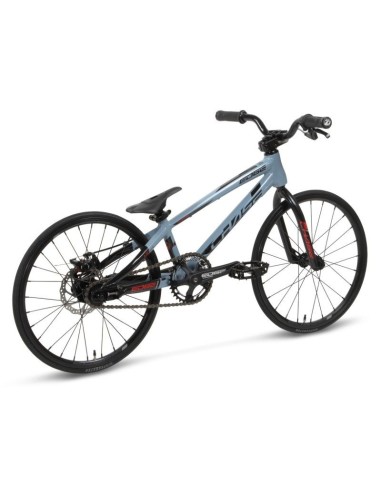

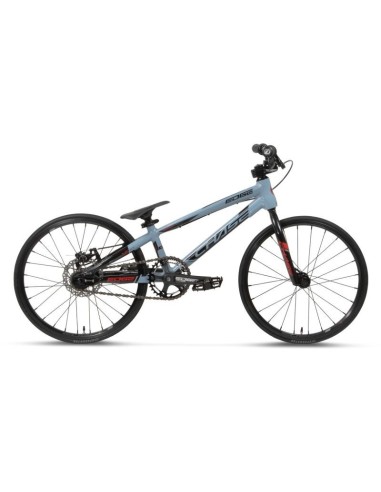

The brand new CHASE Edge is a competition-ready BMX machine, ideal for riders ready to get serious about BMX racing and take their riding to the next level.
While you didn't think it was possible, the new Edge has been improved, as it now comes equipped with Shimano hydraulic disc brakes (Junior size and up), all-new 2-piece Chase 24mm alloy cranks (Expert XL and up), updated bottom bracket and chainring sizes, two-tone paint and graphics, and a closed rear dropout system with integrated chain tensioner system.
The combination of all these components undoubtedly makes for CHASE Edge is one of the most advanced BMX racing bikes available today.
FEATURES :
- FRAME Chase Edge Mini 17.25" Top Tube Hydroformed with Closed Drop Out
- FORK : Chase Edge Mini, 100% Cr-mo, 1″ Pivot
- Gallows Chase Edge 40mm
- HANDLEBAR Chase Edge 2.25″
- DIRECTIONIntegrated sealed bearings
- CROWN : Insight 36 teeth 5 screws BCD 110mm
- CRANKSET : Chase Edge Aluminum 130mm, Square Axle 113mm
- HUBS Chase Edge Mini, 3/8″ axle, sealed bearings, steel cassette body, Triple Precise Clutch system with ISO disc brake standard (3 pawls with triple angular engagement for 24 pawls), 16-tooth sprocket
- RIMS Chase Edge 100 Double Wall 18″x1″, 24 holes Front, 28 holes Rear
- TIRES Tioga PowerBlock 20″x1-1/8″ Front and Rear

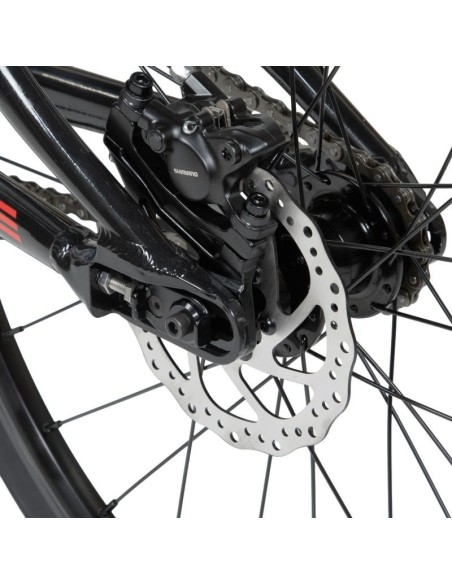

- BRAKES Mechanical, 140mm disc, Shimano B01S compatible brake pads, Lock Disc adapter

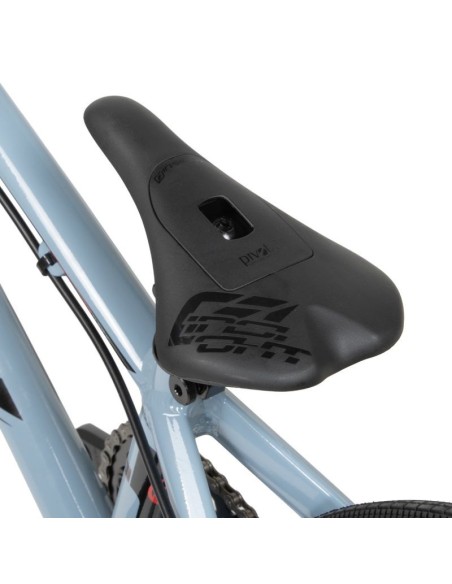

- SADDLE : Insight Mini Pivotal
RECOMMENDED SIZE : 1.10m – 1.25m
WEIGHT 7.59 kg without pedals
SPECIFICATIONS:
|
FRAME
|
Chase Edge Mini 17.25" Top Tube 6061 T6 Hydroformed Triple Butted Aluminum, Closed Drop Out, Integrated 1" Headset, Stickers Under Clear Coat |
|
FORK
|
Chase Edge 100% Cr-mo, 1" Pivot with Tapered Arms |
|
DIRECTION
|
Integre IS 42/42 1" Gearbox with Annular Bearings |
|
HANDLEBAR
|
Chase Edge Cr-mo Height 2.25", Width 20", 8° Back Sweep & 2° Up Sweep |
|
HANDLES
|
InsightC.O.G.S 115mm Lock on |
|
Gallows
|
Chase Edge 40mm 6061 T6 Aluminum |
|
HOUSING
|
Euro Square 113mm Annular Bearings |
|
CROWN
|
Insight Aluminum 38 teeth 5-point BCD 110mm thickness 5mm |
|
CRANKSET
|
Chase Edge 3-piece 140mm Aluminum, Cr-mo crown screw |
|
PEDALS
|
Mini 9/16" Platform with Molded Pegs, Steel Axle, Ball Bearings |
|
CHAIN
|
KMC Z1 narrow 1/2"x3/32" |
|
PINION
|
16 steel teeth |
|
FRONT HUB
|
Mini 24H, 10mm axle, M6 screw, sealed bearings |
|
REAR HUB
|
Mini ISO 28H, 10mm shaft, M6 screw, sealed bearings, steel cassette, 3 triple-engagement pawls on 24 internal teeth |
|
RAYS
|
Front 208mm, Rear 198/199mm, 14 Gauge, Steel |
|
HEADS
|
16mm, 14 Gauge, Steel |
|
FRONT RIM
|
Chase Edge Alu 118 Double Wall 24H 20"x1-1/8" Presta Valve |
|
REAR RIM
|
Chase Edge Alu 118 Double Wall 28H 20"x1-1/8" Presta Valve |
|
FRONT TIRE
|
Tioga PowerBlock 20" x 1-1/8" Rigid Rod |
|
REAR TIRE
|
Tioga PowerBlock 20" x 1-1/8" Rigid Rod |
|
ROOMS
|
20’’x1-1/8’’ Presta Valve |

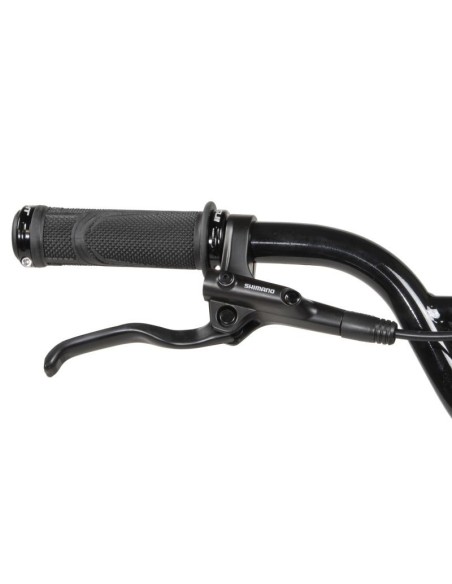

| BRAKING | Mechanical, 140mm disc, Shimano B01S compatible brake pads, Disc Lock adapter. Pro Aluminum lever |
| SADDLE | Insight Mini Pivotal Nylon Body with Steel Screw |
| STEM | Pivotal 25.4x250mm Aluminum |
| NECKLACE | Chase Edge QR Aluminum 28.6mm |
| TENSIONER | Integrated Construction with New Disc Lock Adapter |
GEOMETRIES:
| Sizes | TT | CS min | LR | HA | ITS | HT | SPL | BBH | WB | Wheels |
| Micro | 16.25" 412.75 mm |
10.85" 275.6 mm |
1.8" 46 mm |
71° | 69° | 4" 100 mm |
8" 203.5 mm |
10.25" 254 mm |
732 mm | 18x1" |
| Mini | 17.25" 438.15 mm |
12.25" 312 mm |
1.8" 46 mm |
72° | 70° | 4.33" 110 mm |
8.8" 225 mm |
10.6" 269.2 mm |
800 mm | 20x1-1/8" |
| Junior | 18.75" 476.25 mm |
12.5" 317.5 mm |
1.8" 46 mm |
73rd | 72° | 4.33" 110 mm |
8.8" 225 mm |
10.6" 269.2 mm |
859.9 mm | 20x1-1/8" |
| Expert | 19.75" 501.65 mm |
13" 330.2 mm |
1.8" 46 mm |
73rd | 72° | 4.33" 110 mm |
8.8" 225 mm |
11" 279.4 mm |
883.8 mm | 20x1-3/8" |
| Expert XL | 20" 508 mm |
13.5" 353 mm |
1.8" 46 mm |
73rd | 72° | 4.7" 120 mm |
8.8" 225 mm |
11.5" 292.1 mm |
903 mm | 20x1.50" |
| Pro | 20.5" 520.7 mm |
14" 355.6 mm |
1.8" 46 mm |
74° | 72° | 4.7" 120 mm |
9.4" 238 mm |
11" 279.4 mm |
938 mm | 20x1.75" |
| Pro XL | 21" 533.4 mm |
14.15" 359.4 mm |
1.8" 46 mm |
74° | 72° | 4.7" 120 mm |
9.3" 238 mm |
11.5" 292.1 mm |
945.2 mm | 20x1.75" |
| Pro XXL | 21.5" 546.1 mm |
14.15" 359.4 mm |
1.8" 46 mm |
74° | 72° | 4.7" 120 mm |
9.3" 238 mm |
11.5" 292.1 mm |
969.5 mm | 20x1.75" |
| Cruiser | 21.5" 546.1 mm |
14.5" 368.3 mm |
1.8" 46 mm |
74° | 71° | 4.7" 120 mm |
10.6" 270 mm |
12" 304.8 mm |
964.5 mm | 24x1.75" |
The specifications of complete bikes are subject to change throughout the year due to parts upgrades or shortages, and modifications made throughout our production cycle to improve the quality of the bikes. The specifications shown in the photo and the list may therefore differ slightly.
Type
BMX Race
CHACOBI249
4 other products in the same category:
Customers who bought this product also bought:
Questions fréquentes
What age is a Mini BMX for?
The Mini format generally suits children aged about 5 to 8, depending on their height. Refer to the size guide: it's the rider's height, more than age, that matters.
Does the Mini BMX have 20" wheels?
Yes, the Mini already runs 20" wheels with a shortened frame and cranks suited to young legs, to prepare for the higher categories.
Is shipping free?
Yes: shipping is free within mainland France from €99 of purchase. Below that, the cost is shown at checkout according to weight and the chosen shipping method.
Can I pay in instalments?
Absolutely. You can pay for your purchases in 2 or 3 instalments with Alma, completely securely. The option appears automatically at checkout.
How long do I have to return an item?
You have 14 days after delivery to change your mind. The item must be new, unfitted and in its original packaging to be returned or exchanged.
Do you deliver to the French overseas territories (DOM-TOM)?
Yes, we also ship to the French overseas territories (DOM-TOM). Times and costs depend on the destination and parcel weight; the exact amount is calculated and shown before you confirm your order.
