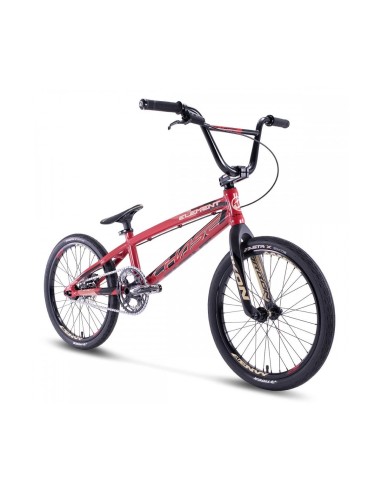

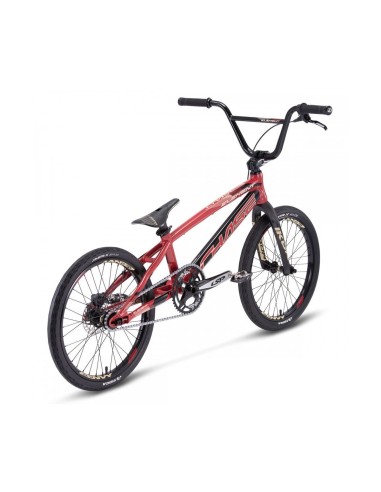

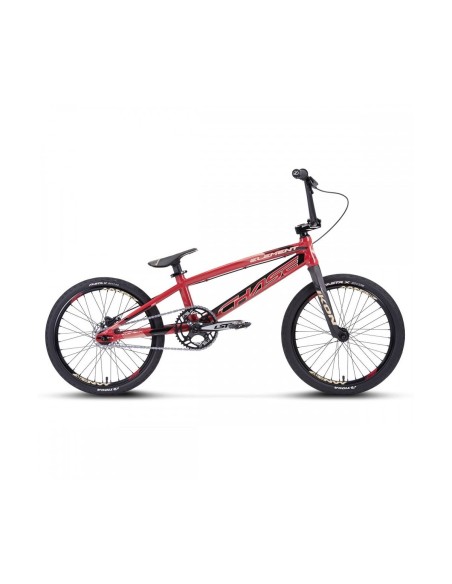

CHASE ELEMENT PRO XL SAND RED 2025

Chase has been pushing the boundaries for 11 years with its complete bikes and the latest edition of the Element, Element 10, is the best version ever offered.

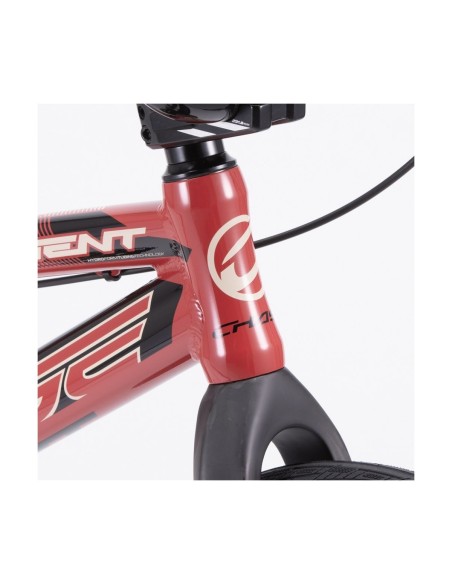

FRAME Chase Element Pro XL 21" Top tube, hydroformed 7005 T6 alloy, Aero system seatpost tube, closed rear dropouts, integrated chain tensioner system

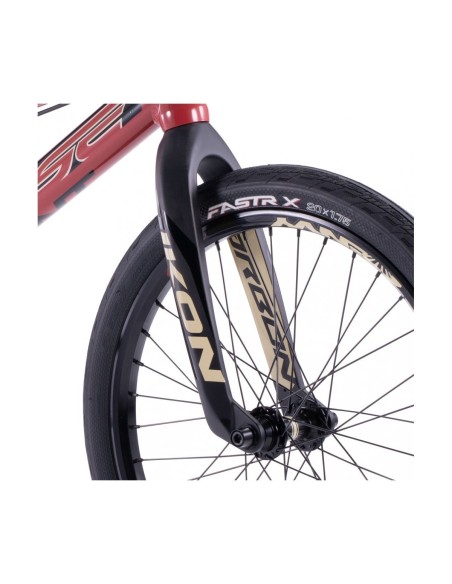

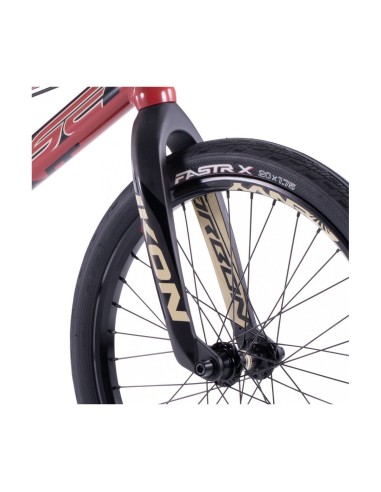

FORK Ikon Carbon Pro 1-1/8", 20mm rear dropouts, alloy head tube, rear dropouts and top cap
Gallows : Chase Element 31.8mm 53mm
HANDLEBAR : Chase Element 31.8 mm 8.0"

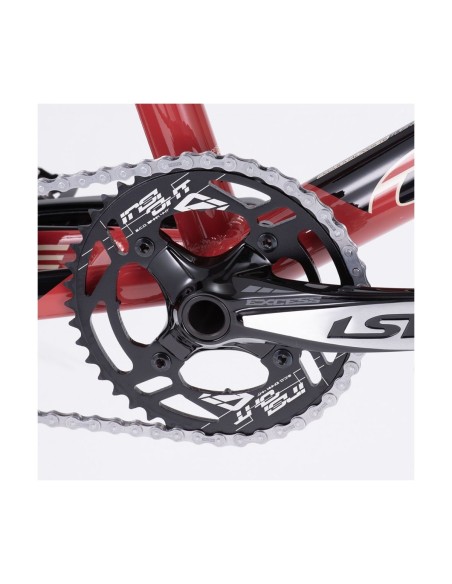

CROWNInsight 44 teeth 4 holes BCD 104 mm
CRANKSET : Excess LSP 180 mm, Press Fit BB86
HUBS Chase Element 3/8" bolts, 36H front, Chase Element 3/8" ISO cassette hub 36H, 3-pawl Triple Angle Engagement 24T rear pawls, 16-tooth sprocket
RIMS Sun Ringlé Envy Rims 20×1.75", 36H, no brake surface
TIRES Tioga Fastr X 20×1.75" front and 20×1.60" rear

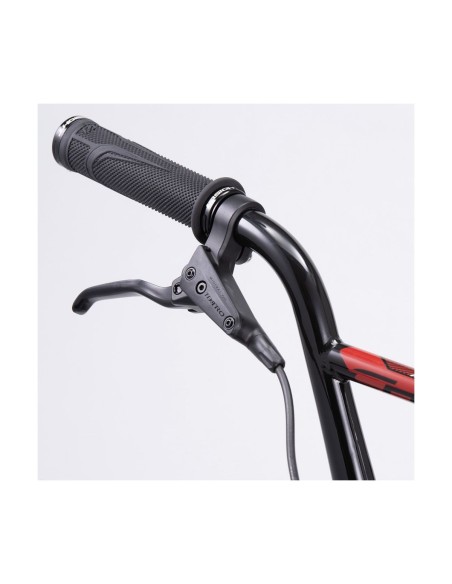

BRAKES Tektro hydraulic lever and caliper (resin pads), 120 mm disc, locking disc adapter

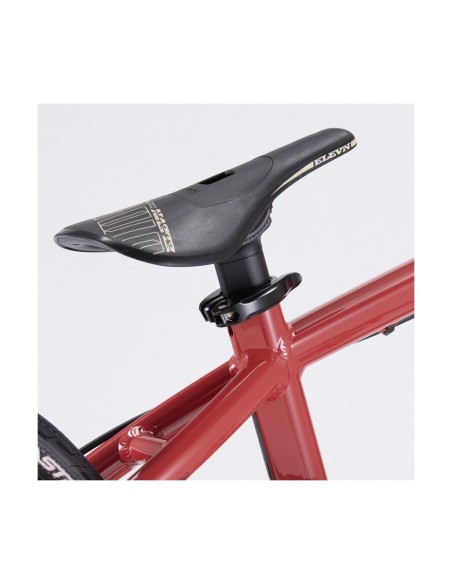

SADDLE Chase Aero seatpost and seatpost clamp / saddle ELEVN Pivotal PC
PEDALS : Nylon platform (Pictured with Shimano XT pedals, but this was only for photo purposes.

RECOMMENDED SIZE : 1.71m – 1.82m
WEIGHT 9.41 kg without pedals

SPECIFICATIONS:

FRAME	Chase Element ProXL 21" Top Tube 7005 T6 Aluminum, Integrated 1-1/8" Headset, Closed Dropouts
FORK	Ikon Pro 20" Carbon, Aluminum 1-1/8" Steerer Tube, 20mm Drop Out with 10mm Axle Adapter, Aluminum Top Cap
DIRECTION	Integrated IS 42/42 1-1/8" Annular Bearings
HANDLEBAR	Chase Element Chromo Height 8", Diameter 31.8mm, Width 28.5", 10° Back Sweep & 2° Up Sweep
HANDLES	Insight C.O.G.S 145mm Aluminum Rings with Laser Engraved Logo and PVC End Cap
Gallows	Chase Element 1-1/8" Fork Tube, Diameter 31.8mm, Length 53mm 6061 T6 Aluminum CNC Machined Laser Engraved Logo
HOUSING	Press Fit 68/73mm Annular Bearing
CROWN	Insight Alu 44 Teeth 4 Points 104mm 1/2"x3/32" 5mm
CRANKSET	Excess LSP 2 Pieces 180mm Hollowtech Aluminum, 4-Point Mounting, Steel Pedal Insert, Aluminum Bottom Bracket Bolts
PEDALS	Nylon Platform 9/16"
CHAIN	KMC Z1 Narrow 1/2"x3/32"
PINION	16 teeth
FRONT HUB	Chase Element 3/8" Screw, 36H, Annular Bearing
REAR HUB	Chase Element ISO Pro Hub, 36H, Sealed Bearing, 3/8" Screw, Steel Cassette with 3 Triple Engagement Angle Ratchets for 24T Tooth Sprocket
RAYS	Front 186mm, Rear 181mm, 14 Gauge, Steel
HEADS	14Gx12mm Steel
RIMS	Sun Rims Alu Envy Front 36H 20"x1.75" Without Brake Surface Schrader Valve
FRONT TIRES	Tioga Fastr X 20"x1.85" 60 TPI Triangle Rigid
REAR TIRES	Tioga Fastr X 20"x1.65" 60 TPI Rigid Triangle
INNER TUBE	20''x1.5"-1.75" Schrader Valve

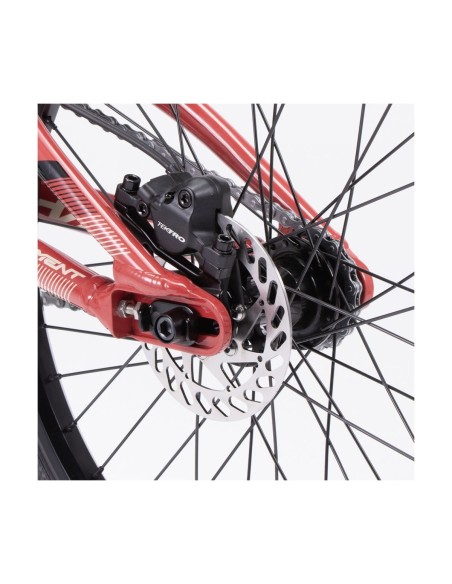

BRAKING	Tektro HD-M280 Hydraulic Brakes, Resin Pads, 120mm Discs
SADDLE	ELEVNPivotal PC
STEM	CHASE Pivotal aero 27.2x260mm aluminium
NECKLACE	Chase Aero Rapide Alu 31.8mm Laser Logo Engraving
TENSIONERS	Integrated Construction with New Disc Lock Adapter

The assembly with Shimano XT pedals is for photographic purposes only. The bikes are delivered with nylon pedals.

IMPORTANT NOTE: The washers supplied with the crankset EXCESS These washers must be installed between the pedal and the crank arm. No warranty claims will be accepted if the washers were not installed from the first use.

GEOMETRIES:


SIZES	TT	CS min	LR	HA	ITS	HT	SPL	BBH	WB	Wheels
Expert	20" 508 mm	13.5" 342.9 mm	1.5" 38.1 mm	73rd	70°	4.7" 120 mm	9.2" 236 mm	11" 279.4 mm	900.68 mm	20x1-3/8"
Pro	20.5" 520.7 mm	14.25" 362 mm	1.5" 38.1 mm	74°	72.5°	4.7" 120 mm	9.2" 236 mm	11.5" 292.1 mm	940.46 mm	20x1.5"
Pro XL	21" 533.4 mm	14.3" 363.3 mm	1.5" 38.1 mm	74°	72.5°	4.7" 120 mm	9.2" 236 mm	11.5" 292.1 mm	955.10 mm	20x1.75"
Pro XXL	21.5" 546.1 mm	14.5" 368.3 mm	1.5" 38.1 mm	74°	72.5°	4.7" 120 mm	9.2" 236 mm	11.5" 292.1 mm	973.39 mm	20x1.75"
Pro XXXL	22" 558.8 mm	14.5" 368.3 mm	1.5" 38.1 mm	74°	72.5°	4.7" 120 mm	9.2" 236 mm	11.5" 292.1 mm	993.01 mm	20x1.75"
Pro Cruiser	21.5" 546.1 mm	15.25" 387.3 mm	1.5" 38.1 mm	73rd	69.5°	4.7" 120 mm	9.8" 250 mm	12" 304.8 mm	973.65 mm	24x1.75"
Pro+ Cruiser	22" 558.8 mm	15.25" 387.3 mm	1.5" 38.1 mm	73rd	69.5°	4.7" 120 mm	9.8" 250 mm	12" 304.8 mm	987.67 mm	24x1.75"

Complete bike specifications are subject to change throughout the 2023 model year due to parts upgrades or shortages, and modifications made throughout our production cycle to improve complete bike quality. The specifications shown in the photo and listing may differ slightly as a result.
