THE CHASE Element has always been synonymous with true competition BMX. It incorporates the winning geometry of the ACT and RSP frames used by the team. CHASE For years, it has featured a 7005 aluminum frame with hydroformed tubes incorporating a closed rear dropout system that stiffens the setup for disc brakes, as well as a Press Fit bottom bracket. It also always comes equipped with a carbon fork. ANSWER, from a cockpit in31.8mm, hydraulic disc brakes, tires TIOGA FastR X, SUN RINGLÉ rims and components ELEVN, , EXCESS And INSIGHT, THE CHASE Element 2023 is the most complete bike for today's BMX competition!
FEATURES :
• 7005-T6 Aluminum Frame with Hydroformed Tubes
• Integrated steering and closed legs
• Carbon fork ANSWER Dagger
• Hydraulic disc brakes
• Tires TIOGA FastR X
• Handlebars and stem 31.8mm
• Crankset EXCESS LSP
• Press Fit Case
• Crown INSIGHT
• SUN RINGLÉ Envy rims
• Rear hub cassette ISO support
• Sealed bearings
• Saddle ELEVN
• Chain KMC
RECOMMENDED SIZE: 1.85m – 1.95m
WEIGHT: 9.55 kg with pedals
SPECIFICATIONS:
|
FRAME
|
CHASEElement Pro XXXL 22" Aluminum 7005 T6, Integrated 1-1/8" Steering, Integrated Turnbuckles, Closed Dropouts |
|
FORK
|
ANSWERCarbon Dagger, 10mm Axle, 1-1/8" Aluminum Steerer Tube |
|
DIRECTION
|
CHASE integrated, annular bearings |
|
HANDLEBAR
|
CHASE Element 31.8mm Cr-mo Height 8.5", Width 28.5", 10° Back Sweep, 2° Up Sweep |
|
HANDLES
|
INSIGHT C.O.G.S 145mm Lock-on |
|
Gallows
|
CHASE Element 31.8mm 53mm 6061 T6 Aluminum |
|
HOUSING
|
Press Fit 86/92 axle, 24mm, sealed bearings |
|
CROWN
|

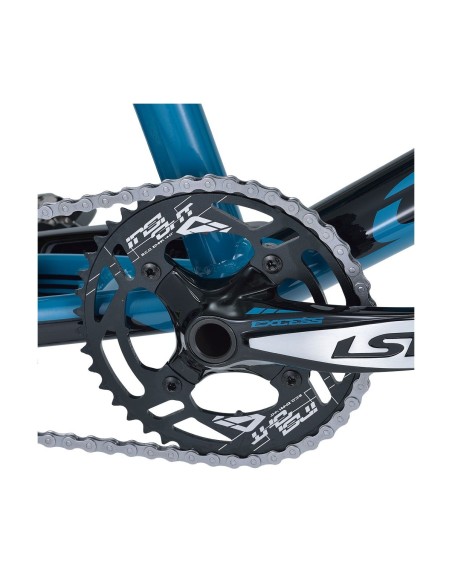

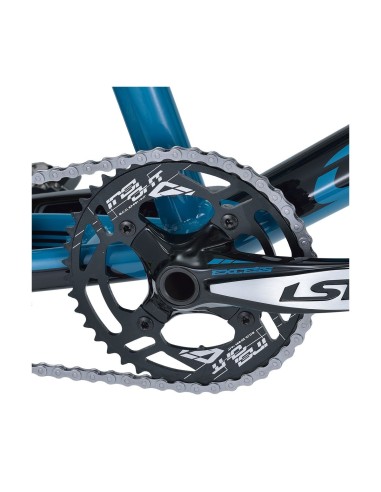

INSIGHT Aluminum 44 teeth 4-point BCD 104mm, 5mm thick |
|
CRANKSET
|
EXCESSLSP 2-piece 180mm aluminum, 4-point BCD 104mm, steel pedal inserts |
|
PEDALS
|
Nylon platform with 9/16" axle |
|
CHAIN
|
KMC Z1 narrow 1/2"x3/32" |
|
PINION
|
16 teeth |
|
FRONT HUB
|
Pro, 36H, sealed bearings, 10mm axle |
|
REAR HUB
|
Pro ISO, 36H, sealed bearings, 10mm shaft, steel cassette, 3 triple-engagement pawls on 24 internal teeth |
|
RAYS
|
14G |
|
HEADS
|
14Gx12mm Steel |
| RIMS | SUN RINGLÉ Envy 36H 20"x1.75" without braking surface |
|
TIRES
|
TIOGAFastR X 20"x1.75" front / 20"x1.60" rear |
|
ROOMS
|
20’’x1.50’’/1.75” Schrader Valve |

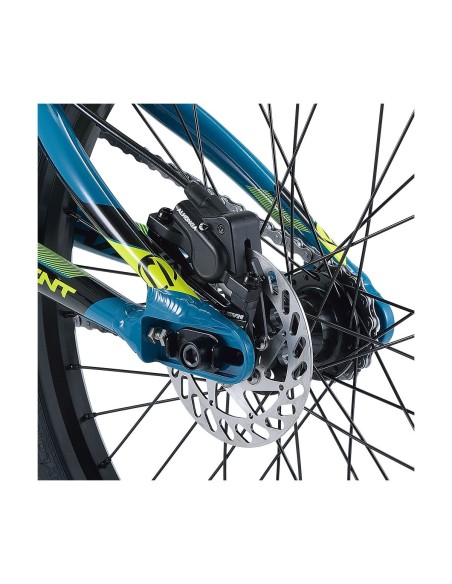

| BRAKING | Hydraulic, 120mm disc, resin pads compatible with Shimano B01S, Disc Lock adapter |
|

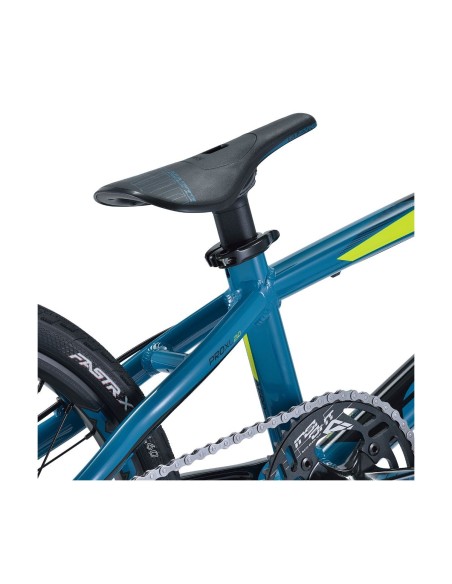

SADDLE
|
ELEVNPivotal PC |
|
STEM
|
CHASE Pivotal aero 27.2x260mm aluminium |
|
NECKLACE
|
CHASE aero27.2mmQR aluminum |
The assembly with Shimano XT pedals is for photographic purposes only. The bikes are delivered with nylon pedals.
IMPORTANT NOTE: The washers supplied with the crankset EXCESS These washers must be installed between the pedal and the crank arm. No warranty claims will be accepted if the washers were not installed from the first use.
GEOMETRIES:
| SIZES | TT | CS min | LR | HA | ITS | HT | SPL | BBH | Wheels |
| Expert | 20" 508 mm |
13.5" 342.9 mm |
1.5" 38.1 mm |
73rd | 70° | 4.7" 120 mm |
9.2" 236 mm |
11" 279.4 mm |
20x1-3/8" |
| Pro | 20.5" 520.7 mm |
14.25" 362 mm |
1.5" 38.1 mm |
74° | 72.5° | 4.7" 120 mm |
9.2" 236 mm |
11.5" 292.1 mm |
20x1.5" |
| Pro XL | 21" 533.4 mm |
14.3" 363.3 mm |
1.5" 38.1 mm |
74° | 72.5° | 4.7" 120 mm |
9.2" 236 mm |
11.5" 292.1 mm |
20x1.75" |
| Pro XXL | 21.5" 546.1 mm |
14.5" 368.3 mm |
1.5" 38.1 mm |
74° | 72.5° | 4.7" 120 mm |
9.2" 236 mm |
11.5" 292.1 mm |
20x1.75" |
| Pro XXXL | 22" 558.8 mm |
14.5" 368.3 mm |
1.5" 38.1 mm |
74° | 72.5° | 4.7" 120 mm |
9.2" 236 mm |
11.5" 292.1 mm |
20x1.75" |
| Pro Cruiser | 21.5" 546.1 mm |
15.25" 387.3 mm |
1.5" 38.1 mm |
73rd | 69.5° | 4.7" 120 mm |
9.8" 250 mm |
12" 304.8 mm |
24x1.75" |
| Pro+ Cruiser | 22" 558.8 mm |
15.25" 387.3 mm |
1.5" 38.1 mm |
73rd | 69.5° | 4.7" 120 mm |
9.8" 250 mm |
12" 304.8 mm |
24x1.75" |
Complete bike specifications are subject to change throughout the 2022 model year due to parts upgrades or shortages, and modifications made throughout our production cycle to improve complete bike quality. The specifications shown in the photo and the parts list may differ slightly as a result.
Type
BMX Race
Genre
Disc brakes
