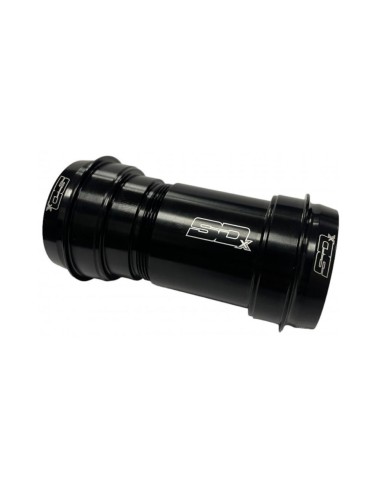

SD BB30 Spinning Bottom Bracket - 24mm
This SD Spinning bottom bracket is CNC machined from aluminum. It allows the installation of a crankset equipped with a 24mm axle on a frame with a bottom bracket shell that has an external width of 68mm and an internal diameter of 42mm.

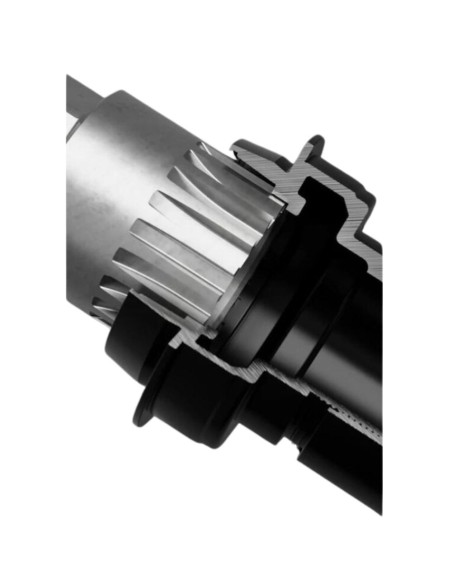

This housing is unique in that it uses bearings with a tapered outer cage. Therefore, the bearings can only be mounted in one direction within the cups. The cups are also marked "OUT" to indicate the outer side. This technology enables automatic coaxialization to improve power output. Its easy maintenance ensures trouble-free operation over extended periods, while the angular contact further enhances its reliability and longevity.

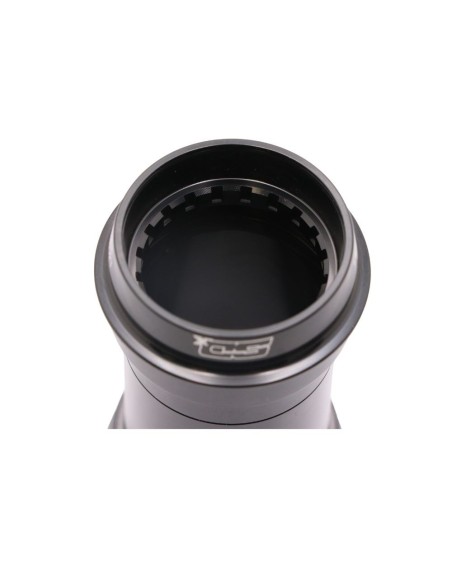

For mounting the housing, it features an internal recess with 20 splines on each side for inserting a key designed for a square-shaft type housing. This locking mechanism allows for easy installation. Its threaded structure limits the intrusion of foreign objects and increases the rigidity of the housing.
FEATURES
- Case type: BB30
- Material: Aluminum
- Mounting: Screwed
- Inner diameter for the axle: 24mm
- Housing diameter: 42mm
- Width: 68mm

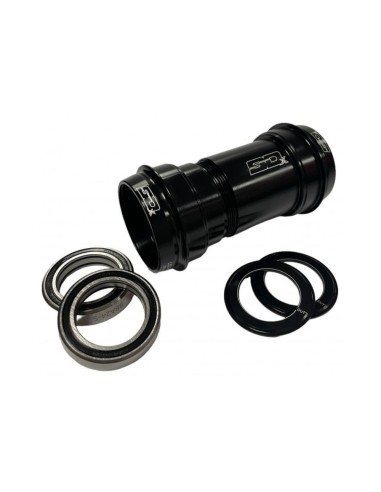

- Bearings: A2436RS / BBA24-S
- Tightening torque (max): 40Nm
- Weight: 118g
Modèle
PF 30 case
PESD1023
4 Items
4 other products in the same category:
Questions fréquentes
Which bottom-bracket standard for my BMX?
The common standards are American (Mid) and Euro. The bottom bracket must match the crank spindle and the frame: measure the shell width and check the spindle type before buying.
Is shipping free?
Yes: shipping is free within mainland France from €99 of purchase. Below that, the cost is shown at checkout according to weight and the chosen shipping method.
Can I pay in instalments?
Absolutely. You can pay for your purchases in 2 or 3 instalments with Alma, completely securely. The option appears automatically at checkout.
How long do I have to return an item?
You have 14 days after delivery to change your mind. The item must be new, unfitted and in its original packaging to be returned or exchanged.
Do you deliver to the French overseas territories (DOM-TOM)?
Yes, we also ship to the French overseas territories (DOM-TOM). Times and costs depend on the destination and parcel weight; the exact amount is calculated and shown before you confirm your order.
