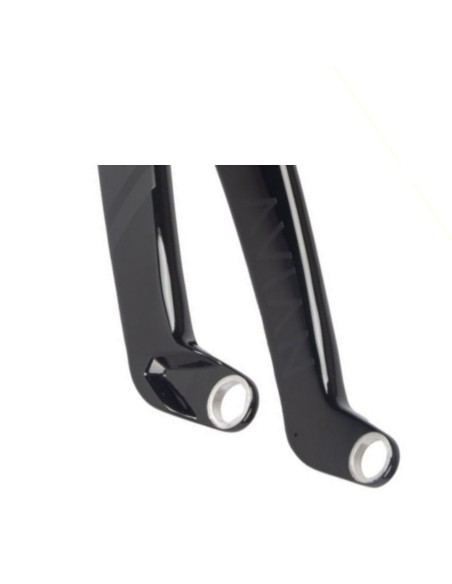

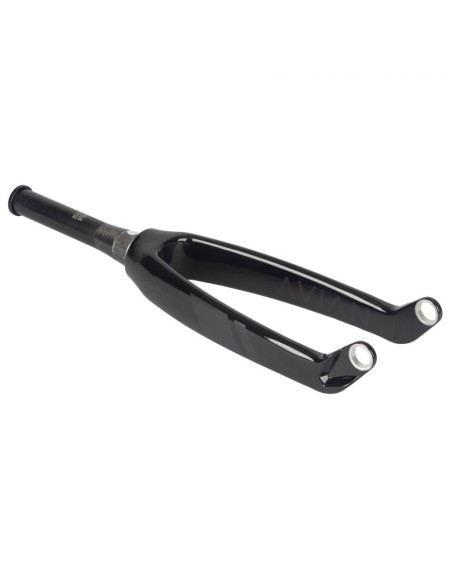

AVIAN FORK VERSUS TAPERED
Rigorously tested and validated by numerous elite riders worldwide, the AVIAN Versus carbon fork is manufactured using Toray carbon fibers, recognized as an industry leader for their superior strength compared to other types of weave.
It features a 4mm thick aluminum steerer tube with an internal threaded clamping system, eliminating the need for expansion plugs and star nuts that often compromise fork strength. This tapered version is perfectly suited to frames with a 1-1/8" tapered head tube at the top and a 1.5" tapered head tube at the bottom.
This version has 20mm legs; if you wish to switch to 10mm, we offer a reducer kit sold separately.
For optimal installation, it is recommended to use the 20mm through shaft with a minimum length of 116.5mm
IN DETAIL:
- Material: Carbon (legs) / 7005 series aluminum (pivot)
- Pivot diameter: 1-1/8" - 1.5" (Tapered)
- Wheel size: 20"

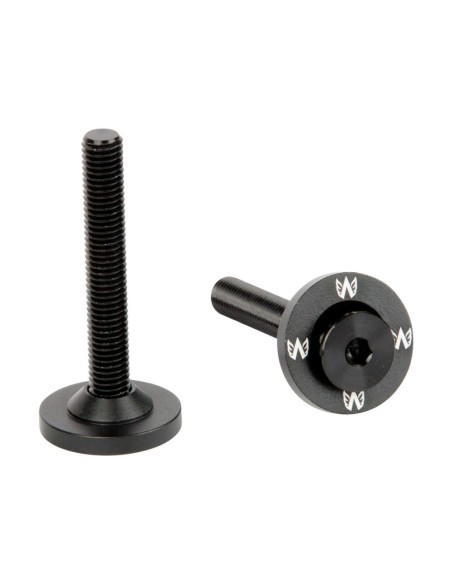

- Compression screw: M10x75mm (Max tightening torque 5 Nm)
- Axle: 20mm
- Offset: 32mm
- Pivot length: 170mm
- Fork height: 303mm
- Leg width: 8mm
- Finish: UD Gloss
- Weight: 618g
Type
Carbon
4 other products in the same category:
Customers who bought this product also bought:
Questions fréquentes
Chromoly or carbon for a BMX Race fork?
The carbon fork lightens the front end and filters vibration, favoured in competition. Chromoly is tougher and more affordable, ideal for training and young riders.
How do I check fork compatibility?
Check the steerer diameter (1-1/8" standard), the wheel size (20" or 24") and the brake type (V-brake and/or disc mounts) before any replacement.
Is shipping free?
Yes: shipping is free within mainland France from €99 of purchase. Below that, the cost is shown at checkout according to weight and the chosen shipping method.
Can I pay in instalments?
Absolutely. You can pay for your purchases in 2 or 3 instalments with Alma, completely securely. The option appears automatically at checkout.
How long do I have to return an item?
You have 14 days after delivery to change your mind. The item must be new, unfitted and in its original packaging to be returned or exchanged.
Do you deliver to the French overseas territories (DOM-TOM)?
Yes, we also ship to the French overseas territories (DOM-TOM). Times and costs depend on the destination and parcel weight; the exact amount is calculated and shown before you confirm your order.
