Réf. RAPTOR-GS-PRO2XL
Out-of-Stock

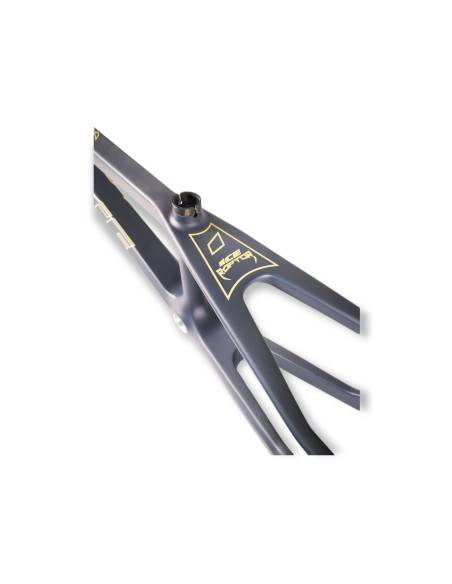

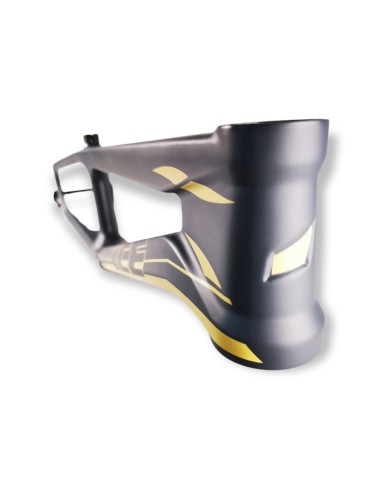

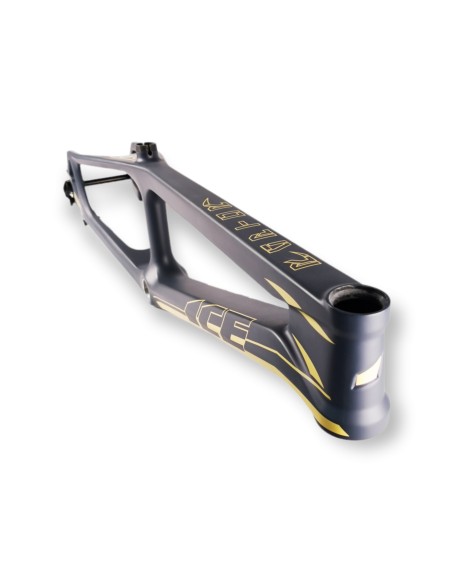

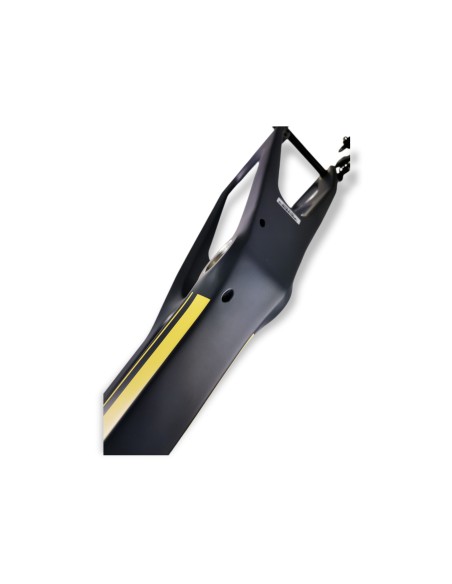

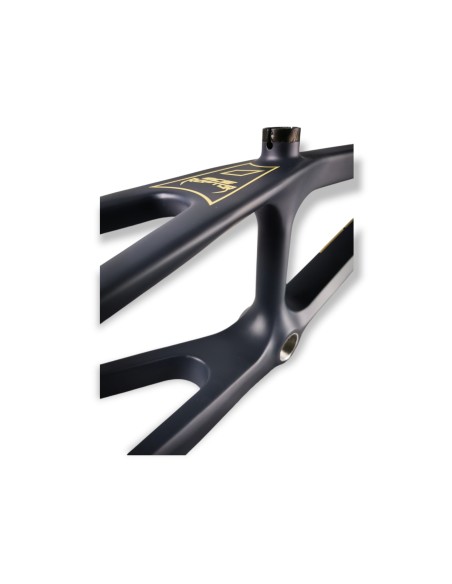

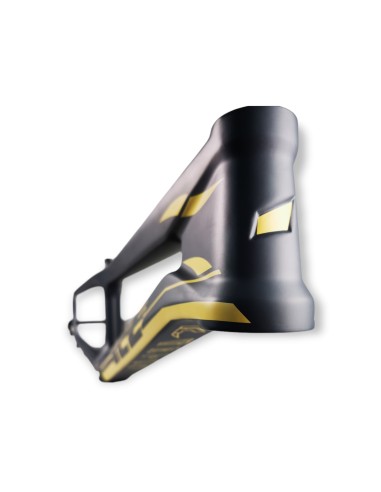

ICE RAPTOR Grey/Sand carbon BMX frame with IRC system
Out-of-Stock
€1,495.00
VAT included
This purchase earns you €89.70 in rewards, which you can convert into a voucher to use on your next order.
Shipping in 24/72hFrance & Europe
Pay in 2× / 3×secured with Alma
Expert adviceat your service
Satisfied or refunded14-day returns
ICE RAPTOR CARBON BMX Frame
Frame kit sold with axle + IRC ''Ice Roller Coaster'' chain tensioners and Ø15mm thru-axle.
This frame is manufactured using advanced technological processes from the highest quality Toray T700 + T800 carbon fibers (T800 used for reinforcement). Very few brands use T800.
The frame is molded in 2 parts which are then glued together during manufacturing.
The glue used is a high-quality American glue called "9432"
Specific geometry:

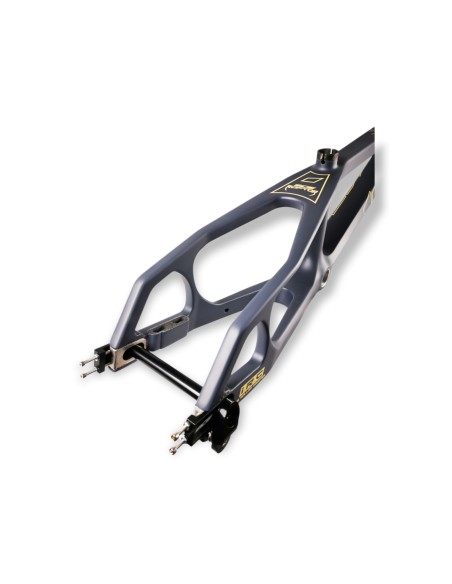

The rear stays are of the "ARCH" type, designed to accommodate a Flatmount brake caliper, resulting in a very discreet and clean look. This system allows for the mounting of a 140mm diameter brake disc.
Frame dropouts designed for mounting a Ø 15mm thru axle (Ø 15mm axle supplied with the frame kit) or a 10mm axle (adapter cups supplied with).
Technology and standards used:

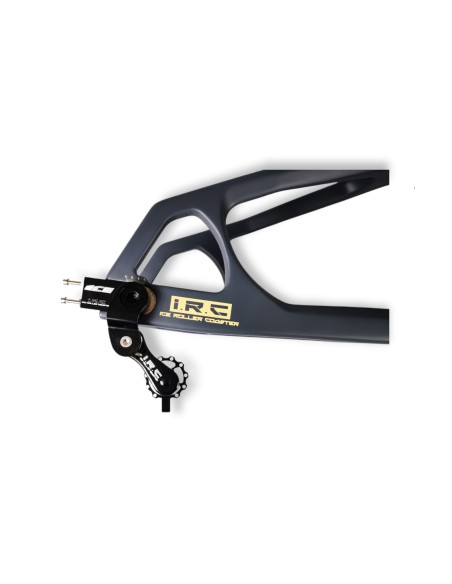

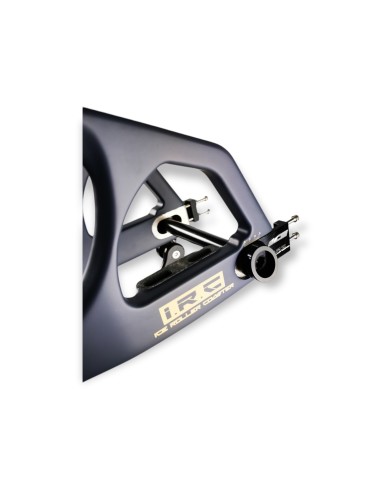

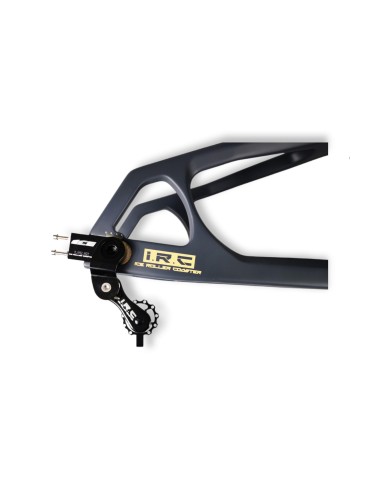

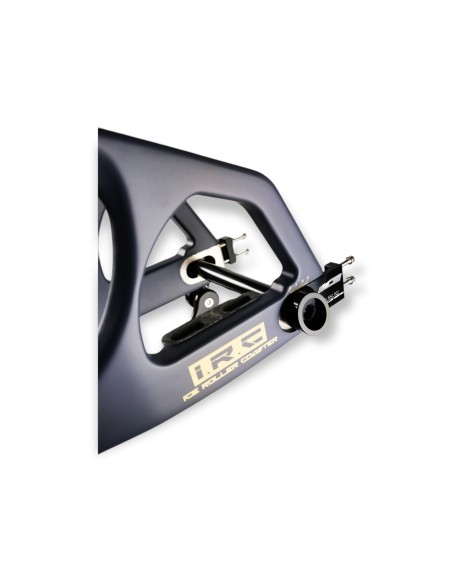

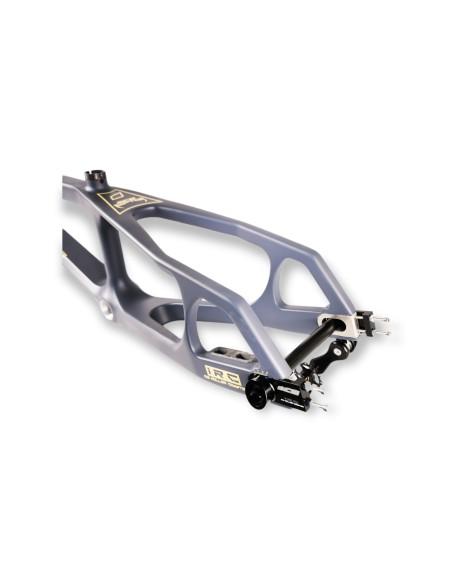

Our RAPTOR frame comes equipped with our revolutionary IRC system ( ICE Roller Coaster / integrated spring chain tensioner). This system eliminates any stiff spots in the chain and, most importantly, allows you to maintain precise rear wheel setback, meaning you no longer need to remove the rear wheel to change your chain. This saves valuable time when changing a sprocket between runs!
The whole thing is easy to assemble.
- Internal cable routing with carbon "pipeline" style guide for smooth routing and easy installation. Cable entry at the head tube and exit on the inside of the left seat stay for a direct connection to your brake caliper.
- Conical steering head socket with integrated standard (SHIS: IS42/28.6-IS52/40)
(Also accepts the mounting of a fork with a 1 1/8" steerer tube using a reducing fork crown)

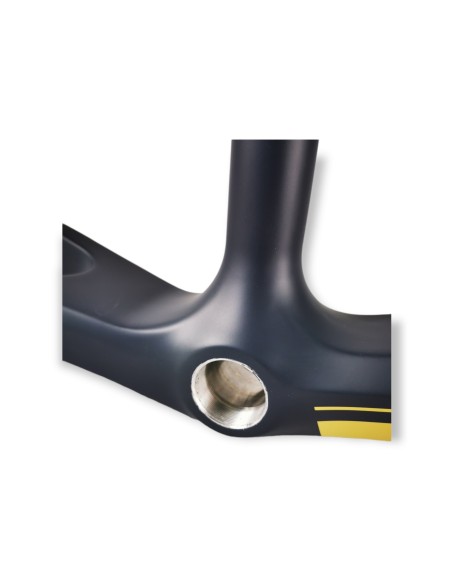

- External bottom bracket, BSA type, 24 mm (Shinano Hollowtech II)
Laboratory-proven durability:
All our frames undergo a battery of laboratory tests, with requirements that are higher than the usual data needed to meet standards, to ensure you get a durable product. (Frontal/rear impact tests, fatigue/torsion tests, etc.)
15 mm of actual adjustment for the rear wheel / Precise rear wheel adjustment:
Adjustable from 365 to 380mm in PRO size
Adjustable from 375 to 390mm in PRO XL size
Adjustable from 385 to 400mm in PRO XXL and PRO 3XXL sizes
Accepts a seatpost with a diameter of 27.2 mm
Seat clamp Ø 31.8mm
Weight: 1.380 kg in size PRO XXXL
Available in sizes: PRO, PRO XL, PRO 2XL, PRO 3XL
Color: Matte Gray / Sand decals
Note that our RAPTOR frame does not have V-Brake adapters; this frame is designed for disc brakes only.
Type
Carbon
Modèle
Euro case
Genre
Disc brakes
RAPTOR-GS-PRO2XL
