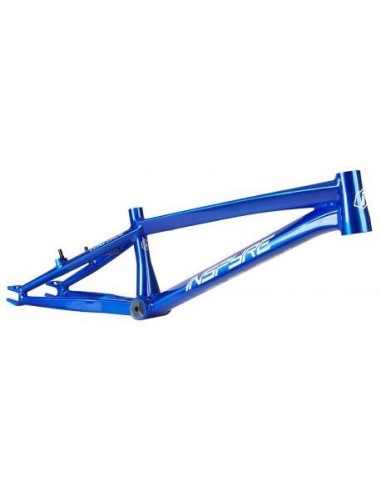

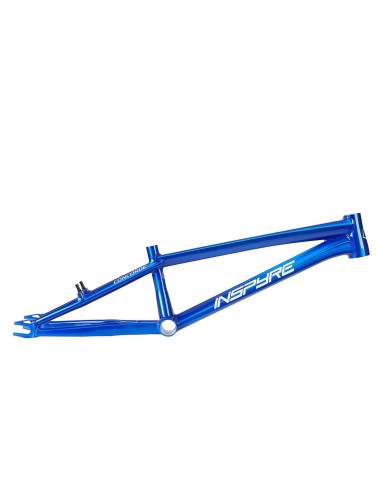

Inspyre Concorde Trans Blue Frame

The Concorde was developed in collaboration with Jeremy Rencurel. Jeremy wanted a bike that was stable at high speeds but also very playful. Challenge accepted! Jeremy took second place at the French Time Trial Championships and reached the final of the Elite World Championships for the second year in a row. It's entirely constructed with hydroformed tubes of varying thicknesses, adding material only where needed for increased stiffness without compromising comfort. The wide 86mm bottom bracket shell, combined with the "flatspin" downtube, provides increased lateral stiffness, allowing for optimal acceleration. The tapered head tube has a larger contact surface with the top tube and downtube, offering greater strength and improving the stiffness of the front triangle. The rear dropouts feature integrated chain tensioners for precise chain adjustment. These dropouts are compatible with 10mm, 15mm, and 20mm brakes. Disc brake compatible thanks to the Pride Racing V3 dropout and Pride Racing mounting bracket. Using other disc brake adapters besides the Pride V3 footplate + footplate voids the warranty.

Features :

• Heat-treated 6061-T6 aluminum
• Steering head: CNC machined, tapered
• Top Tube: Hydroformed Double Butted, variable thickness
• Downtube: Hydroformed Triple Butted, variable thickness
• AR Bases: Rectangular Tapered Large
• Seat Stay: Triangular, double-butted, variable thickness
• Seat Tube: Hydroformed Double Butted with variable thickness "Hourglass"
• Bottom bracket: CNC machined
• Standard Press Fit BB86

Rear bracket: Compatible with 10mm / 15mm and 20mm with integrated tensioner

Case Standard	BB86
Saddle Collar	31.8
Diameter (mm)	27.2
