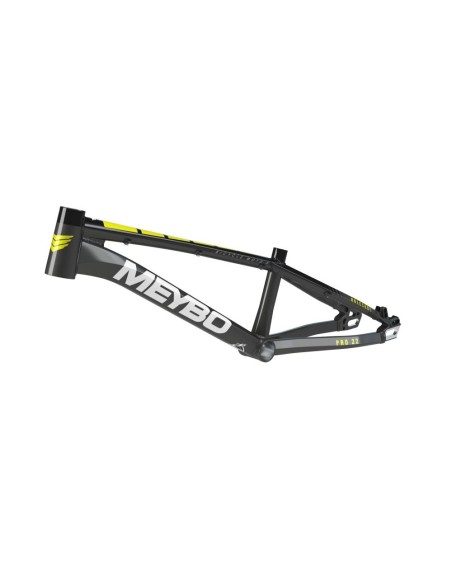

Meybo Holeshot 2025 Frame - Grey/Black/Lime

MEYBO HSX AL 2025 FRAME

The highest-performing frame in the MEYBO range, the HSX AL, is a true competition machine. This frame is a perfect choice for those seeking top performance without necessarily opting for a carbon frame. Featuring increased stiffness and cutting-edge technology, this new HSX aluminum frame is the fastest in Meybo's aluminum frame lineup. Lightweight, responsive, stable, and stiff, it offers all the desired advantages in a single product.

Its geometry has been specially designed for championship and world cup tracks, offering a perfect balance between maneuverability and stability at very high speeds.

For the 2025 model, the Meybo HSX AL retains the same features as the 2024. Regarding braking, this frame is only compatible with flat-mount calipers. This means the brake caliper is directly attached to the rear dropouts. For a clean finish, two mounting bolts pass through the rear dropouts to secure the brake caliper. This configuration only works with 120mm rotors; the frame is not compatible with 140mm rotors. The frame comes with 1, 2, and 4mm spacers to align your rotor if you are not using an HSX-specific single-speed hub.

Depending on the size, the bottom bracket standard changes. For Expert, Expert XL, and Pro 21 sizes, it's the BB86 standard (41mm diameter). For larger sizes, there's a Pressfit BB386 (46mm diameter). This provides greater rigidity and reduces twisting while pedaling.

To maintain a consistent chainstay length regardless of the gearing used, this frame comes with a 15mm thru-axle. This significantly increases the stiffness of the rear end of the frame. This configuration requires a rear hub with a 15mm axle. The axle itself is made of 7005 aluminum and is entirely CNC machined.

To maintain consistent chain tension, Meybo has designed a chain tensioner that ensures optimal power transmission regardless of the gear ratio. For optimal chain tension adjustment with this tensioner, it is recommended to use a chain with half-links for more precise control.

In summary, the HSX retains the same tubing as the 2024 model. It's made of high-end aluminum (6061-T6) with multiple hydroformed tube thicknesses to maximize weight reduction without compromising strength. A new rear dropout is designed to accommodate a fixed thru-axle and a flat-mount disc brake.

Designed and built for competition, whether at high speed on a World Cup track or in first position on an indoor circuit, the HSX is a formidable weapon for racing.

SPECIFICATIONS:

• 100% 6061-T6 aluminum frame
• Hydroformed tubes with multiple thicknesses
• Compatible only with "Flat-mount" type hydraulic brakes
• Mounting only with 120mm discs.
• Supplied with 3 spacers (1, 2, 4mm) for aligning the brake disc
• Bottom bracket: BB86 or BB386 depending on the size - see table below
• Seatpost 25.4mm or 27.2mm depending on the size - see the table below
• It is possible to install a crankset with a 24 or 30mm axle
• Meybo chain tensioner integrated into the frame on the rear stay
• We recommend using a "half-link" chain for transmission adjustment.
• Supplied with a fixed 15mm thru-axle for the rear wheel - 7005 aluminum (fully CNC machined)

GEOMETRIES & SIZES
