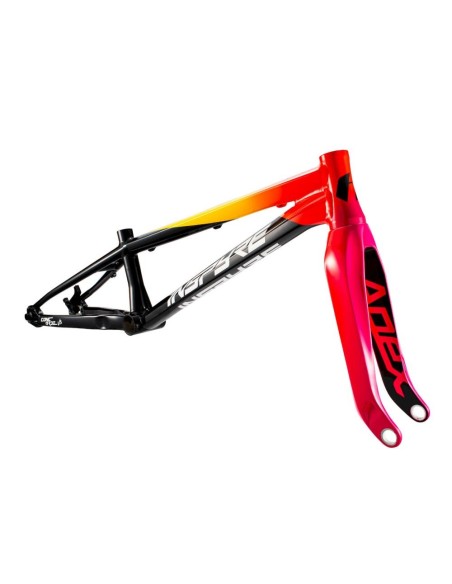

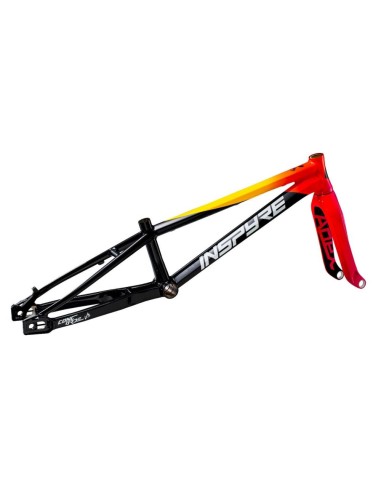

Kids Frame Kit Inspyre Concorde V3 fork black Sunblast

FRAME/FORK KIT INSPYRE CONCORDE V3

Discover the new Inspyre Concorde V3, which is establishing itself as one of the most advanced aluminum frames on the BMX Race market.

Each tube of the Concorde V3 is hydroformed to achieve an optimal balance between lightness, strength, and aerodynamics. This attention to detail is particularly evident in the innovative design of the intersection between the downtube, bottom bracket, and chainstays. This intersection is the result of precise engineering by the Inspyre team.

The generous cross-section and smooth transitions ensure optimal load distribution, creating a structure with exceptional lateral stiffness. This increased stiffness significantly improves pedaling efficiency, ensuring optimal power transfer to the drivetrain. By minimizing frame flex, the Concorde V3 maximizes energy return, delivering an unparalleled riding experience on BMX tracks. The use of variable-wall tubing represents a major advancement, allowing for a weight reduction of the Concorde V3 without compromising its overall strength and stiffness.

The Concorde V3 is distinguished by its flat welds, resulting in an exceptionally high-quality finish. No detail has been overlooked in the paintwork, with the application of stickers under clear coat adding an extra touch of refinement. Every element has been considered to ensure not only optimal performance but also a sleek and elegant appearance.

In accordance with the IS 45x45 standard, we recommend the use of headsets PRIDE RACING spokes that perfectly match the shape of the CNC-machined hourglass-shaped steering head. The Concorde's steering heads remain low, measuring 110 mm for children and 115 mm for adults, to lower the cockpit as much as possible, promoting an aggressive position at the start and on the track.

The oversized chainstays provide increased stiffness, and our chainstay assembly with a wide bottom bracket shell further contributes to this robustness. The chainstays fit perfectly across the entire width of the bottom bracket shell for maximum lateral stiffness.

The Junior, Expert, and Expert XL versions feature specific tubing adapted to the morphology of young riders, ensuring a bike that is less stiff and lighter than the adult version. After all, our young riders are lighter and less powerful, so why offer the same tubing and frame ?

The SWELL V2 dropouts offer a true 25mm adjustment range. The 7075-T6 aluminum internal plates that make up the dropout remain in place even when you remove the wheel, providing optimal ease of use during maintenance. The chain tensioning system uses two CNC-machined dials, all mounted on a stainless steel axle. The disc brake dropout is post-mount for a 120mm rotor; however, it is possible to run a 140mm rotor with a +20mm riser. This dropout comes standard for a 15mm thru-axle (sold separately). 15mm to 10mm adapters are included with the frame.

In addition, this dropout is compatible with the ADS chain tensioner, offering the possibility to adjust your wheelbase regardless of your gearing.

The internal construction of the APEX Carbon Tapered fork is specifically designed and optimized for exceptional strength. It utilizes different types of carbon fibers, chosen for their specific properties, to best manage various loads in the areas where they occur, such as lateral loads, torsion, and impacts. Its steerer tube is made of 7075-T6 aluminum, an alloy renowned for its high strength. This characteristic ensures not only excellent structural rigidity but also increased durability. The fork dropouts are CNC-machined from aluminum for optimal precision and designed to accommodate a 20mm thru-axle (not included). Complies with and exceeds the EN 16054 standard.

With this frameset, Inspyre redefines the standards of performance in BMX Race, offering riders an exceptional platform to push their limits on the track.

SPECIFICATIONS

• 100% AL66 aluminum frame (NEW)
• Apex Tapered Carbon Fork
• Hydroformed tubes with multiple thicknesses
• Compatible only with "Post Mount" type hydraulic brakes
• Bottom bracket: BSA 68 or BB86 depending on size - see table below
• Compatible with the Inspyre ADS chain tensioner
• Supplied with 15mm disc bracket and 15mm/10mm adapters
• 15mm axle not included - sold separately (reference: CAIN5026)

GEOMETRIES

The head tube angles and bottom bracket height are influenced by the choice of fork and tires. We meticulously calibrated our angles to ensure accuracy when paired with a Pride carbon fork and when using tires TIOGA Fastr or PowerBlock. This configuration guarantees precise angles and measurements. However, the use of alternative forks and tires may introduce a deviation, either positive or negative, in both heights and angles.

TECHNICAL SPECIFICATIONS
