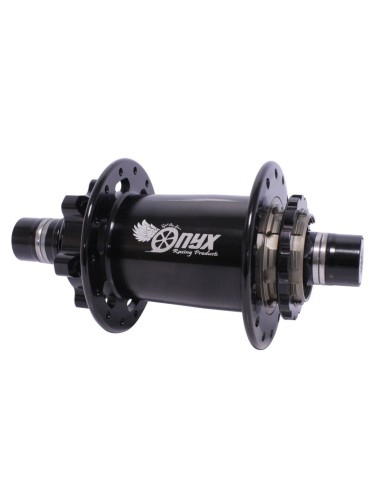

Machined from premium aluminum, the ONYX Pro rear hub offers BMX riders the renowned quality of ONYX products made in the USA. It features the ONYX Instant Engagement system, providing direct engagement with zero pedaling friction. It is mounted on hybrid-ceramic bearings that offer a very low coefficient of friction and excellent power transfer. It also includes a 6-bolt ISO disc mount for riders who wish to upgrade to disc brakes.
FEATURES :
• CNC machined 7075-T6 aluminum body
• Sealed hybrid-ceramic bearings
• ISO disc holder with 6 screws
• Standard Shimano aluminum freehub body
• Instant ONYX Engagement
• Aluminum axle body
• Tightening Allen screws
• Axle Diameter: 10mm
• Width: 110mm
• Drilling: 28 holes
• Weight: 419g
Pinion sold separately
NOTE : The color shade may vary slightly depending on the production batch.
ONYX hubs require regular maintenance to ensure optimal performance.
| A - Center width at flange, non-cassette side | 22.15mm |
|---|---|
| B - Center width at flange, cassette side | 35.22mm |
| C - Axle width | 110mm |
| Flange diameter, cassette side | 60mm |
| Flange diameter, non-cassette side | 60mm |
| Number of holes | 28 |
| Radius tension | 120kgf Max |
Modèle
Back
Perçage
28 holes
1 Item
