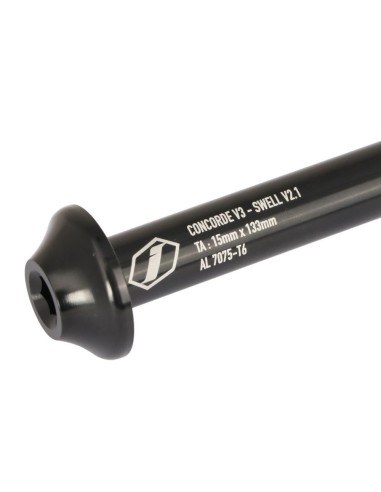

15mm AXLE INSPYRE CONCORDE
The Inspyre 15mm axle is specifically designed to allow integration of a hub and 15mm thru axle configuration on the Inspyre Concorde V3 frame.
The axle is CNC machined from 7075-T6 aluminum for a perfect finish and precision. It was specifically developed for the Inspyre Concorde V3 2025, which incorporates Swell V2.1. Its 133mm length was designed to achieve optimal contact with the frame dropouts, thus maximizing rear triangle stiffness while maintaining sufficient clearance for perfect hub compression within the frame without the need for additional washers.
It also guarantees excellent bike performance thanks to perfect support on the frame via the wide cones at both ends. The use of a 15mm thru-axle configuration also simplifies the installation and removal of your rear wheel.
INSTALLATION - ASSEMBLY
To install this axle you will simply need to remove the 15-10mm reducer cones supplied with the frame and replace your 10mm hub with a 15mm hub and install the 15mm thru axle with the help of an 8mm Allen key and you're done.
FEATURES
- Compatibility: Inspyre Concorde V3 - Swell V2.1
- Material: 7075-T6 Aluminum
- Diameter: 15mm
- Length: 133mm
- Clamping pattern: 8mm Allen head
- Weight: 89g
GUARANTEES - RECOMMENDATIONS
INSPYRE BICYCLES advises against using any other axle model on the Inspyre Concorde V3, as this may void the frame warranty and could cause accidents and damage to people and property. It is also recommended to have the installation checked by a professional.
Axe
15mm
CAIN5026
