Réf. CHACOBI277 ARRIVAL DATE: October 2, 2026

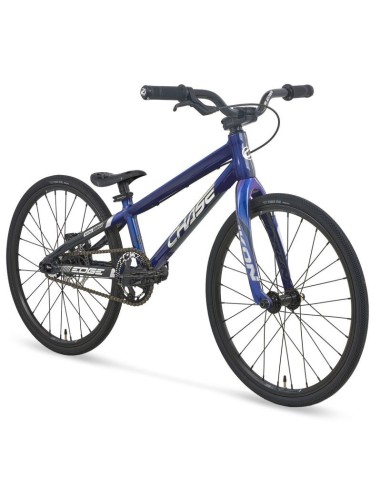

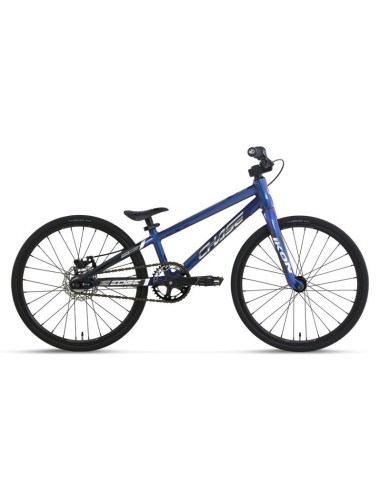

CHASE EDGE IKON MINI Dark Midnight

ARRIVAL DATE: October 2, 2026
€859.00
VAT included

The all-new CHASE Edge is a competition-ready BMX Racing bike , ideal for riders looking to get serious and progress their BMX Race riding .

This purchase earns you €51.54 in rewards, which you can convert into a voucher to use on your next order.
Close
Shipping in 24/72hFrance & Europe
Pay in 2× / 3×secured with Alma
Expert adviceat your service
Satisfied or refunded14-day returns


BMX CHASE EDGE ikon 2027

The brand new CHASE Edge is a BMX Racing Ready for competition, ideal for drivers looking to get serious and improve their driving skills. BMX Race.

Already renowned for its refined design, the new Edge has been further improved: it now features Shimano hydraulic disc brakes (on Junior sizes and larger; mechanical for Micro and Mini models), new 2-piece aluminum Chase cranksets with a 24mm axle (Expert XL and larger), optimized crank arm ratios and lengths, a two-tone paint scheme with new graphics, and closed dropouts with an integrated chain tensioning system. The BMX frame CHASE Edge is made from triple-butted hydroformed 6061 aluminum tubing and features an integrated head tube.

Other features of this BMX Racing bike include a 4130 chromoly steel fork and handlebars (on the Micro model), Ikon carbon fork options in two colors, double-walled rims, a cassette rear hub with a three-pawl engagement system, and Vee Rubber Speedster tires. All of these components make the CHASE Edge is a high-performance BMX Racing bike, perfectly suited for BMX Race and competition.

FEATURES :

  • FRAME: Chase Edge Mini, 17.25" 6061 T6 alloy top tube, closed rear dropouts
  • FORK: Ikon Mini/Junior 100% carbon, 1" steerer
  • STEM: Chase Edge 40mm Alu
  • HANDLEBAR: Chase Edge 2.25″ Aluminum
  • HEADSET: Integrated, sealed bearings
  • SPROCKET: Insight 36 teeth, 5 holes, 110 mm center distance, 1/2" x 3/32", 3 mm thickness, Aluminum
  • CRANKSET: Chase Edge 3-piece, 140mm aluminum cranks with laser-engraved logo, Cr-mo chainring bolts
  • HUBS: 28 holes, sealed bearings, 3/8" bolt-on axle (front); ISO 28 holes, sealed bearings, 3/8" bolt-on axle, steel cassette body with 3 triple-angle engagement pawls for 24-tooth sprocket (rear)
  • RIMS: Chase Edge Aluminum 451 double wall 20"x1-1/8", Presta valve, 28 holes (front and rear)
  • TIRES: Vee Rubber SpeedSter 20"x1-1/8", rigid beads
  • BRAKES: Adapter for 140 mm disc, mechanical disc brake caliper and 140 mm disc


RECOMMENDED SIZE: 1.10m – 1.25m
WEIGHT 7.59 kg without pedals

SPECIFICATIONS
FRAME
Chase Edge Mini 17.25" NEW Top Tube 6061 T6 Aluminum, Firm Drop Out, Integrated 1" Steering, Stickers Under Clear Coat
FORK
Ikon Mini/Junior Full Carbon, 1" Head Tube
DIRECTION
Integre IS 42/42 1" Gearbox with Annular Bearings
HANDLEBAR
Chase Edge Alu Height 2.25", Width 20", 8° Back Sweep & 2° Up Sweep
HANDLES
Insight C.O.G.S 115mm Aluminum Rings with Laser Engraved Logo and PVC End Cap
Gallows
Chase Edge 1" Fork Tube, Diameter 22.2mm, Length 40mm, 6061 T6 Aluminum
HOUSING
Euro Square 113mm Annular Bearings
CROWN
Insight Alu 36 Teeth 5 Points 110mm 1/2"x3/32" 3mm
CRANKSET
Chase Edge 3 Pieces 140mm Aluminum Laser Logo Engraving, Cr-mo Bottom Bracket Screws
PEDALS
Mini 9/16" Polished Platform with Molded Pins, Steel Axle, Ball Bearings
CHAIN
KMC Z1 Narrow 1/2"x3/32"
PINION
16 steel teeth
FRONT HUB
28H, Annular Bearings, 3/8" Screw
REAR HUB
ISO 28H, Annular Bearing, 3/8" Screw, Steel Cassette with 3 Triple Engagement Angle Ratchets for 24T Tooth Sprocket
RAYS
14 Gauge, Steel
HEADS
16mm, 14 Gauge, Steel
FRONT RIM
Chase Edge Alu 451 Double Wall 24H 20"x1-1/8" Presta Valve
REAR RIM
Chase Edge Alu 451 Double Wall 24H 20"x1-1/8" Presta Valve
FRONT TIRE
Vee Rubber SpeedSter 20"x1-1/8" Rigid Rod
REAR TIRE
Vee Rubber SpeedSter 20"x1-1/8" Rigid Rod
ROOMS
20" x 1-1/8" Presta Valve
BRAKING Aluminum Micro/Mini Lever, 140mm Adapter, with Mechanical Caliper and 140mm Disc

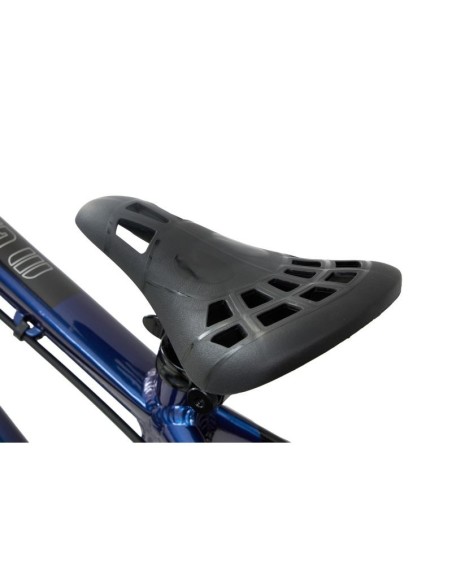

SADDLE Mini Combo Aluminum Stem/Nylon Saddle
STEM Mini Combo Aluminum 25.4mm
NECKLACE Chase Edge Rapid Aluminum 28.6mm
TENSIONER Integrated Construction with New Disc Lock Adapter



GEOMETRIES
Sizes TT CS min LR HA ITS HT SPL BBH WB Wheels
Micro 16.25"
412.75 mm
10.85"
275.6 mm
1.8"
46 mm
71° 69° 4"
100 mm
8"
203.5 mm
10.25"
254 mm
732 mm 18x1"
Mini 17.25"
438.15 mm
12.25"
312 mm
1.8"
46 mm
72° 70° 4.33"
110 mm
8.8"
225 mm
10.6"
269.2 mm
800 mm 20x1-1/8"
Junior 18.75"
476.25 mm
12.5"
317.5 mm
1.8"
46 mm
73rd 72° 4.33"
110 mm
8.8"
225 mm
10.6"
269.2 mm
859.9 mm 20x1-1/8"
Expert 19.75"
501.65 mm
13"
330.2 mm
1.8"
46 mm
73rd 72° 4.33"
110 mm
8.8"
225 mm
11"
279.4 mm
883.8 mm 20x1-3/8"
Expert XL 20"
508 mm
13.5"
353 mm
1.8"
46 mm
73rd 72° 4.7"
120 mm
8.8"
225 mm
11.5"
292.1 mm
903 mm 20x1.50"
Pro 20.5"
520.7 mm
14"
355.6 mm
1.8"
46 mm
74° 72° 4.7"
120 mm
9.4"
238 mm
11"
279.4 mm
938 mm 20x1.75"
Pro XL 21"
533.4 mm
14.15"
359.4 mm
1.8"
46 mm
74° 72° 4.7"
120 mm
9.3"
238 mm
11.5"
292.1 mm
945.2 mm 20x1.75"
Pro XXL 21.5"
546.1 mm
14.15"
359.4 mm
1.8"
46 mm
74° 72° 4.7"
120 mm
9.3"
238 mm
11.5"
292.1 mm
969.5 mm 20x1.75"
Cruiser 21.5"
546.1 mm
14.5"
368.3 mm
1.8"
46 mm
74° 71° 4.7"
120 mm
10.6"
270 mm
12"
304.8 mm
964.5 mm 24x1.75"


The specifications of complete bikes are subject to change throughout the year due to parts upgrades or shortages, and modifications made throughout our production cycle to improve the quality of the bikes. The specifications shown in the photo and the list may therefore differ slightly.
