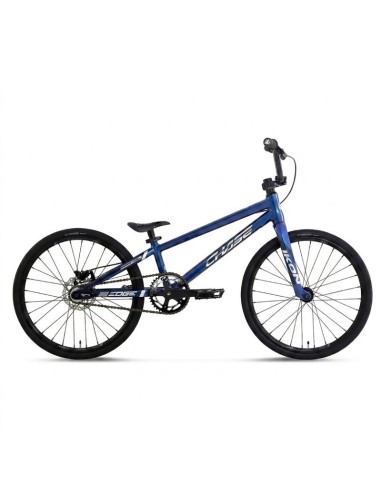

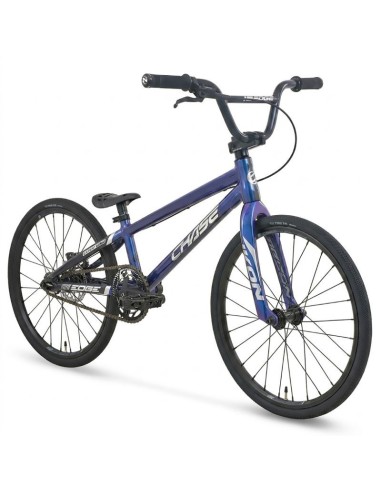

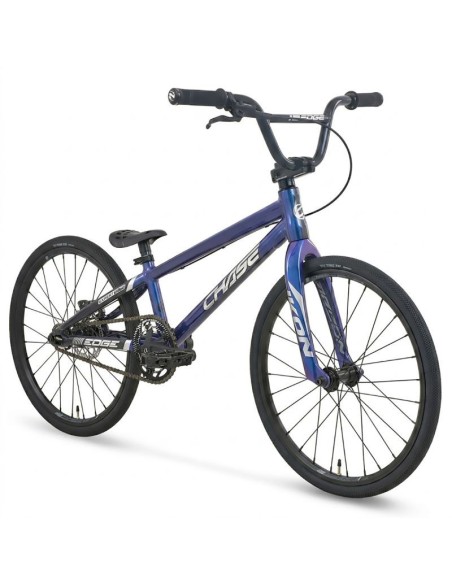

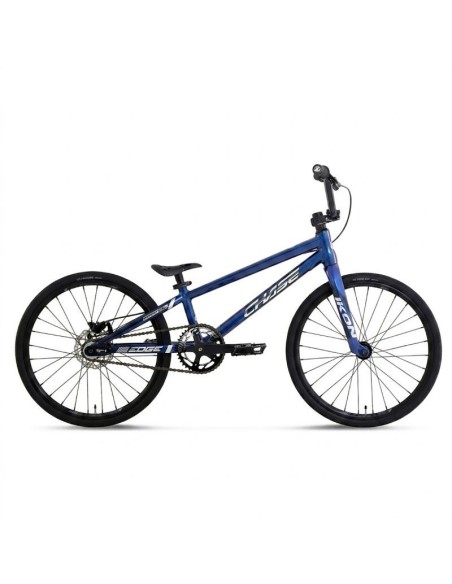

BMX CHASE EDGE ikon 2027

The brand new CHASE Edge is a BMX Racing Ready for competition, ideal for drivers looking to get serious and improve their driving skills. BMX Race.

Already renowned for its refined design, the new Edge has been further improved: it now features Shimano hydraulic disc brakes (on Junior sizes and larger; mechanical for Micro and Mini models), new 2-piece aluminum Chase cranksets with a 24mm axle (Expert XL and larger), optimized crank arm ratios and lengths, a two-tone paint scheme with new graphics, and closed dropouts with an integrated chain tensioning system. The BMX frame CHASE Edge is made from triple-butted hydroformed 6061 aluminum tubing and features an integrated head tube.

Other features of this BMX Racing bike include a 4130 chromoly steel fork and handlebars (on the Micro model), Ikon carbon fork options in two colors, double-walled rims, a cassette rear hub with a three-pawl engagement system, and Vee Rubber Speedster tires. All of these components make the CHASE Edge is a high-performance BMX Racing bike, perfectly suited for BMX Race and competition.

SPECIFICATIONS
FRAME	Chase Edge Expert 19.75" NEW Top Tube 6061 T6 Alu, Firm Drop Out, 1" Integrated Steering, Undervarnish Stickers
FORK	Ikon Pro Carbon, 1-1/8" Aluminum Head Tube
DIRECTION	Integre IS 42/42 1-1/8" Annular Bearings
HANDLEBAR	Chase Edge Alu Height 5.75", Width 25.5", 8° Back Sweep & 2° Up Sweep
HANDLES	Insight C.O.G.S 130mm Aluminum Rings with Laser Engraved Logo and PVC End Cap
Gallows	Chase Edge 1-1/8" Fork Tube, Diameter 22.2mm, Length 50mm, 6061 T6 Aluminum
HOUSING	Euro Square 113mm Annular Bearings
CROWN	Insight Alu 39 Teeth 5 Points 110mm 1/2"x3/32" 3mm
CRANKSET	Chase Edge 3 Pieces 155mm Aluminum Laser Logo Engraving, Cr-mo Bottom Bracket Screws
PEDALS	Pro Platform 9/16" Polished With Molded Pins, Steel Axle, Ball Bearings
CHAIN	KMC Z1 Narrow 1/2"x3/32"
PINION	16 steel teeth
FRONT HUB	28H, Annular Bearings, 3/8" Screw
REAR HUB	ISO 28H, Annular Bearing, 3/8" Screw, Steel Cassette with 3 Triple Engagement Angle Ratchets for 24T Tooth Sprocket
RAYS	14 Gauge, Steel
HEADS	16mm, 14 Gauge, Steel
FRONT RIM	Chase Edge Alu 451 Double Wall 28H 20"x1-3/8" Presta Valve
REAR RIM	Chase Edge Alu 451 Double Wall 28H 20"x1-3/8" Presta Valve
FRONT TIRE	Vee Rubber SpeedSter 20"x1-3/8" Rigid Rod
REAR TIRE	Vee Rubber SpeedSter 20"x1-3/8" Rigid Rod
ROOMS	20" x 1-3/8" Presta Valve

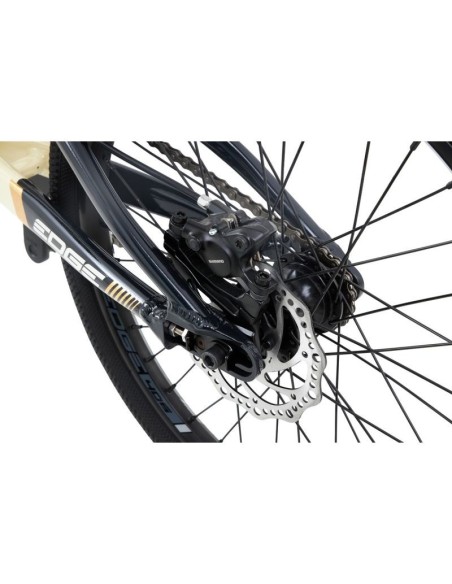

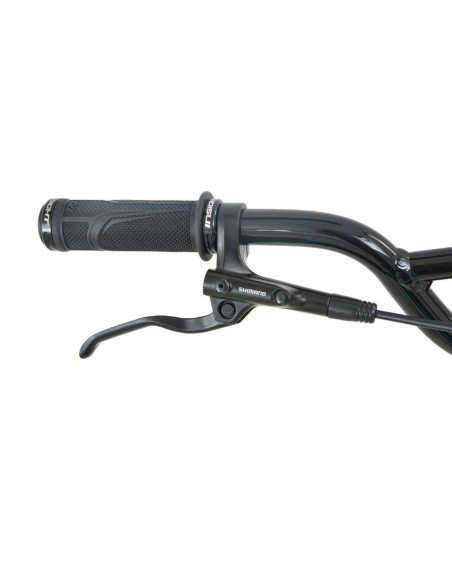

BRAKING	Shimano BL-MT200(R) Hydraulic Disc Lever, 140mm Adapter, with Shimano BR-MT200(R) Hydraulic Disc Caliper, Resin Pads and 140mm Disc

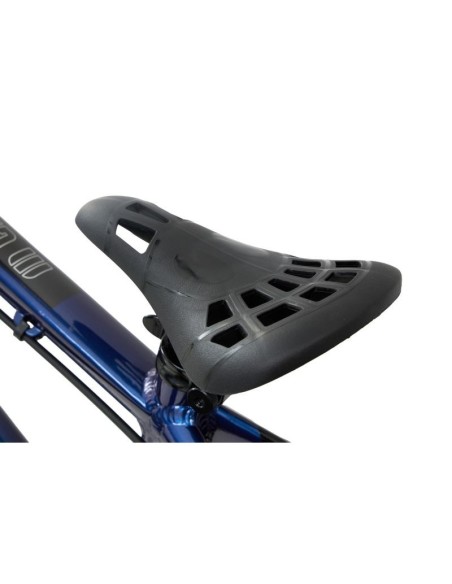

SADDLE	Mini Combo Aluminum Stem/Nylon Saddle
STEM	Mini Combo Aluminum 25.4mm
NECKLACE	Chase Edge Rapid Aluminum 28.6mm
TENSIONER	Integrated Construction with New Disc Lock Adapter



GEOMETRIES
Sizes	TT	CS min	LR	HA	ITS	HT	SPL	BBH	WB	Wheels
Micro	16.25" 412.75 mm	10.85" 275.6 mm	1.8" 46 mm	71°	69°	4" 100 mm	8" 203.5 mm	10.25" 254 mm	732 mm	18x1"
Mini	17.25" 438.15 mm	12.25" 312 mm	1.8" 46 mm	72°	70°	4.33" 110 mm	8.8" 225 mm	10.6" 269.2 mm	800 mm	20x1-1/8"
Junior	18.75" 476.25 mm	12.5" 317.5 mm	1.8" 46 mm	73rd	72°	4.33" 110 mm	8.8" 225 mm	10.6" 269.2 mm	859.9 mm	20x1-1/8"
Expert	19.75" 501.65 mm	13" 330.2 mm	1.8" 46 mm	73rd	72°	4.33" 110 mm	8.8" 225 mm	11" 279.4 mm	883.8 mm	20x1-3/8"
Expert XL	20" 508 mm	13.5" 353 mm	1.8" 46 mm	73rd	72°	4.7" 120 mm	8.8" 225 mm	11.5" 292.1 mm	903 mm	20x1.50"
Pro	20.5" 520.7 mm	14" 355.6 mm	1.8" 46 mm	74°	72°	4.7" 120 mm	9.4" 238 mm	11" 279.4 mm	938 mm	20x1.75"
Pro XL	21" 533.4 mm	14.15" 359.4 mm	1.8" 46 mm	74°	72°	4.7" 120 mm	9.3" 238 mm	11.5" 292.1 mm	945.2 mm	20x1.75"
Pro XXL	21.5" 546.1 mm	14.15" 359.4 mm	1.8" 46 mm	74°	72°	4.7" 120 mm	9.3" 238 mm	11.5" 292.1 mm	969.5 mm	20x1.75"
Cruiser	21.5" 546.1 mm	14.5" 368.3 mm	1.8" 46 mm	74°	71°	4.7" 120 mm	10.6" 270 mm	12" 304.8 mm	964.5 mm	24x1.75"

The specifications of complete bikes are subject to change throughout the year due to parts upgrades or shortages, and modifications made throughout our production cycle to improve the quality of the bikes. The specifications shown in the photo and the list may therefore differ slightly.
