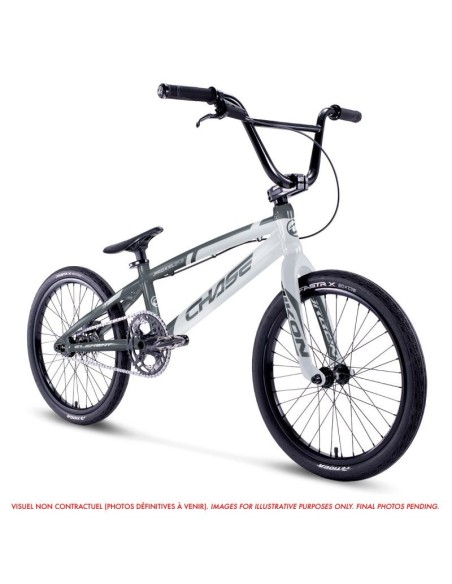

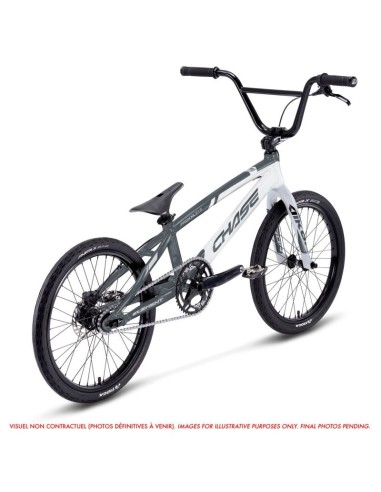

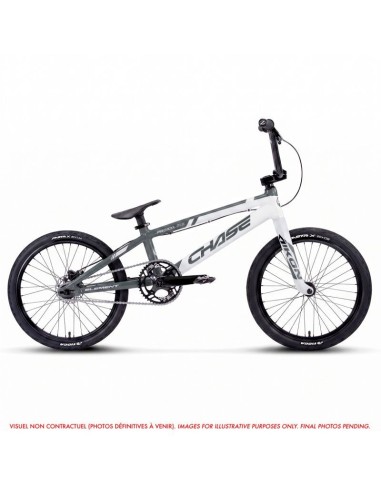

CHASE ELEMENT PRO XXXL Gray Light Gray

CHASE ELEMENT 2027 – The ultimate competitive BMX racing bike

THE Chase Element establishes itself as a complete "Pro" level bike specifically designed for enthusiasts of BMX Racing seeking performance, precision and thrills on the track.

Designed to meet the demands of the most demanding riders, this BMX Race benefits from a modern design and carefully selected components to offer a high-performance, responsive and reliable package. The Chase Element features a modernized frame design, directly inspired by the geometry of our ACT and RSP models, frames that have already proven themselves at the highest level of competition. This race-oriented geometry immediately affirms the Element's sporty character and makes it a true machine designed for BMX racing.

Thanks to the integration of advanced technologies and high-performance components, the Chase Element offers a complete BMX race bike ready to hit the track right away. Its dynamic handling allows you to fully enjoy every pedal stroke and maintain maximum control when the pace picks up on the track.

For over 12 years, Chase has been developing and evolving its complete bikes to meet the specific needs of BMX racing. This new generation of the Chase Element brings together numerous technical solutions developed to offer a complete bike capable of supporting riders in their progression, training, and competitions.

High-end equipment designed for racing

The Chase Element frame is paired with a selection of high-performance components, resulting in a complete, well-rounded, and ready-to-ride BMX racing bike. The front end, in particular, benefits from a carbon fork. IKON Tapered Pro with 20mm axle, designed to provide rigidity, precision and efficiency to the ride.

The bike is also equipped with Element alloy rims, combined with Tioga Fastr tires, offering a package suited to the demands of BMX Race.

The transmission also benefits from components selected for their efficiency and reliability. The Chase Element is equipped with a chain KMC, as well as an ISO cassette hub with sealed bearings benefiting from 72 points of engagement, to enjoy a responsive transmission and excellent response during acceleration phases.

The cockpit features a 31.8 mm diameter handlebar and stem, providing a stiff and precise setup. The bike also comes equipped with an Insight PL4 crankset, complemented by an Insight chainring and shifters.

Finally, the rear braking is handled by a Shimano hydraulic system, combined with a 120 mm disc, allowing the rider to precisely control their speed and approach the different sections of the track with greater control.

With its frame geometry inspired by proven competition models, its carbon fork, its performance-oriented components and its complete equipment, the Chase Element is a complete solution for riders who want to equip themselves with a complete Pro level BMX Racing bike.

The Chase Element concentrates all of Chase's know-how into a complete, modern BMX Race bike resolutely geared towards competition.

SPECIFICATIONS
FRAME	Chase Element Pro XXXL 22" NEW Top Tube 7005 T6 Alu, Tapered Integrated Steering 1-1/8" to 1.5", Firm Drop Out
FORK	Ikon Pro 20" Tapered Carbon, Aluminum Steerer Tube 1-1/8" to 1.5", 20mm Drop Out with 10mm Axle Adapter, Aluminum Top Cap
DIRECTION	Tapered Integre IS 42/52 1-1/8" to 1.5" Annular Bearings
HANDLEBAR	Chase Element Chromo Height 8.5", Diameter 31.8mm, Width 28.5", 10° Back Sweep & 2° Up Sweep
HANDLES	Insight C.O.G.S 145mm Aluminum Rings with Laser Engraved Logo and PVC End Cap
Gallows	Chase Element 1-1/8" Fork Tube, Diameter 31.8mm, Length 53mm 6061 T6 Aluminum CNC Machined Laser Engraved Logo
HOUSING	Press Fit 68/73mm Annular Bearing
CROWN	Insight Alu 44 Teeth 4 Points 104mm 1/2"x3/32" 5mm
CRANKSET	Insight PL4 Pro 2-Piece 175mm Aluminum Crankset, 4-Point Mounting, Integrated Pedal Insert, Chrome Chainring Bolt
PEDALS	Nylon Platform 9/16"
CHAIN	KMC Z1 Narrow 1/2"x3/32"
PINION	16 Teeth
FRONT HUB	36H, Annular Bearings, 3/8" Screw
REAR HUB	ISO 36H, Annular Bearing, 3/8" Screw, Steel Cassette with 3 Triple Engagement Angle Ratchets for 24T Tooth Sprocket
RAYS	14 Gauge, Steel
HEADS	16mm, 14 Gauge, Steel
FRONT RIM	Chase Element Alu 406 Double Wall 36H 20"x1.75" Presta Valve
REAR RIM	Chase Element Alu 406 Double Wall 36H 20"x1.75" Presta Valve
FRONT TIRE	Tioga Fastr X 20"x1.75" 60 TPI Rigid Triangle
REAR TIRE	Tioga Fastr X 20"x1.60" 60 TPI Rigid Triangle
ROOMS	20" x 1.5" - 1.75" Presta Valve
BRAKING	Shimano BL-MT200(R) Hydraulic Disc Brake, 120mm Disc
SADDLE	Elevn PC Pivotal
STEM	Chase Alu Aero Pivotal 27.2x260mm
NECKLACE	Chase Aero Rapide Alu 31.8mm Laser Logo Engraving
TENSIONER	Integrated Construction with New Disc Lock Adapter

The assembly with Shimano XT pedals is for photographic purposes only. The bikes are delivered with nylon pedals.

GEOMETRIES
Sizes	TT	CS min	LR	HA	ITS	HT	SPL	BBH	WB	Wheels
Expert	20" 508 mm	13.5" 342.9 mm	1.5" 38.1 mm	73rd	70°	4.7" 120 mm	9.2" 236 mm	11" 279.4 mm	900.68 mm	20x1-3/8"
Pro	20.5" 520.7 mm	14.25" 362 mm	1.5" 38.1 mm	74°	72.5°	4.7" 120 mm	9.2" 236 mm	11.5" 292.1 mm	940.46 mm	20x1.5"
Pro XL	21" 533.4 mm	14.3" 363.3 mm	1.5" 38.1 mm	74°	72.5°	4.7" 120 mm	9.2" 236 mm	11.5" 292.1 mm	955.10 mm	20x1.75"
Pro XXL	21.5" 546.1 mm	14.5" 368.3 mm	1.5" 38.1 mm	74°	72.5°	4.7" 120 mm	9.2" 236 mm	11.5" 292.1 mm	973.39 mm	20x1.75"
Pro XXXL	22" 558.8 mm	14.5" 368.3 mm	1.5" 38.1 mm	74°	72.5°	4.7" 120 mm	9.2" 236 mm	11.5" 292.1 mm	993.01 mm	20x1.75"
Pro Cruiser	21.5" 546.1 mm	15.25" 387.3 mm	1.5" 38.1 mm	73rd	69.5°	4.7" 120 mm	9.8" 250 mm	12" 304.8 mm	973.65 mm	24x1.75"
Pro+ Cruiser	22" 558.8 mm	15.25" 387.3 mm	1.5" 38.1 mm	73rd	69.5°	4.7" 120 mm	9.8" 250 mm	12" 304.8 mm	987.67 mm	24x1.75"

The specifications of complete bikes are subject to change throughout the year due to parts upgrades or shortages, and modifications made throughout our production cycle to improve the quality of the bikes. The specifications shown in the photo and the list may therefore differ slightly.
