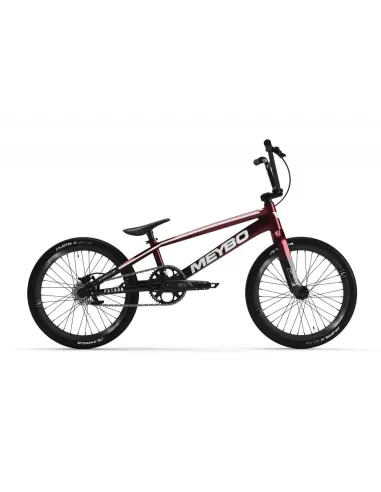

Bmx Meybo Patron Expert Red/Black/White

MEYBO PATRON 2025

Discover the new Meybo Patron 2025, a complete premium BMX Race bike designed for performance use.

This year, the Patron incorporates several new features, notably a Meybo HSX Alu frame, replacing the Meybo Holeshot frame found on the 2024 model, and an SD Carbon V2 fork. Otherwise, it retains its numerous high-end components selected for their responsiveness and reliability: a Shimano MT501 braking system, Tioga Fastr-X tires, and many other parts designed for high-level BMX racing.

The Patron range is designed to adapt to each rider's body shape. Depending on the bike size, each component is carefully chosen to offer riders the best possible riding experience.

As you've probably gathered, the Boss is ready for competition. It's the ideal weapon to conquer the most demanding tracks on the world circuit and beat the clock.

SPECIFICATIONS:

• Frame: Meybo HSX Alu Expert
• Fork: SD Carbon V2 1-1/8" 10mm
• Headset: FSA Sealed Bearings Fully Integrated 1-1/8”
• Handlebars: SD Aluminium Expert
• Stem: SD 100% CNC machined 1-1/8” - 50mm
• Grips: SD - Lock on 130mm
• Brake kit: Shimano MT501 - Hydraulic Brake
• Front Hub: SD Ace Expert - 36H - 8mm Bolts
• Rear Hub: SD Ace HSX 15mm 36H - 6 pawls - 180 points of engagement
• Rims: SD M83 20x 1"-3/8 Carbon - 25mm
• Tires: Tioga Fastr-X - 20x1-3/8"
• Crankset: SD expert 4-lite - 4-bolt - 160mm
• Pedals: Wellgo B-219 - Sealed Bearings - CNC Machined Platform
• Bottom bracket: SD hollow EB24 - 24mm - Euro/BSA
• Crown: SD - CNC Aluminum 6061 - 4 Points - 39D - Black
• Pinion: 16T
• Chain: KMC K1 3/32 Silver/Black
• Chain tensioners: Integrated
• Saddle: Box Two mini - 25.4mm
• Seat clamp: SD QR - 28.6mm

• GEOMETRY - FRAME

• Top Tube: 19.69"
• Down Tube: 20.87"
• Rear chainstay length: 13.58"
• Steering column angle): 73.5°
• Seat tube angle: 71°
• Steering column diameter): 1-1/8"
• Seat tube diameter: 25.4mm
• Frame lug diameter: 15mm
• Bottom bracket: EURO /BSA
• Disc compatible only
