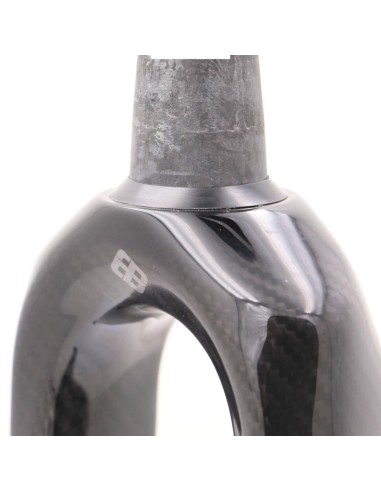

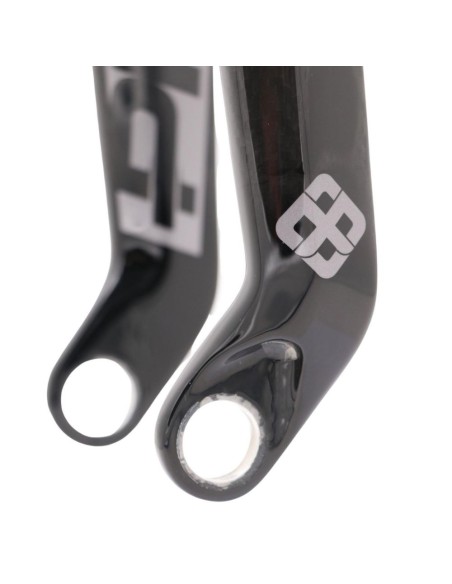

PRIDE MATRIX TAPERED 24" FORK
With its glossy/matte finish, the new Pride Matrix fork boasts a clean and elegant design. It is composed of two distinct parts. The legs are made of 100% Torray® HM carbon combined with an internal polymer (PMI) structure, which increases the overall stiffness and strength. It utilizes different types of carbon fibers, chosen for their specific properties, to best manage various types of loads in the areas where they occur, such as lateral loads, torsion, and impacts. Its steerer tube is made of 7075-T6 aluminum, an alloy renowned for its high strength. This characteristic ensures not only excellent structural rigidity but also increased durability.
Compliant with EN 16054 standard.
FEATURES
- Material: Torray Carbon / 7075 Aluminum
- Wheel size: 24"
- Axle: 20mm (not included)
- Pivot diameter: Tapered 1"-1/8" - 1.5"
- Pivot length: 165mm
- Fork height: 357mm
- Offset: 30mm
- Leg thickness: 8mm
- Compression screw: M22x1.5mm
- Compression screw length: 20mm
- Weight: 639g (with compression screw)
TIGHTENING TORQUES
IMPORTANT: Always use a torque wrench
- Compression screw tightening: 3 Nm (Max)
- Stem bolt tightening: 10 Nm (Max)
- Hub axle tightening: 8 Nm (Max)
IMPORTANT NOTES
This fork was designed and created for BMX racing only. It meets EN and CPSC safety requirements.
Compliant with EN 16054 standard.
It is always the buyer's responsibility to know their own limitations and how to maintain a high-end, 100% carbon fork. We cannot design carbon fiber capable of absorbing a major impact. After a fall or collision, please thoroughly inspect your fork. If you suspect any damage, it is YOUR responsibility to have your fork's integrity assessed by a professional.
Always respect the tightening torques. Use a split bearing bushing if possible.
Type
Carbon
FOPR2271
