Pair of Onyx SOLID 20mm Ultra SS 36H Coffee Ground Hubs
Out-of-Stock
€949.95
VAT included
This purchase earns you €57.00 in rewards, which you can convert into a voucher to use on your next order.
Shipping in 24/72hFrance & Europe
Pay in 2× / 3×secured with Alma
Expert adviceat your service
Satisfied or refunded14-day returns

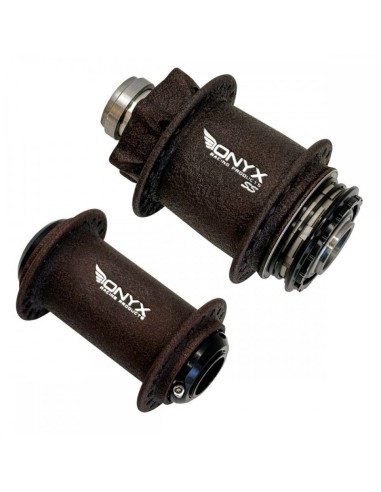

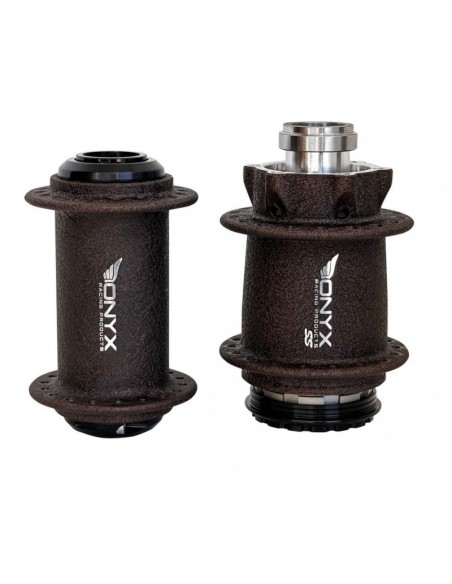

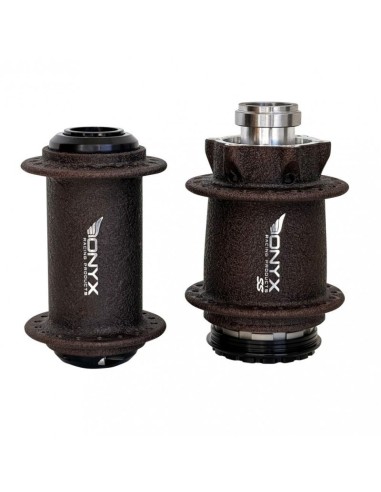

Pair of Onyx SOLID hubs FRONT 20mm / Ultra SS REAR 20mm 36H Coffee Ground
Limited edition colour of ONYX Coffee Ground.
Onyx Racing Products.
The top-of-the-line BMX Racing hubs.
Hybrid ceramic bearings reduce the rolling resistance of the front wheel.
Onyx hubs instantly transfer power from your pedals to the rear wheel of your bike for faster acceleration and more control.

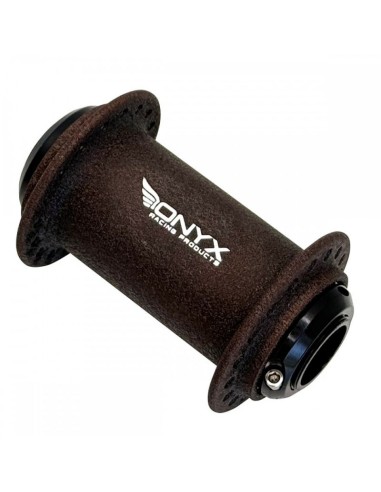

FRONT: ONYX SOLID 100/20 mm 36 holes
- CNC machined 7075-T6 aluminum body
- Sealed hybrid-ceramic bearings
- Aluminum axle body
- Axle diameter: 20mm through
- Width: 100mm
- Drilling: 36 holes
- Weight: 252g

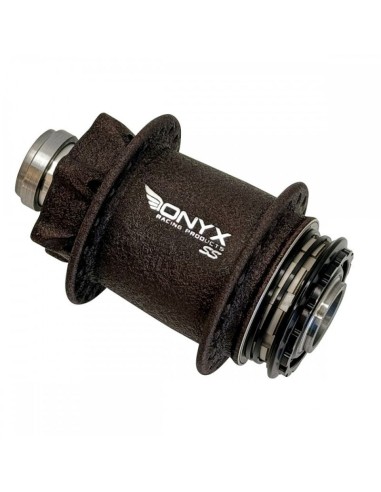

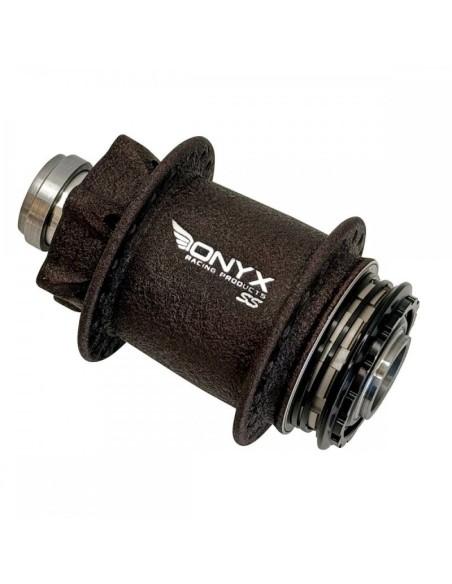

REAR: ONYX ULTRA SS ISO OX 110/20MM THRU 36 holes
- CNC machined 7075-T6 aluminum body
- Sealed hybrid-ceramic bearings
- ISO disc holder with 6 screws
- Standard aluminum freehub body ONYX SS
- Instant engagement ONYX
- Aluminum axle body
- Axle diameter: 20mm through
- Width: 110mm
- Drilling: 36 holes
- Weight: 575g
SOLD WITHOUT PINION!
SOLD WITHOUT 20MM THROUGH AXLE!
ONYX hubs require regular maintenance to ensure optimal performance.
| A - Center width at flange, non-cassette side | 34.8mm |
|---|---|
| B - Center width at flange, cassette side | 34.8mm |
| C - Axle width | 100mm |
| Flange diameter, cassette side | 50mm |
| Flange diameter, non-cassette side | 50mm |
| Number of holes | 36 |
| Radius tension | 120kgf Max |
The ONYX Ultra SS hub series is designed around powerful riders. An extra-large bearing and engagement system can handle the highest output torques you can muster. This model is compatible with all standard 10mm to 20mm thru-axles. It is available with 36 spokes and is designed exclusively for Ultra SS sprockets. A disc brake option with an ISO mount is available.
| A - Center width at flange, non-cassette side | 20.14mm |
|---|---|
| B - Center width at flange, cassette side | 33.23mm |
| C - Axle width | 110mm |
| Flange diameter, cassette side | 60mm |
| Flange diameter, non-cassette side | 60mm |
| Number of holes | 36 |
| Radius tension | 120kgf Max |
Modèle
Pair
Perçage
36 holes
ONYHUBS336
