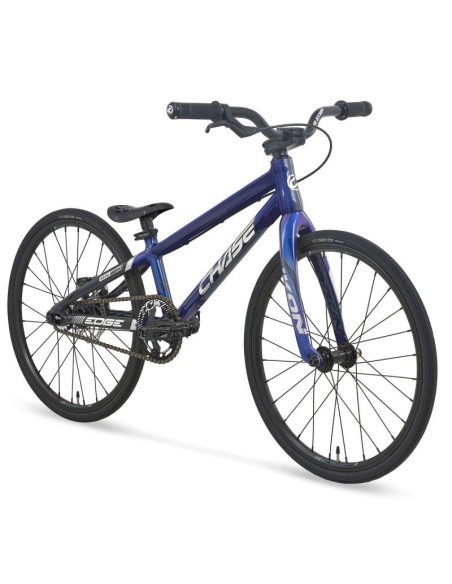

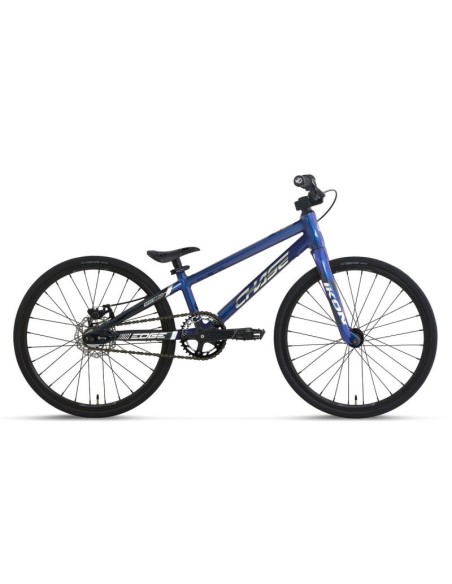

CHASE EDGE IKON MINI Golden Sand
The all-new CHASE Edge is a competition-ready BMX Racing bike , ideal for riders looking to get serious and progress their BMX Race riding .
BMX CHASE EDGE ikon 2027
The brand new CHASE Edge is a BMX Racing Ready for competition, ideal for drivers looking to get serious and improve their driving skills. BMX Race.
Already renowned for its refined design, the new Edge has been further improved: it now features Shimano hydraulic disc brakes (on Junior sizes and larger; mechanical for Micro and Mini models), new 2-piece aluminum Chase cranksets with a 24mm axle (Expert XL and larger), optimized crank arm ratios and lengths, a two-tone paint scheme with new graphics, and closed dropouts with an integrated chain tensioning system. The BMX frame CHASE Edge is made from triple-butted hydroformed 6061 aluminum tubing and features an integrated head tube.
Other features of this BMX Racing bike include a 4130 chromoly steel fork and handlebars (on the Micro model), Ikon carbon fork options in two colors, double-walled rims, a cassette rear hub with a three-pawl engagement system, and Vee Rubber Speedster tires. All of these components make the CHASE Edge is a high-performance BMX Racing bike, perfectly suited for BMX Race and competition.
FEATURES :
- FRAME: Chase Edge Mini, 17.25" 6061 T6 alloy top tube, closed rear dropouts
- FORK: Ikon Mini/Junior 100% carbon, 1" steerer
- STEM: Chase Edge 40mm Alu
- HANDLEBAR: Chase Edge 2.25″ Aluminum
- HEADSET: Integrated, sealed bearings
- SPROCKET: Insight 36 teeth, 5 holes, 110 mm center distance, 1/2" x 3/32", 3 mm thickness, Aluminum
- CRANKSET: Chase Edge 3-piece, 140mm aluminum cranks with laser-engraved logo, Cr-mo chainring bolts
- HUBS: 28 holes, sealed bearings, 3/8" bolt-on axle (front); ISO 28 holes, sealed bearings, 3/8" bolt-on axle, steel cassette body with 3 triple-angle engagement pawls for 24-tooth sprocket (rear)
- RIMS: Chase Edge Aluminum 451 double wall 20"x1-1/8", Presta valve, 28 holes (front and rear)
- TIRES: Vee Rubber SpeedSter 20"x1-1/8", rigid beads
- BRAKES: Adapter for 140 mm disc, mechanical disc brake caliper and 140 mm disc
RECOMMENDED SIZE: 1.10m – 1.25m
WEIGHT 7.59 kg without pedals
| SPECIFICATIONS | |
|
FRAME
|
Chase Edge Mini 17.25" NEW Top Tube 6061 T6 Aluminum, Firm Drop Out, Integrated 1" Steering, Stickers Under Clear Coat |
|
FORK
|
Ikon Mini/Junior Full Carbon, 1" Head Tube |
|
DIRECTION
|
Integre IS 42/42 1" Gearbox with Annular Bearings |
|
HANDLEBAR
|
Chase Edge Alu Height 2.25", Width 20", 8° Back Sweep & 2° Up Sweep |
|
HANDLES
|
Insight C.O.G.S 115mm Aluminum Rings with Laser Engraved Logo and PVC End Cap |
|
Gallows
|
Chase Edge 1" Fork Tube, Diameter 22.2mm, Length 40mm, 6061 T6 Aluminum |
|
HOUSING
|
Euro Square 113mm Annular Bearings |
|
CROWN
|
Insight Alu 36 Teeth 5 Points 110mm 1/2"x3/32" 3mm |
|
CRANKSET
|
Chase Edge 3 Pieces 140mm Aluminum Laser Logo Engraving, Cr-mo Bottom Bracket Screws |
|
PEDALS
|
Mini 9/16" Polished Platform with Molded Pins, Steel Axle, Ball Bearings |
|
CHAIN
|
KMC Z1 Narrow 1/2"x3/32" |
|
PINION
|
16 steel teeth |
|
FRONT HUB
|
28H, Annular Bearings, 3/8" Screw |
|
REAR HUB
|
ISO 28H, Annular Bearing, 3/8" Screw, Steel Cassette with 3 Triple Engagement Angle Ratchets for 24T Tooth Sprocket |
|
RAYS
|
14 Gauge, Steel |
|
HEADS
|
16mm, 14 Gauge, Steel |
|
FRONT RIM
|
Chase Edge Alu 451 Double Wall 24H 20"x1-1/8" Presta Valve |
|
REAR RIM
|
Chase Edge Alu 451 Double Wall 24H 20"x1-1/8" Presta Valve |
|
FRONT TIRE
|
Vee Rubber SpeedSter 20"x1-1/8" Rigid Rod |
|
REAR TIRE
|
Vee Rubber SpeedSter 20"x1-1/8" Rigid Rod |
|
ROOMS
|
20" x 1-1/8" Presta Valve |
| BRAKING | Aluminum Micro/Mini Lever, 140mm Adapter, with Mechanical Caliper and 140mm Disc |
| SADDLE | Mini Combo Aluminum Stem/Nylon Saddle |
| STEM | Mini Combo Aluminum 25.4mm |
| NECKLACE | Chase Edge Rapid Aluminum 28.6mm |
| TENSIONER | Integrated Construction with New Disc Lock Adapter |
| GEOMETRIES | ||||||||||
![]() |
||||||||||
| Sizes | TT | CS min | LR | HA | ITS | HT | SPL | BBH | WB | Wheels |
| Micro | 16.25" 412.75 mm |
10.85" 275.6 mm |
1.8" 46 mm |
71° | 69° | 4" 100 mm |
8" 203.5 mm |
10.25" 254 mm |
732 mm | 18x1" |
| Mini | 17.25" 438.15 mm |
12.25" 312 mm |
1.8" 46 mm |
72° | 70° | 4.33" 110 mm |
8.8" 225 mm |
10.6" 269.2 mm |
800 mm | 20x1-1/8" |
| Junior | 18.75" 476.25 mm |
12.5" 317.5 mm |
1.8" 46 mm |
73rd | 72° | 4.33" 110 mm |
8.8" 225 mm |
10.6" 269.2 mm |
859.9 mm | 20x1-1/8" |
| Expert | 19.75" 501.65 mm |
13" 330.2 mm |
1.8" 46 mm |
73rd | 72° | 4.33" 110 mm |
8.8" 225 mm |
11" 279.4 mm |
883.8 mm | 20x1-3/8" |
| Expert XL | 20" 508 mm |
13.5" 353 mm |
1.8" 46 mm |
73rd | 72° | 4.7" 120 mm |
8.8" 225 mm |
11.5" 292.1 mm |
903 mm | 20x1.50" |
| Pro | 20.5" 520.7 mm |
14" 355.6 mm |
1.8" 46 mm |
74° | 72° | 4.7" 120 mm |
9.4" 238 mm |
11" 279.4 mm |
938 mm | 20x1.75" |
| Pro XL | 21" 533.4 mm |
14.15" 359.4 mm |
1.8" 46 mm |
74° | 72° | 4.7" 120 mm |
9.3" 238 mm |
11.5" 292.1 mm |
945.2 mm | 20x1.75" |
| Pro XXL | 21.5" 546.1 mm |
14.15" 359.4 mm |
1.8" 46 mm |
74° | 72° | 4.7" 120 mm |
9.3" 238 mm |
11.5" 292.1 mm |
969.5 mm | 20x1.75" |
| Cruiser | 21.5" 546.1 mm |
14.5" 368.3 mm |
1.8" 46 mm |
74° | 71° | 4.7" 120 mm |
10.6" 270 mm |
12" 304.8 mm |
964.5 mm | 24x1.75" |
The specifications of complete bikes are subject to change throughout the year due to parts upgrades or shortages, and modifications made throughout our production cycle to improve the quality of the bikes. The specifications shown in the photo and the list may therefore differ slightly.
